Anyone have pics of the top of their 2.2 190d motor,injection pump area?
I replaced a starter and wasnt keeping trac of all the vac lines ,the ones going to the injection pump especially.
|
|
#2
04-19-2013, 12:08 PM
|
||||
|
||||
|
Answer
__________________
ASE Master Mechanic asemastermechanic@juno.com Prototype R&D/testing: Thermal & Aerodynamic System Engineering (TASE) Senior vehicle instrumentation technician. Noise Vibration and Harshness (NVH). Dynamometer. Heat exchanger durability. HV-A/C Climate Control. Vehicle build. Fleet Durability Technical Quality Auditor. Automotive Technical Writer 1985 300SD 1983 300D 1984 190D 2003 Volvo V70 2002 Honda Civic https://www.boldegoist.com/
|
|
#3
04-19-2013, 12:44 PM
|
||||
|
||||
|
There's only three lines to the IP, one for the Idle-raise function, one for the shutoff and one for the transmission modulator.
__________________
-diesel is not just a fuel, its a way of life-  '15 GLK250 Bluetec 118k - mine - (OC-123,800) '17 Metris(VITO!) - 37k - wifes (OC-41k) '09 Sprinter 3500 Winnebago View - 62k (OC - 67k) '13 ML350 Bluetec - 95k - dad's (OC-98k) '01 SL500 - 103k(km) - dad's (OC-110,000km) '16 E400 4matic Sedan - 148k - Brothers (OC-155k)
|
|
#4
04-20-2013, 11:29 AM
|
|||
|
|||
|
Is this correct ,the most forward vac line on the IP is for the shut off,the center is the elevation change mode,then the most rear is the trans?
|
|
#5
04-20-2013, 11:31 AM
|
||||
|
||||
|
Quote:
You can easily test them by hooking a test line to them, suck on it, one will shut it off and one will raise the idle, the one that doesn't do anything is the transmission one.
__________________
-diesel is not just a fuel, its a way of life- '15 GLK250 Bluetec 118k - mine - (OC-123,800) '17 Metris(VITO!) - 37k - wifes (OC-41k) '09 Sprinter 3500 Winnebago View - 62k (OC - 67k) '13 ML350 Bluetec - 95k - dad's (OC-98k) '01 SL500 - 103k(km) - dad's (OC-110,000km) '16 E400 4matic Sedan - 148k - Brothers (OC-155k)
|
|
#6
04-20-2013, 02:57 PM
|
||||
|
||||
|
Answer

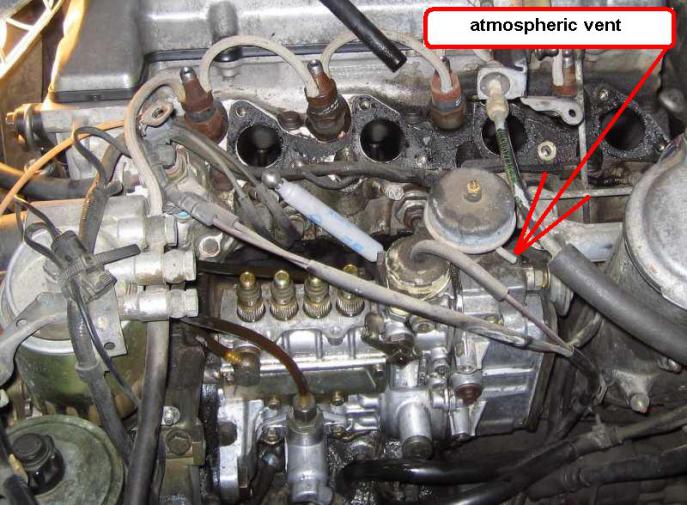

Take a look at these pictures.
