#1
|
|||
|
|||
Seat Diagrams?
My car's front driver seat doesn't adjust recline.
It looks to be rigged to stay in 1 position. I'm trying to figure out how the seat functions. The car was this way when I bought it. The base of the seat functions all work. Thanks . Last edited by whunter; 02-03-2014 at 02:33 PM. Reason: removed add link |
#2
|
|||
|
|||
and what is your car? year, model?
|
#3
|
||||
|
||||
My money's on a W126.
__________________
"Senior Luna, your sense of humor is still loco... but we love it, anyway." -rickymay ____ "Your sense of humor is still loco... " -MBeige ____ "Señor Luna, your sense of humor is quite järjetön" -Delibes 1982 300SD -- 211k, Texas car, tranny issues ____ 1979 240D 4-speed 234k -- turbo and tuned IP, third world taxi hot rod 2 Samuel 12:13: "David said to Nathan, “I have sinned against the Lord.” And Nathan said to David, “The Lord also has put away your sin; you shall not die." |
#4
|
|||
|
|||
My money is on a W124.
__________________
CENSORED due to not family friendly words |
#5
|
|||
|
|||
http://www.peachparts.com/shopforum/diesel-discussion/295403-thread-rules-please-read-before-posting.html
Here is a few guide lines that are helpful. Charlie
__________________
there were three HP ratings on the OM616... 1) Not much power 2) Even less power 3) Not nearly enough power!! 240D w/auto Anyone that thinks a 240D is slow drives too fast. 80 240D Naturally Exasperated, 4-Spd 388k DD 150mph spedo 3:58 Diff We are advised to NOT judge ALL Muslims by the actions of a few lunatics, but we are encouraged to judge ALL gun owners by the actions of a few lunatics. Funny how that works |
#6
|
|||
|
|||
83 300SD
__________________
1983 300SD Turbo |
#7
|
|||
|
|||
Quote:

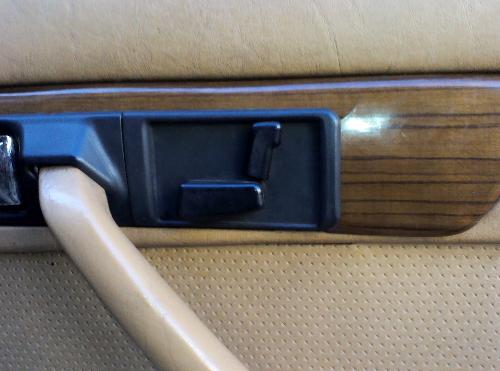

Your driver seat door switches probably failed like mine did. After 31 years, the plastic of the switch posts becomes brittle and they shear in half. A simple fix is to find a self tapping assembly screw from an old broken electronic device (cassette player, etc.) and gently screw it into the remnants of the broken post. I did not do that to mine, as I still have enough of a nub left to activate the switch by moving it with my finger. If rebuilding the broken switch post does not work, you probably have a cut/shorted wire and/or (less likely) a bad seat motor. To change the seat back angle (purple X degrees in the photo), remove the top switch cover that looks like a seat back in profile (if needed) by prying it off gently with a small flat screwdriver blade, and move the top post (circled in red) fore or aft. To pivot the seat keeping the the seat back angle the same, remove the bottom switch cover that looks like a seat cushion in profile (if needed), move the rear post (circled in green) up or down. You can also replace the switch as a unit, with a junk yard part. They are usually broken and on top of that the wires are soldered in place. Hope this helps!
__________________
78 W116 300SD 'Desert Rose' new as of 01/26/2014 79 W116 300SD 'Stormcloud' RIP 04/11/2022 |
#8
|
|||
|
|||
__________________
Sam 84 300SD 350K+ miles ( Blue Belle ) |
