  #1
Old 11-27-2013, 04:54 PM
davidlee's Avatar
davidlee

Join Date: Mar 2012
Location: Portland OR
Posts: 606
my 124 Diesel project, B4, durring and Now pix

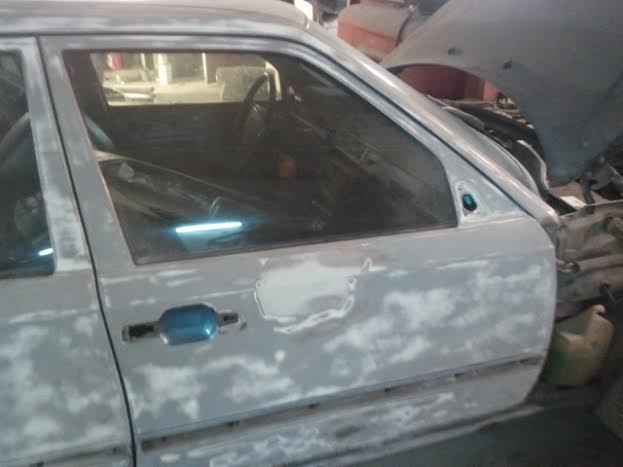

The first 2 pix are of when I first got it, the 3rd is from about a year ago and the last 2 are from yesterday
and I will have more to add of finished product next week, I'm so excited

Click image for larger version

Name:	plates 001.jpg
Views:	165
Size:	69.0 KB
ID:	117087

Click image for larger version

Name:	plates 003.jpg
Views:	171
Size:	65.3 KB
ID:	117088

Click image for larger version

Name:	p15.jpeg
Views:	121
Size:	67.6 KB
ID:	117225

Click image for larger version

Name:	p1.jpg
Views:	125
Size:	19.2 KB
ID:	117226

Click image for larger version

Name:	p2.jpg
Views:	126
Size:	22.9 KB
ID:	117227

__________________
Live simply so others can simply live



07 E350 sport Wife's Daily
01 E320 sport My Daily
00 C230 Kompressor Our back up (new Arrival)

87 300D Turbo my Daily for 8 yrs. Selling to neighbor

82 GMC Jimmy (K5) 6.2 Diesel (my Wheeler)
73 Roadrunner 340ci My very first car, still own it

Last edited by davidlee; 12-05-2013 at 01:41 AM.
Reply With Quote
  #2
Old 11-27-2013, 05:14 PM
jake12tech's Avatar
Registered User

Join Date: Nov 2011
Location: Philadelphia, PA
Posts: 2,878
What was the estimate for the paint job? I'm doing one on my 92 300D next summer. It's been awhile since I've had a car painted (maybe since 1998 or so). That's a rare color by the way. I've never seen that on many 87 300D's I worked on. They were usually Champagne/Burgundy.
__________________
Only diesels in this driveway.
2005 E320 CDI 243k Black/Black
2008 Chevy 3500HD Duramax 340k
2004 Chevy 2500HD Duramax 220k
Reply With Quote
  #3
Old 11-27-2013, 05:20 PM
davidlee's Avatar
davidlee

Join Date: Mar 2012
Location: Portland OR
Posts: 606
here are a few more

Click image for larger version

Name:	p8.jpg
Views:	136
Size:	26.3 KB
ID:	117091

Click image for larger version

Name:	p7.jpg
Views:	119
Size:	22.6 KB
ID:	117092

Click image for larger version

Name:	p5.jpg
Views:	123
Size:	29.2 KB
ID:	117093

Click image for larger version

Name:	p3.jpg
Views:	118
Size:	27.6 KB
ID:	117094

Click image for larger version

Name:	p4.jpg
Views:	126
Size:	23.5 KB
ID:	117095
__________________
Live simply so others can simply live



07 E350 sport Wife's Daily
01 E320 sport My Daily
00 C230 Kompressor Our back up (new Arrival)

87 300D Turbo my Daily for 8 yrs. Selling to neighbor

82 GMC Jimmy (K5) 6.2 Diesel (my Wheeler)
73 Roadrunner 340ci My very first car, still own it
Reply With Quote
  #4
Old 11-27-2013, 05:27 PM
davidlee's Avatar
davidlee

Join Date: Mar 2012
Location: Portland OR
Posts: 606
Quote:
Originally Posted by jake12tech View Post
What was the estimate for the paint job? I'm doing one on my 92 300D next summer. It's been awhile since I've had a car painted (maybe since 1998 or so). That's a rare color by the way. I've never seen that on many 87 300D's I worked on. They were usually Champagne/Burgundy.

Lol... Rare yes, but that's definitely not a factory color you are seeing, I bought it from a person of European nationality that told me he painted it himself a couple years ago. It was in need of a turbo oil seal. Orig it was the light silver blue color with a blue MB tex int. About a year or so ago right before the transmission needed replaced (Lol), my friend was scrapping a 124 with a nice black tex interior so we gutted both cars and put the black in mine. On the subject of paint and body My buddy is doing all the work including buying the good paint and clear for $1700
__________________
Live simply so others can simply live



07 E350 sport Wife's Daily
01 E320 sport My Daily
00 C230 Kompressor Our back up (new Arrival)

87 300D Turbo my Daily for 8 yrs. Selling to neighbor

82 GMC Jimmy (K5) 6.2 Diesel (my Wheeler)
73 Roadrunner 340ci My very first car, still own it

Last edited by davidlee; 11-27-2013 at 05:57 PM.
Reply With Quote
  #5
Old 12-04-2013, 09:04 PM
davidlee's Avatar
davidlee

Join Date: Mar 2012
Location: Portland OR
Posts: 606
ALMOST DONE !!!!!!

This is from a couple days ago, Should have her back by the end of the week.

Click image for larger version

Name:	p9.jpg
Views:	125
Size:	21.3 KB
ID:	117228

Click image for larger version

Name:	p10.jpg
Views:	89
Size:	35.6 KB
ID:	117229

Click image for larger version

Name:	p11.jpg
Views:	118
Size:	28.8 KB
ID:	117230

The interior is actually alright and cleans up pretty good, it's just dusty with no door panels cause of painting and filled with some miscellaneous parts,

Click image for larger version

Name:	p12.jpg
Views:	111
Size:	27.6 KB
ID:	117231
__________________
Live simply so others can simply live



07 E350 sport Wife's Daily
01 E320 sport My Daily
00 C230 Kompressor Our back up (new Arrival)

87 300D Turbo my Daily for 8 yrs. Selling to neighbor

82 GMC Jimmy (K5) 6.2 Diesel (my Wheeler)
73 Roadrunner 340ci My very first car, still own it

Last edited by davidlee; 12-08-2013 at 01:24 AM.
Reply With Quote
  #6
Old 12-04-2013, 09:07 PM
davidlee's Avatar
davidlee

Join Date: Mar 2012
Location: Portland OR
Posts: 606
99% finished

Should be getting it back tomorrow, They are trying to figure out the door locks, I wasnt much help when they asked? Now when you turn the key in the lock there is no resistance and nothing happens.
Attached Thumbnails
my 124 Diesel project, B4 and durring pix-p13.jpg   my 124 Diesel project, B4 and durring pix-p14.jpg
__________________
Live simply so others can simply live



07 E350 sport Wife's Daily
01 E320 sport My Daily
00 C230 Kompressor Our back up (new Arrival)

87 300D Turbo my Daily for 8 yrs. Selling to neighbor

82 GMC Jimmy (K5) 6.2 Diesel (my Wheeler)
73 Roadrunner 340ci My very first car, still own it
Reply With Quote
  #7
Old 12-06-2013, 07:29 PM
davidlee's Avatar
davidlee

Join Date: Mar 2012
Location: Portland OR
Posts: 606

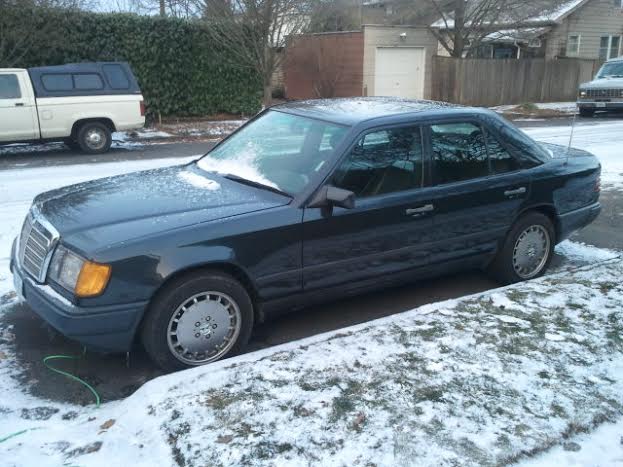

And Today Friday

Got it back yesterday eve, It started snowing around 5 am today, very little only about 1/4 - 1/2 inch depending on what side of town your on, but it has been under freezing for the last few days so nothing is melting on contact it instantly covered the road, No driving that today. What do you think of my 91 fender????
P.S. they were able to get the locks sorted out.

Click image for larger version

Name:	c1.jpg
Views:	96
Size:	43.2 KB
ID:	117281

Click image for larger version

Name:	c2.jpg
Views:	131
Size:	47.4 KB
ID:	117282

Click image for larger version

Name:	c3.jpg
Views:	113
Size:	48.7 KB
ID:	117283

Click image for larger version

Name:	c4.jpg
Views:	133
Size:	39.8 KB
ID:	117284
__________________
Live simply so others can simply live



07 E350 sport Wife's Daily
01 E320 sport My Daily
00 C230 Kompressor Our back up (new Arrival)

87 300D Turbo my Daily for 8 yrs. Selling to neighbor

82 GMC Jimmy (K5) 6.2 Diesel (my Wheeler)
73 Roadrunner 340ci My very first car, still own it

Last edited by davidlee; 12-08-2013 at 01:26 AM.
Reply With Quote
  #8
Old 12-06-2013, 07:42 PM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: Eastern TN
Posts: 20,841
Looks lonely for Euro headlights.

Sixto
87 300D
Reply With Quote
  #9
Old 12-06-2013, 09:14 PM
davidlee's Avatar
davidlee

Join Date: Mar 2012
Location: Portland OR
Posts: 606
Quote:
Originally Posted by sixto View Post
Looks lonely for Euro headlights.

Sixto
87 300D
they are on the way, found a set of real Bosch Euro lights on Ebay for $195 shipped, and they even came with Euro corner lamps, and I also picked up the Euro style wiper arms, I already have the wiper motors which I had to swap in 94 95 wiper transmission links into,to make them swipe all the way across the light. because the North American ones only have about two thirds of the reach. and you also have to swap the motors from side to side since the rotation is opposite from Euro to N/A, once I get them and I will be going back down to the body shop for them to drill the holes needed for fitment
__________________
Live simply so others can simply live



07 E350 sport Wife's Daily
01 E320 sport My Daily
00 C230 Kompressor Our back up (new Arrival)

87 300D Turbo my Daily for 8 yrs. Selling to neighbor

82 GMC Jimmy (K5) 6.2 Diesel (my Wheeler)
73 Roadrunner 340ci My very first car, still own it

Last edited by davidlee; 12-07-2013 at 06:48 AM.
Reply With Quote
  #10
Old 12-06-2013, 09:43 PM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: Eastern TN
Posts: 20,841
Valence panels with holes from a 94-95 124 don't cost that much new and come ready to paint. Used ones should cost next to nothing. Does your shop have a way to cut clean square holes for the squirters?

Sixto
87 300D
Reply With Quote
  #11
Old 12-07-2013, 06:53 AM
davidlee's Avatar
davidlee

Join Date: Mar 2012
Location: Portland OR
Posts: 606
Quote:
Originally Posted by sixto View Post
Valence panels with holes from a 94-95 124 don't cost that much new and come ready to paint. Used ones should cost next to nothing. Does your shop have a way to cut clean square holes for the squirters?

Sixto
87 300D


Good call on the squirters, Im not sure about that, probably though.
Ill have to check. Just for the heck of it Ill also get a price on the 94-95 valences.
__________________
Live simply so others can simply live



07 E350 sport Wife's Daily
01 E320 sport My Daily
00 C230 Kompressor Our back up (new Arrival)

87 300D Turbo my Daily for 8 yrs. Selling to neighbor

82 GMC Jimmy (K5) 6.2 Diesel (my Wheeler)
73 Roadrunner 340ci My very first car, still own it
Reply With Quote
  #12
Old 12-07-2013, 06:53 AM
ngarover's Avatar
Registered User

Join Date: Oct 2010
Location: Northern Georgia
Posts: 1,964
Quote:
Originally Posted by jake12tech View Post
What was the estimate for the paint job? I'm doing one on my 92 300D next summer. It's been awhile since I've had a car painted (maybe since 1998 or so). That's a rare color by the way. I've never seen that on many 87 300D's I worked on. They were usually Champagne/Burgundy.
depends on how good a paint job you want. I just painted my 87 a couple weeks ago. 700 bucks. But prices was higher due to also shooting the door jams and under the lids cause I did a slight color change, (dark grey to black) They also had to fix a couple dents and reshape a quarter panel.

The paint job will be as good as your prep at these types of places. I prestrip the entire car and take it to them basically ready to tape and paint. Then I put it all back together myself. That step cost most than the actual painting does.

Keeping same color, the price would have been about 400.

Results...

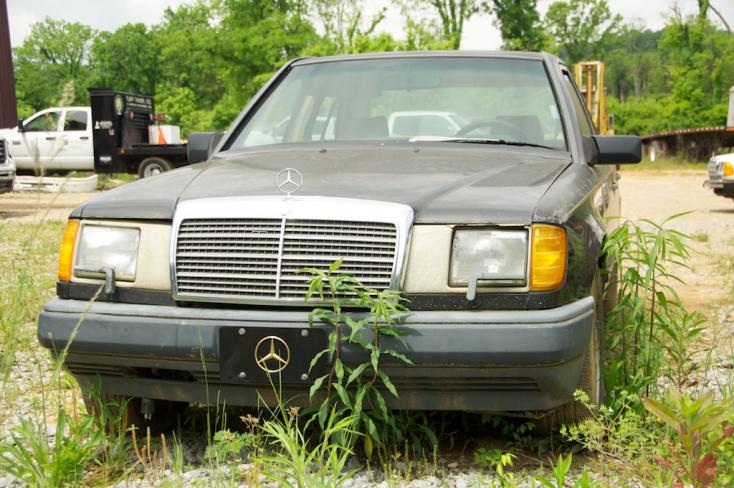

Before




After



Another...



2 paint jobs later... (PO had it painted and was in a wreak right after then I did it again...)

Reply With Quote
  #13
Old 12-07-2013, 07:06 AM
ngarover's Avatar
Registered User

Join Date: Oct 2010
Location: Northern Georgia
Posts: 1,964
Quote:
Originally Posted by davidlee View Post
Good call on the squirters, Im not sure about that, probably though.
Ill have to check. Just for the heck of it Ill also get a price on the 94-95 valences.
In my adding the 94 body panels I found a few issues other than the square holes. (which you don't have to change) First. on the square holes, the current round ones will work just fine, I used a little tap for a hammer and the (grommets?) went right in. Of course, they will spin when you try to put the screws in later, but nothing you can't stop using a long flat screw driver while your tightening down the molding trim screws.

The front fenders of the 94 and the 87 are a little different. the 94's lip is not as deep so the moldings tab can go around it to hold it secure... Fit, cut the molding and find another way to make it hold down or cut the fender. (think a little layer of Butyl tape to secure that area... crap holds down your windshield, we use it at work to secure screen protector over LCD monitors and you have to use a pry bar to remove them later...They make the stuff as a roll or as a paste, don't get it on your hands as it's real pain to get off, alcohol wipes seem to be best) Your body shop would most likely just give you some if you ask.

The holes on the ends do not line up correctly so your going to have to drill a few new ones, (you'll see once you get into it)

The mounting is different enough on those ends that you will have to cut out where the clips hold in the molding( the little rectangular holds in the molding itself that the clips clip into) Else the clips can't clip. again, you'll see what I mean if you do this. It took a little trial and error on my part but eventually I got them all on.

Don't for get you need the little plastic mounts... I got mine here...

SET CLIPS FOR MERCEDES W124 SIDE MOULDING REAR FENDER TRIM | eBay

SET CLIPS FOR MERCEDES W124 SIDE MOULDING FRONT FENDER TRIM | eBay

25 Mercedes Rocker Panel Moulding Screw Grommets 000 988 86 25 | eBay

You will need a handful of sheet metal screws also. 8mm heads. I used all the ones from my parts car, which is why they are not listed here.

Oh, and normally I buy all my parts right here, but in this case, after spending a couple hours just trying to locate the correct clips... and then seeing the sticker shock.. this was the only real alternative.

Last edited by ngarover; 12-07-2013 at 07:23 AM.
Reply With Quote
  #14
Old 12-08-2013, 12:55 AM
davidlee's Avatar
davidlee

Join Date: Mar 2012
Location: Portland OR
Posts: 606
Ill probably just end up using the headlight panels I have now, My car came orig with wipers on the lights, but 87 American lights and wipers are diff.
The Euro models share the same wiper lay out as the 94-95 models, yet the headlight glass and lower moulding are diff on all 94-95 models because of the restyled hood grille, You see, before I damaged the front end I had Euro lights and euro wipers installed and fully functional, but never switched out the panels, I just drilled an extra hole in them for the euro mounting position of the arms. I figured now that its all new and painted I would start with a clean pallet ie. no extra holes, I found these wiper delete panels on a 260E in the wrecking yard, but my Euro lights are not here yet (on their way from Deutschland ) so I have not drilled any holes yet either.
__________________
Live simply so others can simply live



07 E350 sport Wife's Daily
01 E320 sport My Daily
00 C230 Kompressor Our back up (new Arrival)

87 300D Turbo my Daily for 8 yrs. Selling to neighbor

82 GMC Jimmy (K5) 6.2 Diesel (my Wheeler)
73 Roadrunner 340ci My very first car, still own it

Last edited by davidlee; 12-08-2013 at 01:33 AM.
Reply With Quote
  #15
Old 12-08-2013, 01:06 AM
davidlee's Avatar
davidlee

Join Date: Mar 2012
Location: Portland OR
Posts: 606
NGAROVER, your cars are really nice, I saw your post about all the work you have done to your 87, Kudos, you dove way deeper than I would ever attempt, If I tried to do the job you completed I would have broke half the stuff by the end of it and the other half wouldn't have worked
now that your car is all updated and facelifted, you need to update the wheels as well, the old wheels take away from the end result you have worked so hard for, IMO.

Click image for larger version

Name:	wheel.jpg
Views:	96
Size:	52.8 KB
ID:	117337

I noticed that the on the wagon, you removed the roof rack, you didn't like it? personally I like the racks and I also like the orig. yellow fog lights better too
Very nice job on the wheel refinish, they look new again, hell, the whole car looks new, what a transformation. wow!!!!

__________________
Live simply so others can simply live



07 E350 sport Wife's Daily
01 E320 sport My Daily
00 C230 Kompressor Our back up (new Arrival)

87 300D Turbo my Daily for 8 yrs. Selling to neighbor

82 GMC Jimmy (K5) 6.2 Diesel (my Wheeler)
73 Roadrunner 340ci My very first car, still own it

Last edited by davidlee; 12-08-2013 at 01:18 AM.
Reply With Quote
Reply

Bookmarks

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On




All times are GMT -4. The time now is 10:54 AM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2024, vBulletin Solutions, Inc.
Search Engine Optimization by vBSEO 3.6.0
Copyright 2024 Pelican Parts, LLC - Posts may be archived for display on the Peach Parts or Pelican Parts Website -    DMCA Registered Agent Contact Page
