#1
|
|||
|
|||
606 oil cooler

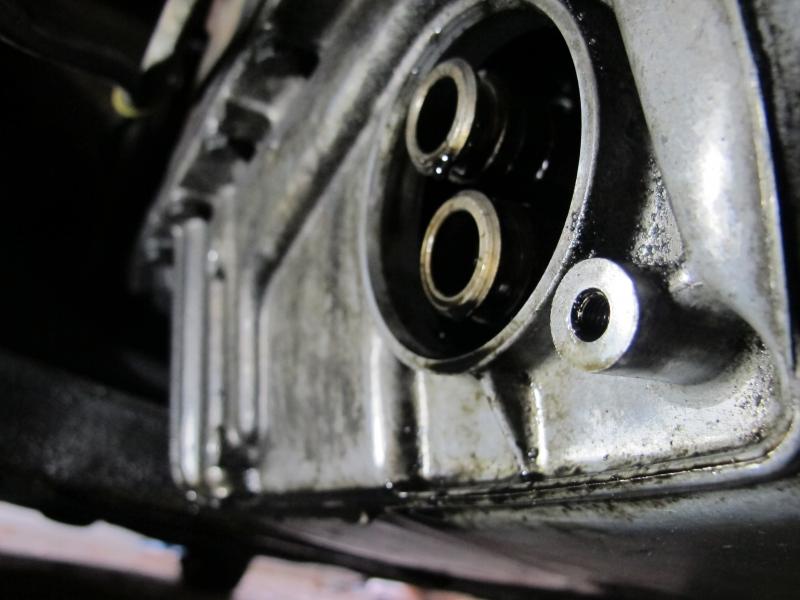

Had a pretty good oil leak coming from the oil cooler. I removed 4 bolts at the oil pan and one at the water pump. Wiggled everything until it came loose. I took a little bit of a coolant bath, but the catch pan was nearby. The big o-ring is pretty flat. The o-rings on the oil tubes inside the oil pan are greenish and still in good shape. Anyone know what they're made of? Napa and Olympic Auto looked at me as if these o-rings were from the space shuttle. I didn't find any threads here about changing the oil cooler or replacing o-rings so I thought these photos may help.
Update... The Pelican Parts guy was barely and reluctantly helpful when I called. He sounded annoyed. I coreced him into providing the part number for the large o-ring, but he really couldn't be bothered. Phil would have been just fine helping me find inexpensive, hard-to-find, MB parts. RIP Phil. American Service Center parts guy Cesar found all of the o-rings.
__________________
2009 E320 Bluetec 117,000 1995 E300D 306,000 Sold 1996 Ford Taurus LX 130,000 Sold 1985 300TD Still 225,000 Sold 2016 Ford Fusion 24,900 Last edited by connerm; 04-11-2014 at 10:10 AM. |
#2
|
||||
|
||||
I did my OM606 oiler cooler (99 Turbo, similar though). Get the o-rings from the dealer. I didn't have luck anywhere else unfortunately. I'm just happy the o-rings weren't as expensive as when I do a C36 AMG oil cooler. Did you have oil in your coolant? I didn't see it mentioned, but I am still curious anyway. I had oil in my coolant, but not vice versa. I thought it was a head gasket but was just the oil cooler luckily.
|
#3
|
||||
|
||||
Green is one of the Colors that Viton is made in although they are ususally Brown.
At Autozone have seen Green O-rings in a bubble Pack with some fittings in the same Bubble Plack for Air Conditioning. Don't know if that means because they are green they are made of the same Material as the Mercedes ones are. Apparently the Oil Coolers on the 606 Engines vary with year and Car model. That could be the reason for a lack of Threads about them. Since you may be the firs and already have some pics posted if you put in some more details they could Put your thread in the DIY section.
__________________
84 300D, 82 Volvo 244Gl Diesel |
#4
|
||||
|
||||
Thanks for the pictures -- haven't seen this part of the engine before. The '96-97 version of the OM606NA engine have the cooler on the other (left) side. This is one of the things that makes the 606.910 / '95 E300 unique. Mercedes uses green o-rings in a number of locations that see no fluids at all, such as in the air intake crossover pipe. How special they are I cannot tell -- maybe it's just what the low bidder happens to use.
__________________
"Buster" in the '95 Our all-Diesel family 1996 E300D (W210) . .338,000 miles Wife's car 2005 E320 CDI . . 113,000 miles My car Santa Rosa population 176,762 (2022) Total. . . . . . . . . . . . 627,762 "Oh lord won't you buy me a Mercedes Benz." -- Janis Joplin, October 1, 1970 |
#5
|
|||
|
|||
Part number help please
I found part numbers for some of the o-rings I need for the job.

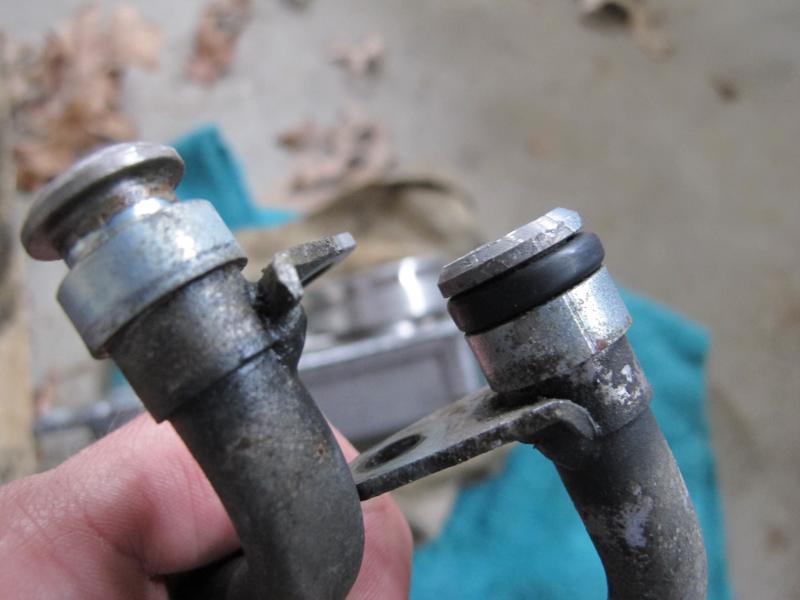

The big o-ring is: 6069970445, the four o-rings on the pipes inside the oil pan are: 0129975648 I still need the part number for the o-rings on the pipes that connect the heat exchanger/oil cooler to the water pump. There are two pipes - two o-rings per pipe. Does anyone have a way to determine the part numbers for those o-rings? They're a lot thicker than standard o-rings. Much appreciated.
__________________
2009 E320 Bluetec 117,000 1995 E300D 306,000 Sold 1996 Ford Taurus LX 130,000 Sold 1985 300TD Still 225,000 Sold 2016 Ford Fusion 24,900 |
#6
|
||||
|
||||
Should be in EPC, no?
__________________
"Buster" in the '95 Our all-Diesel family 1996 E300D (W210) . .338,000 miles Wife's car 2005 E320 CDI . . 113,000 miles My car Santa Rosa population 176,762 (2022) Total. . . . . . . . . . . . 627,762 "Oh lord won't you buy me a Mercedes Benz." -- Janis Joplin, October 1, 1970 |
#7
|
|||
|
|||
EPC doesn't work on mac according to their faq.
__________________
2009 E320 Bluetec 117,000 1995 E300D 306,000 Sold 1996 Ford Taurus LX 130,000 Sold 1985 300TD Still 225,000 Sold 2016 Ford Fusion 24,900 Last edited by connerm; 04-07-2014 at 07:12 PM. |
#8
|
|||
|
|||
Hello CONNERM,
Did you happen to find the part numbers for the o-rings on the pipes that connect the heat exchanger/oil cooler to the water pump? Mine are leaking and I need to get 4 of those. I can't seem to find a good diagram that includes part numbers. Thanks, Alex. |
#9
|
|||
|
|||
__________________
1998 E300 turbodiesel America's Rights and Freedoms Are Not The Enemy! |
#10
|
|||
|
|||
For anyone who may need to know, the part numbers on those coolant line o-rings are: 020-997-58-48 ($1.08 each from mbpartsfactory.com)...
Last edited by aherring; 08-15-2017 at 02:49 PM. Reason: Added pictures |
#11
|
|||
|
|||
I know this is an old post, but I want to thank everyone here for this discussion. I am experiencing the same problem
|
