Lose Bolt on Cam oil squirter??

Here is a question, I have had this issue on my euro since I got it. On the center riser, the bolt that holds the clamp on the tube is lose, and the bolt pops out a bit but not completely, when you attempt screw it back in....it is like threads are missing. Since I am going on a 5000 mile road trip I wonder if this is something I should fix? Would there be any issues with just removing the clamp and bolt? I could try to lock tight it in. It has been this way for many miles and has never just came out, thinking the valve cover may keep the nut from popping all the way out...Thoughts???

__________________
Reply With Quote
  #2
Old 07-15-2014, 06:02 AM
Registered User

Join Date: Oct 2007
Location: Greater Metropolitan Beaverdam VA
Posts: 2,877
Sounds like stripped threads

It would make me itch to have something loose in the valve gear. I would repair before driving.
Reply With Quote
  #3
Old 07-15-2014, 09:47 PM
Registered User

Join Date: Jul 2008
Posts: 3,740

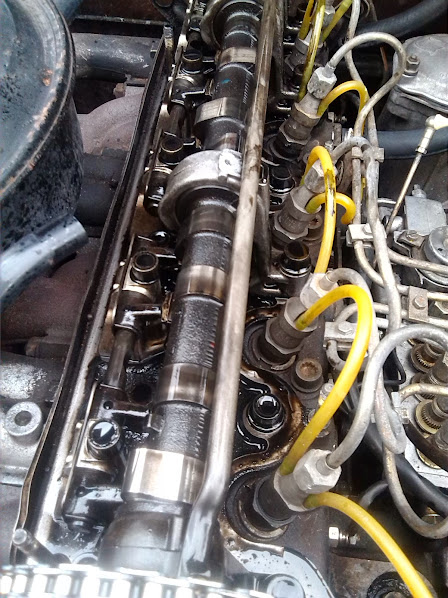

Well pulled the valve cover, add some lock tight but the bolt would not tighten down, appears the threads are damaged. My only other choice was to remove it. I highly doubt it will cause any ill effect as it just holds a clamp for the squirter and it being lose for all these years, the car has ran fine. Its a good thing I pulled the cover, had one tight valve, appears the nuts were lose, i may have forget to tighten them down after the last adjustment, also one of my fuel return lines was pinched.



__________________
Reply With Quote
  #4
Old 07-16-2014, 02:05 AM
Registered User

Join Date: May 2007
Location: Out in the Boonies of Hot, Dry, Dusty, Windy Nevada
Posts: 9,673
Off hand, I would guess the clamp keeps the tube from vibrating and eventually cracking.

If the threaded hole is stripped out, could a Heli Coil type repair work?

Charlie
__________________
there were three HP ratings on the OM616...

1) Not much power
2) Even less power
3) Not nearly enough power!! 240D w/auto

Anyone that thinks a 240D is slow drives too fast.

80 240D Naturally Exasperated, 4-Spd 388k DD 150mph spedo 3:58 Diff

We are advised to NOT judge ALL Muslims by the actions of a few lunatics, but we are encouraged to judge ALL gun owners by the actions of a few lunatics. Funny how that works
Reply With Quote
  #5
Old 07-16-2014, 02:30 AM
Registered User

Join Date: Jul 2008
Posts: 3,740
I was thinking about the heli coil too. When I looked in the hole, it almost looks like it is open to the barring. I think the best thing would maybe be to tap/die it for a little bigger bolt..
