1995 w124 bumpers need replacement

My friend slipped in the ice the other day and cracked both her bumpers up pretty good. Remarkably that is pretty much all the damage even though she slid along a guardrail a while.

I know in 1994 and 1995 they had some body changes to the w124. Will the 1993 and earlier bumpers fit and look ok? It doesn't have look totally stock or anything. There is a 1987 in pull a part that has ok bumpers.

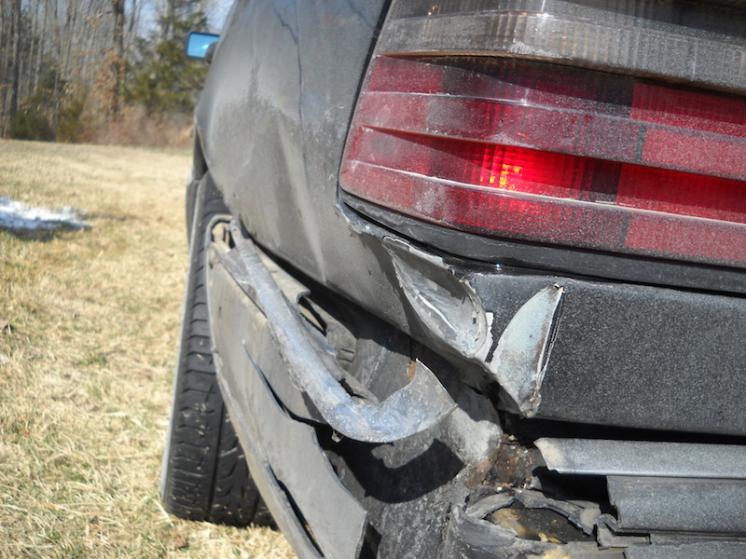

If anyone has any they could ship, that would work too. Check out the pics of damage . I need to ask her if that abs sensor i put in the differential made the abs start working good. It made the abs light go out.

Attached Thumbnails
1995 w124 bumpers need replacement-dscn8025.jpg   1995 w124 bumpers need replacement-dscn8028.jpg   1995 w124 bumpers need replacement-dscn8030.jpg
__________________
What Would Rudolph Do?
1975 300D, 1975 240D, 1985 300SD, 1997 300D, 2005 E320 , 2006 Toyota Prius
Reply With Quote
  #2
Old 03-02-2015, 02:53 PM
Registered User

Join Date: Nov 2010
Location: TX
Posts: 3,978
the last W124 rear bumper has a nearly full wrap around middle strip and chrome trim all around.

the front has eyebrow chrome trim beneath the headlamps.

the bumper middle strips are smooth finish on the 95 because they were painted.

Any W124 bumper will fit to the body, The chrome strips can be transferred, you will need a drill to make the holes in the ears provided for the holes.

The rear bumper will look odd because of the middle strip stops just where the bumper curves the rear corner, the original strips go all the way.
__________________
2012 BMW X5 (Beef + Granite suspension model)

1995 E300D - The original humming machine (consumed by Flood 2017)
2000 E320 - The evolution (consumed by flood 2017)
Reply With Quote
  #3
Old 03-02-2015, 03:53 PM
Registered User

Join Date: Nov 2005
Location: Iowa City, IA
Posts: 1,647
Thanks!
