Go Back   PeachParts Mercedes-Benz Forum > Mercedes-Benz Tech Information and Support > Diesel Discussion

Reply

LinkBack Thread Tools Display Modes
  #1
Old 06-14-2015, 04:57 AM
Registered User

Join Date: Jun 2015
Posts: 9
Unhappy 1992 300D consuming a quart of oil every 60 miles

So I drove to Denver, CO from Orlando, FL 2 weeks ago & made the trip fueling with B99 biodiesel exclusively as it seemed to give better performance & mileage on a previous road trip of similar length. Car performed flawlessly & never got above 80C despite averaging 80mph w/ A/C on high entire time. I tried to drive mostly at night & averaged 1K miles/day. Prior to this recent trip, I had been filling up w/ ULS Diesel #2 & oil consumption was no more than a quart every 2.5K-5K. The vehicle is a little smokey w/ RPMs above 3K but runs evenly on all 5 & seems to have plenty of power. Minimal blow-by noted under valve cover w/ oil cap off. EGR is caked up w/ soot & oil but car leaves no drip puddles when parked. A leak-down test is in order to be sure with this level of consumption. Will it be bad piston rings or valve seals or other? How far is this motor from catastrophic failure? I've been carrying a bicycle on the trunklid like a dinghy just in case ever since I discovered this issue.

Reply With Quote
  #2
Old 06-14-2015, 05:57 AM
engatwork's Avatar
Registered User

Join Date: May 2000
Location: Soperton, Ga. USA
Posts: 13,647
If it started happening all of a sudden my first thought is that something is going on with the crankcase vent system allowing oil to be sucked into the intake of the turbo.
__________________
Jim
Reply With Quote
  #3
Old 06-14-2015, 06:29 AM
Registered User

Join Date: Dec 2006
Posts: 3,941
It could still be a leak, you should drop the belly pan and see if it's filled with oil.

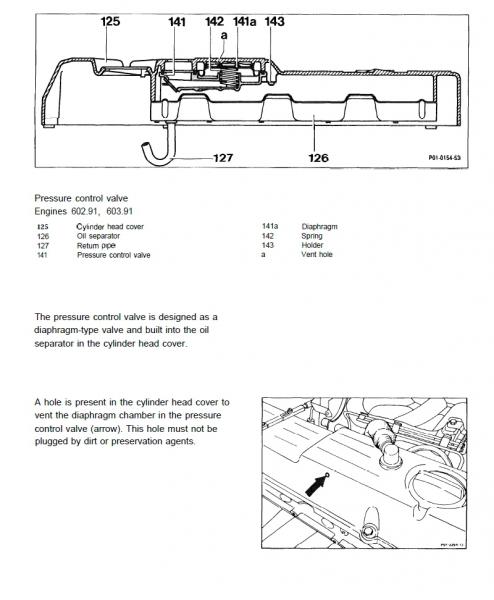

There is an oil/air separator built into the valve cover on 60x engines. It's workings are sort of a mystery, as the assembly is riveted together. It includes a pressure activated valve, a drainage chamber and a drain that allows oil back into the head. It's possible that either the valve is stuck, allowing blow by pressure to blow out a main seal, or it could be that the drain is clogged, allowing recovered oil to be sucked into the turbo. There's a tiny hole on the side of the valve cover that allows air pressure to equalize in the valve, if it's clogged the valve will stick. If you can't find any other possible cause, it may be worthwhile to remove the valve cover and clean this assembly out as best you can.
Attached Thumbnails
1992 300D consuming a quart of oil every 60 miles-breather2.jpg   1992 300D consuming a quart of oil every 60 miles-breather3.jpg

Last edited by Mxfrank; 06-14-2015 at 05:21 PM.
Reply With Quote
  #4
Old 06-14-2015, 09:15 AM
Registered User

Join Date: Aug 2009
Location: MN
Posts: 1,253
If it is not on the ground, or splattered all over the rear of the car, then it is going out the tail pipe.
Check for a leak from the turbo to the intake side.
Is the cross over pipe coated with black crankcase oil inside ?
__________________
Greg
2012 S350 BlueTEC 4Matic
2007 ML 320 CDI
2007 Leisure Travel Serenity
2006 Sprinter 432k
2005 E320 CDI
1998 SLK230 (teal)
1998 SLK230 (silver)
1996 E300D 99k, 30k on WVO
Previous:
1983 240D, on WVO
1982 300D, on WVO
1983 300CD, on WVO
1986 300SDL 237k, 25k on WVO (Deerslayer)
1991 350SDL 249k, 56k on WVO - Retired to a car spa in Phoenix
1983 380 SEC w/603 diesel, 8k on WVO
1996 E300D 351k, 177k on WVO
Reply With Quote
  #5
Old 06-14-2015, 09:57 AM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,835
The turbo berrings/seals could be dumping it also...
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #6
Old 06-14-2015, 07:42 PM
Registered User

Join Date: Oct 2012
Posts: 5,924
Suddenly down to 60 miles a quart. The head gasket may be breeched or leaking between the number one cylinder and the oil pressure passage to the head right in front of it. Pulling the number one injector and cranking the engine may spray oil out.

This is only one of a few possibilities of course. At the same time this type of head gasket failure is not uncommon on those engines either.
Reply With Quote
  #7
Old 06-15-2015, 09:52 AM
Registered User

Join Date: Nov 2010
Location: TX
Posts: 3,978
This problem can cause an engine run away situation, its very ugly when it happens.
__________________
2012 BMW X5 (Beef + Granite suspension model)

1995 E300D - The original humming machine (consumed by Flood 2017)
2000 E320 - The evolution (consumed by flood 2017)
Reply With Quote
  #8
Old 06-15-2015, 10:02 AM
Diesel Preferred

Join Date: Oct 2007
Location: Charleston SC
Posts: 2,788
Quote:
Originally Posted by PSDCamperVan View Post
Car performed flawlessly & never got above
80C despite averaging 80mph w/ A/C on high entire time.
This is a problem. Keeping the engine too cold will increase engine wear, and will also cause higher fuel consumption. You should be seeing engine temperatures of ~85 deg C. The thermostat is supposed to begin opening at 82 and be fully open by 90.

If you are confident that your temperature gauge is accurate, then I recommend you get a new thermostat which is correct for your car, and test it in a pan of water on the stove prior to installing. If you have doubts or want to double check, get a non-contact type thermometer (Hazard Fraught - err, Harbor Freight sells several inexpensive models, starting at around $25) and measure the temperature at the top front of the head (right at the aux. fan coolant temperature sensor/switch).
__________________
Respectfully,
/s/
M. Dillon
'87 124.193 (300TD) "White Whale", ~392k miles, 3.5l IP fitted
'95 124.131 (E300) "Sapphire", 380k miles
'73 Balboa 20 "Sanctification"
Charleston SC
Reply With Quote
  #9
Old 06-16-2015, 04:05 AM
Registered User

Join Date: Jun 2015
Posts: 9
Thanks to everyone who replied. I've been talked into having the valve guides replaced. Fingers crossed this will rectify my situation. The tensioner pulley was also discovered on further inspection to be walking itself off it's mount bearing on front cover & closing in on the gap between it & the radiator fan. This will be sorted as well. I'll report back when repairs have been completed with update. Thanks again.
Reply With Quote
  #10
Old 06-16-2015, 05:53 AM
engatwork's Avatar
Registered User

Join Date: May 2000
Location: Soperton, Ga. USA
Posts: 13,647
Typically, if valve stem guide seals are worn out you will see smoke on take off after sitting at a redlight or stop sign. Because of the amount of oil you are using I would suspect you have something going on that is causing the oil to be sucked into the combustion chamber.
__________________
Jim
Reply With Quote
  #11
Old 06-16-2015, 07:12 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Quote:
Originally Posted by engatwork View Post
Typically, if valve stem guide seals are worn out you will see smoke on take off after sitting at a redlight or stop sign...
{Perhaps worth adding?}

...and for valve stem seals you might notice plumes of smoke at start up because the oil has leaked into the cylinder when the engine is stopped
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #12
Old 06-16-2015, 09:27 AM
Registered User

Join Date: Oct 2012
Posts: 5,924
Figure out what is wrong first. I doubt valve guides unless one was broken during the trip. Almost an impossibility. Even then I doubt oil consumption would suddenly increase that much.

Certainly the valve guides may be worn. They wear over a long period of time and do not result in a sudden massive increase of oil consumption. Just a very gradual change over tens of thousands of miles at least.


Someone is giving you wrong expensive information in my opinion. You should prove what is wrong before doing anything else. It is almost always far cheaper to do so. There are many members on this site that are far more knowledgeable than myself. They can help you. Start with examining the cheap stuff.

It sounds like you may be on the verge of spending a lot of money that may make no practical difference. Unless when the head is removed the breech I suggested in the head gasket is observed. Then the need for additional work on the head is subject to need. If you are bound and bent on wasting money at least take a printoff of this to your mechanic first.

It is highly important when diagnosing that the oil consumption over a very short period of time and milage. Went from thousands of miles a quart to sixty miles a quart. Also tell your mechanic that this is a diesel and they are just not as subject to valve guide and seals type of issues. At least oil burning wise as gas engines of this manufacturer are.

There are three prime candidates for this problem. They are the turbo bearing seals, the head gasket and the engine breather system. Not the valve guides. Just trying to save you possibly needless expendatures. At the same time it is your money.

Last edited by barry12345; 06-16-2015 at 10:02 AM.
Reply With Quote
  #13
Old 06-16-2015, 09:36 AM
Registered User

Join Date: Nov 2010
Location: TX
Posts: 3,978
in a diesel you will not see the same blue smoke at startup from bad valve seals, the engine will use that oil as fuel and blow usual black diesel exhaust on starting.

It may sound like a can of marbles when starting up if the oil consumption is really bad.

I would also suggest to stop driving the car, if your engine decides to run away (the engine uses its own lubricating oil as fuel at uncontrolled rpm - imagine 12000 rpm or above) you could land in a dangerous situation whilst driving.
__________________
2012 BMW X5 (Beef + Granite suspension model)

1995 E300D - The original humming machine (consumed by Flood 2017)
2000 E320 - The evolution (consumed by flood 2017)
Reply With Quote
  #14
Old 06-16-2015, 08:59 PM
Registered User

Join Date: Jan 2015
Location: northern IL
Posts: 267
All very good ideas. Diagnosis while sitting still with the air cleaner removed and a metal cap for the turbo air intake is a good plan. If you really are sucking oil into the cumbustion chamber (a very real possibility) you stand a good chance of a runaway. The only way to stop one is to close off the source of combustion air - be carefull, the spinning turbo vanes will eat your fingers. Check the simple stuff first. Has anyone looked at the oil pressure sending unit? A leaky OPSU can still give a pressure reading while dumping oil. How about the fittings for the oil cooler? The oil filter housing? And so on. Just because the car doesn't leave a puddle, doesn't mean it isn't leaking. Good luck!
Reply With Quote
  #15
Old 06-17-2015, 09:15 AM
Diesel Preferred

Join Date: Oct 2007
Location: Charleston SC
Posts: 2,788
Valve stem seals are NOT your problem, if your engine went from consuming 1 qt per 2500 miles to 1 qt per 60 miles.

Let's think about this a little bit. Your engine is turbocharged. The turbocharger increases the air pressure in the combustion chamber above atmospheric pressure. Air will constantly be trying to escape from the combustion chamber, including going UP the valve stems. The only forces causing oil to flow DOWN the valve stems are gravity and wicking. Trust me, there is NO way that you can consume a qt of oil in 60 miles via the valve stems.

I think there are two other likely possibilities, already mentioned. The turbocharger, or a head gasket failure at the oil passage by the #1 cylinder. You need to pull the intake cross-over pipe to see if oil is flowing down that from the turbo, and also check the exhaust piping down-stream of the turbo. If there is no indication of oil in either place, then you need to find a way to test for the head gasket failure.

__________________
Respectfully,
/s/
M. Dillon
'87 124.193 (300TD) "White Whale", ~392k miles, 3.5l IP fitted
'95 124.131 (E300) "Sapphire", 380k miles
'73 Balboa 20 "Sanctification"
Charleston SC
Reply With Quote
