NONE of my windows work, or all work depending on the car's mood.

There are three fuses in the holder which pertain to das fensters. One powers the LF and RR window. The next powers the RF and LR windows. Both have identical relays (near as I can tell) part number 001-542-0219.

According to interwebz lore, there is a third fuse which "supposedly' powers a "main" window relay and if crapped out, will result in zero window control.

I have checked all the fuses for corrosion and integrity. All are good.

Looking for the source of my dead windows. They worked fine a few weeks ago.

Many thanks.

I helped another forum member with power window issues not long ago and posted schematics. Some of that info may apply for you. Search and you will find it.

__________________
85 300D turbo pristine w 157k when purchased 161K now
83 300 D turbo 297K runs great. SOLD!
83 240D 4 spd manual- parted out then junked

Hi oldmako,

I've attached 2 links to tech articles that should help you troubleshoot your window issue. One link is for the front windows and the second is for the back....best of luck!

Front Window - Pelican Technical Article - Mercedes-Benz W123 - Front Window Regulator Replacement

Rear Window - Pelican Technical Article - Mercedes-Benz W123 - Rear Window Regulator Replacement



-Dmitry

Thanks, but I don't believe that it's a regulator issue. I'll read the threads and see if I can glean some info.

All four windows either work, or don't. Initially, the problem was intermittent. Now, they're all dead. Fuses are all good. So I think its a voltage issue. As mentioned, someone earlier suggested that there's a controlling relay of some sort, located behind the instrument cluster. Will keep looking.

Suggest you replace the fuses. Often they look OK but are not. Corrosion or just not a good contact. Cheap test.

On my 84 300D the #12 fues is the one that powers the Power Window Relay.

__________________
84 300D, 82 Volvo 244Gl Diesel

I replaced all the fuses with new bimetal when I bought the car in Mar of this year. But, good suggestions none the less. Will recheck.

I replaced the relay. It resides behind the instrument cluster. One relay controls all the windows. Its a pain to access. There is minimal slack in the wiring and the speedo cable. All of the windows now work like a champ.

Took forever to re-hook it. I ended up disconnecting a small connector in the engine bay which held the cable secure. That was the only way to get it reconnected.

Ran across this in a google search, so adding info. Yes, "old 2017 post!" (beat some gomer to that punch so get-a-life). An earlier post in 2007 had incorrect info claiming the window switches were directly powered from the key switch. Not true at least in my 1985 300D. My Haynes manual has a schematic for 1984, which shows 2 relays in the power source for the window switches, with one enabling the other thru the door jamb switch, though asterisked as "optional" for all 3. I don't have the FSM. Perhaps the door switch is a disable for certain models which might have the glass or weatherstripping damaged if actuated when the door is open (2 door coupe or convertible?). If anyone knows, chime in.

Before diving in, the most common problem is a corroded fuse. One fuse powers LF & RR windows while another powers RF & LR windows. So, if diagonal windows don't work, check the fuses. Since I replaced all tin fuses with gold-plated ones, few such problems. Another common problem is the switches get funky, especially if your family enjoys spilling drinks on the console like mine. Usually that will stop a window (or sunroof) going in only one direction. You can remove the switches, pop open by slightly prying the side away from the plastic "axle", and clean the silver contacts, reassembling w/ silicone grease. Work on a clean dining table, preferably in a tray to contain loose parts. That is almost an annual task between my two 300D's.

This time, per post title, no windows worked but the sunroof did. In the fusebox, both a and b fuses had no power, so went to the Haynes and found these WTF enabling-relays but had to google to find where located. I had seen that relay behind the dash cluster but was thinking "flasher" though the flasher relay is in the console and not a standard Bosch relay like this. You can leave the cluster in place and just remove the lower dash panel to reach up and grab the relay, knowing the bugger is there. If removing the dash, I always push it out from behind anyway since the tug-shims people show don't work for me and risk breaking something, so lower-panel off is part of that anyway. I swapped in the relay for the radiator fan and voila my windows work (only one on inner L fender in my 1985, identical AC relay there too in earlier 300D). Now I wonder if my car has the 2nd relay which enables the one I swapped. My windows work with the driver's door open so likely doesn't.

The rest here is general to any of the standard Bosch 30A relays in your M-B and even new ones in recent U.S. cars (flat spade connectors). The terminal numbers are German DIN standard (U.S. too), but the 85 & 86 for coil apparently have no standard polarity that I've ever found. That only matters if they have an internal diode which could be a short-circuit if wrong polarity. You might check first using ohms on your multimeter but use another meter to determine which lead is positive in ohms mode (sometimes black). If you measure less coil resistance with one polarity, use the other polarity to not short-circuit. This M-B relay appears to have a resistor in parallel w/ the coil (per legend on cover) so polarity doesn't matter. One web article found a relay base w/ diode oriented opposite what many state is proper coil polarity, so nothing is assured. To be ultra-safe, you could actuate the relay position w/ relay out (turn key to "run" here) and measure polarity applied by the car on 85 & 86. I didn't worry and just connected 12 VDC across the relay since in "salvaging a relay" mode.

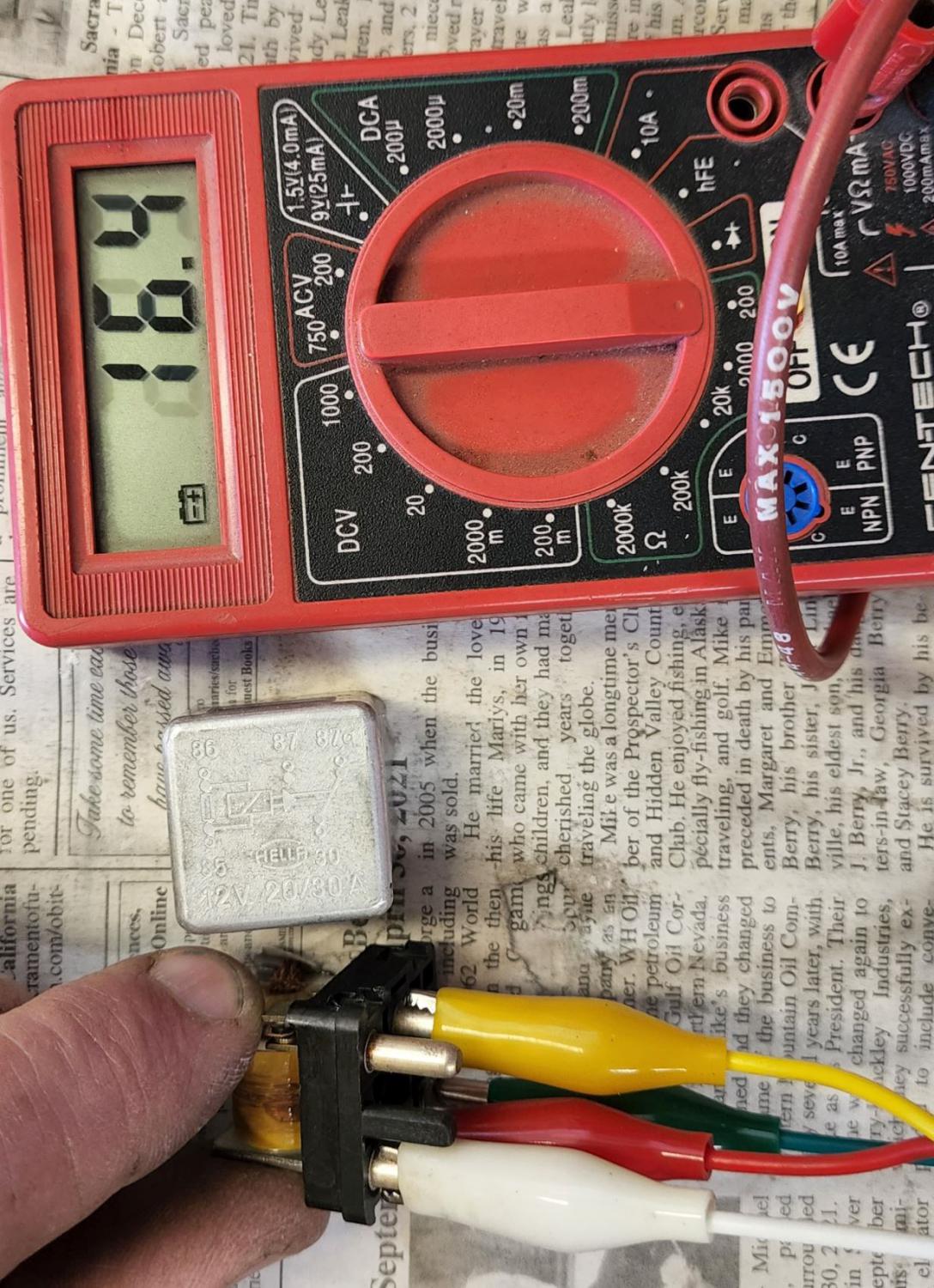

As-found, the relay would click with 12 VDC across the coil, but no continuity between 30 (12 VDC source usually but not always for a subtle reason) and 87 (normally-closed). Also open from 30 to 87a when unpowered (not used anyway). I popped the top and cleaned the contacts w/ 600 grit sand-paper plus spray Contact Cleaner, then got low resistance from 30 (red clip) to 87 (wht) when pressing the contacts closed by finger and then with coil actuated (grn & yel). Ignore the 20 ohm reading since I get that with multimeter leads clipped together (cheap Chinese stuff and/or low battery). Both aluminum cover and base are numbered so easy to orient the cover correctly before crimping it back on. This one will now power my radiator fan and the contacts usually work there (until burned away) since that motor is more energetic. BTW, now that you know how they work, for many functions, you can pop out the relay and jumper term 30 to 87 to force the action. In my M-B, I carry a jumper w/ male bullet connectors for that. In my U.S. cars, a jumper w/ male spades (Packard 57). Usually to jumper the starter motor relay or fuel pump, though neither apply to my M-B, but you could perhaps force on the radiator fan if overheating to make it home. Don't force on the AC clutch or it will overpressure the compressor outlet to perhaps slip the clutch to melt.

Attached Thumbnails



__________________
1984 & 1985 CA 300D's
1964 & 65 Mopar's - Valiant, Dart, Newport
1996 & 2002 Chrysler minivans

Also incorrect according to the two pages of schematics for the power windows in the FSM for the 300 D/CD/TD for 1983 - 1985.

Studying the aforementioned two pages, I see only one relay and as you described. And no problem, as you said, jumpering terminal 30 to 87 because terminal 87a is connected to nothing.

Nice work opening up the relay to regain continuity between 30 and 87. And yes, that relay is homed in that tight space that is the area behind the instrument cluster, LOL.
