Quote:
Originally Posted by Diseasel300
1mm seems like way too much gap for a magnetic pickup. As 97SL mentioned earlier up in this thread, the gap is typically in the thousandths of an inch range (fraction of mm). If the tap is too wide, you'll get no reaction out of it until the RPM is high enough keep it triggered. The voltage pulse is tiny, getting the right amplitude out of it is all down to the gap.
|
well, it's the standard mercedes parts, not modified :'(
Quote:
Originally Posted by cornemuse
I dont quite understand, is the harmonic balancer from a diesel?
The diesel needs a groove cut in the pulley. The groove causes a disruption in the magnetic field which the pickup senses.
I mounted a (300d) tach in my 6.2 diesel Blazer (<- comes with a bracket for connecting a magnetic probe for timing & rpm). I fab'ed a bracket to mount the MB pickup. Worked like a charm, , , , ,
-c-
|
it's a pin on the harmonic balancer that spins.

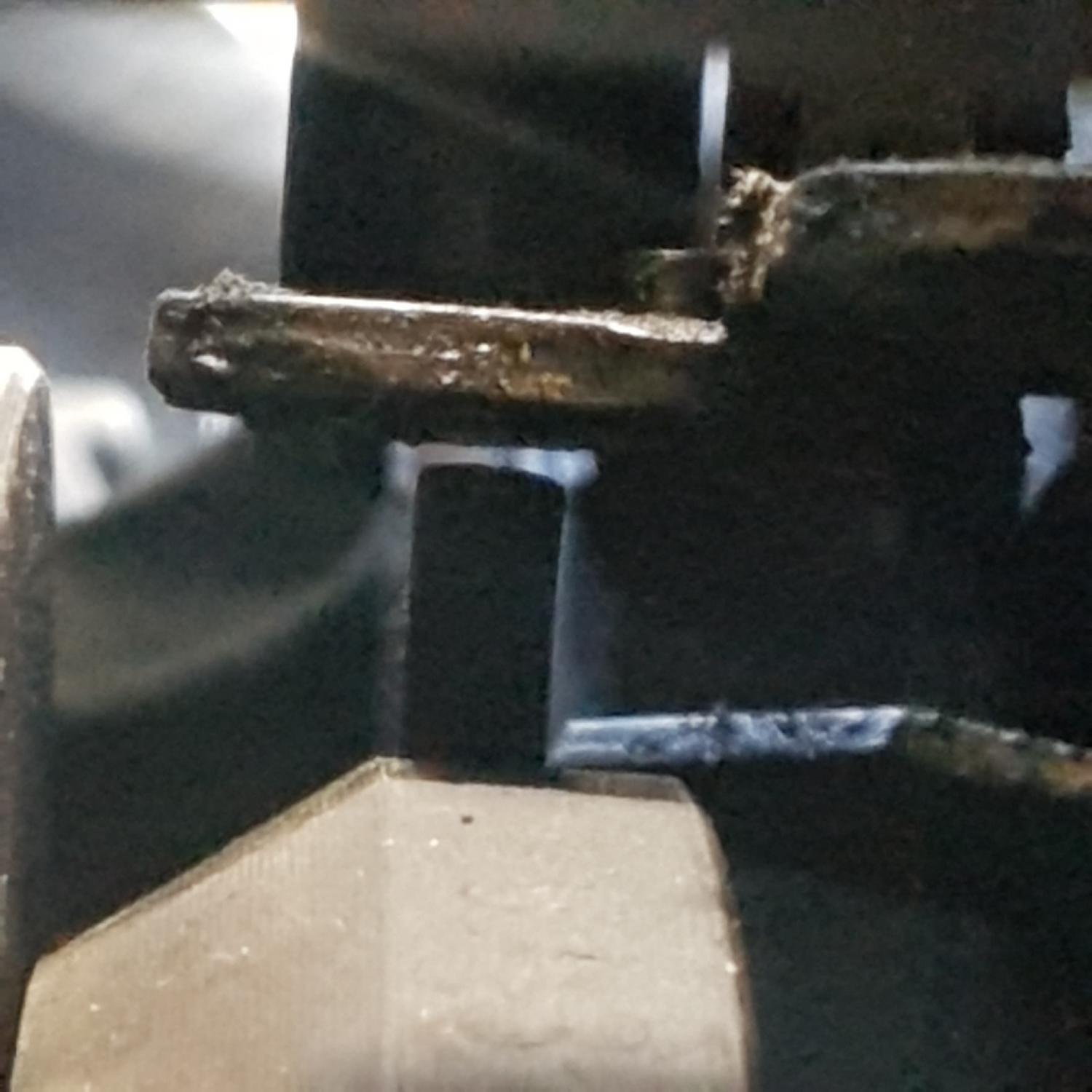

below is a picture of the pin when the pickup sensor wire is removed, a side shot

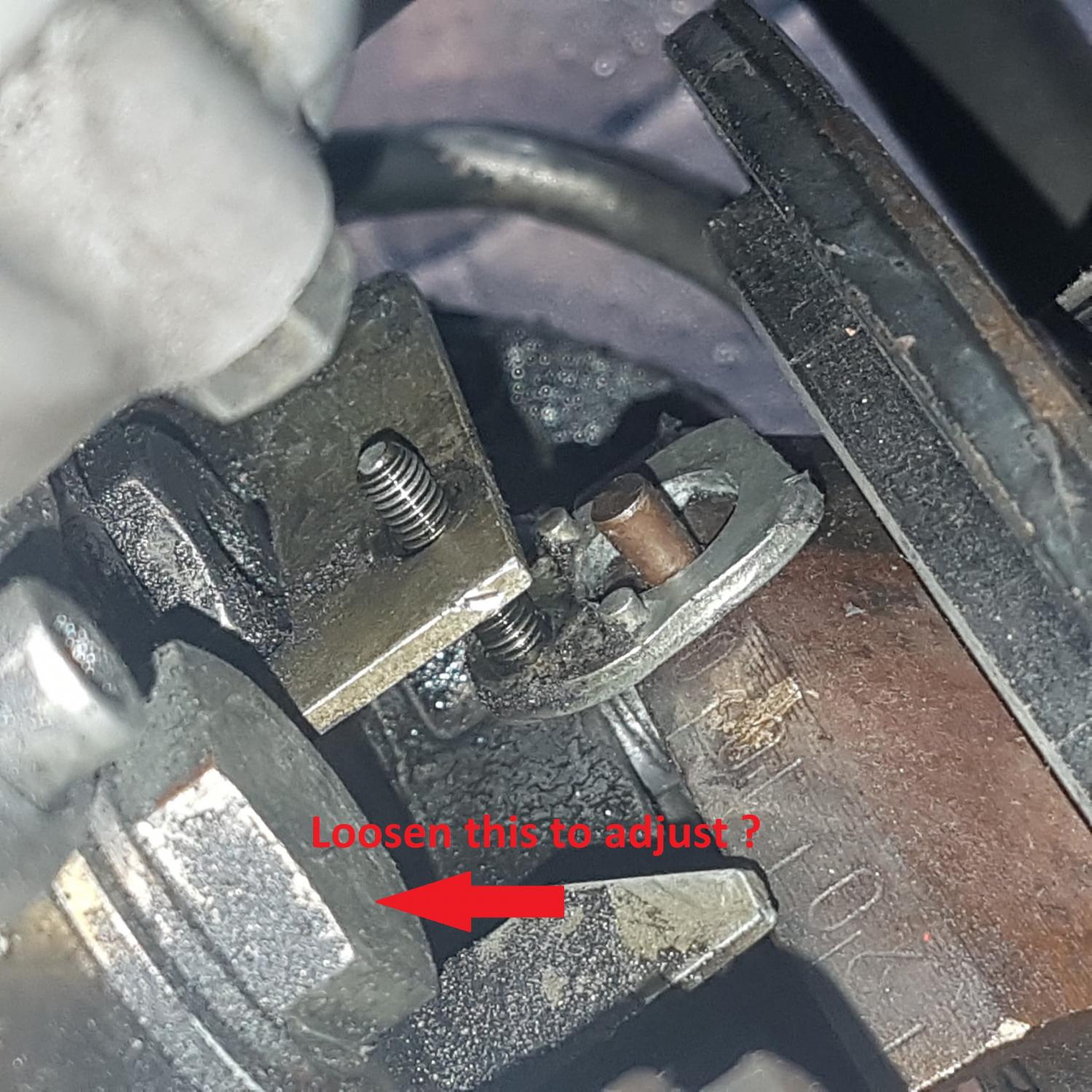

as well as another clear shot of the pin when i was taking the old pickup sensor off and then the new sensor on
and within that picture i put an arrow, to ask if i loosen this bolt can i shift the bracket to make it a bit closer ?
this car was a m110 engine, but now has om617. I bought a diesel tach+ tach amp + pickup wire seperately
