what is the Bundt rim ET?

I believe that there are two different widths of Bundt rims, but whatever they are, the books seem to indicate that there are at least 3 different ETs for them:


25mm 30mm and 33mm.


Anyone know if any of these widths are associated with a particular ET ?

__________________
Strelnik
Invest in America: Buy a Congressman!

1950 170SD
1951 Citroen 11BN
1953 Citroen 11BNF limo
1953 220a project
1959 180D
1960 190D
1960 Borgward Isabella TS 2dr
1983 240D daily driver
1983 380SL
1990 350SDL daily driver alt
3 x Citroen DS21M, down from 5
3 x Citroen 2CV, down from 6
Reply With Quote
  #2
Old 04-27-2020, 03:23 PM
t walgamuth's Avatar
dieselarchitect

Join Date: Apr 2005
Location: Lafayette Indiana
Posts: 38,613
First, I suspect the numbers above are wrong if meant to represent wheel width. I know of three bundts:
1. One with about 6" width which weighs about 16#
2. There is another then that is about a half inch wider which weighs a bit more.
3. There is a 15"d. I believe which is very rare.
__________________
[SIGPIC] Diesel loving autocrossing grandpa Architect. 08 Dodge 3/4 ton with Cummins & six speed; I have had about 35 benzes. I have a 39 Studebaker Coupe Express pickup in which I have had installed a 617 turbo and a five speed manual.[SIGPIC]

..I also have a 427 Cobra replica with an aluminum chassis.
Reply With Quote
  #3
Old 04-27-2020, 06:40 PM
Registered User

Join Date: Aug 2019
Posts: 949
Quote:
Originally Posted by strelnik View Post
I believe that there are two different widths of Bundt rims, but whatever they are, the books seem to indicate that there are at least 3 different ETs for them:


25mm 30mm and 33mm.


Anyone know if any of these widths are associated with a particular ET ?

Looking at this pdf it doesn't show 33mm but only 30 and 25 offset for bundt rims. (w108 or 109 is not listed so I'm not sure)


from page 12 you have the listing for forged light alloy rims:


https://www.startekinfo.com/StarTek/outside/12265/disc_2/program/Chassis/40-102.pdf


w123 and w126 rims by model:


https://www.startekinfo.com/StarTek/outside/12265/disc_2/program/Chassis/40-100.pdf
Reply With Quote
  #4
Old 04-27-2020, 07:16 PM
Registered User

Join Date: Feb 2011
Location: Modesto CA
Posts: 4,078
From the wheel information tables this may be concluded:

14" Bundt wheels have an ET of 30mm.

15" Bundt wheels have an ET of 25mm.
Reply With Quote
  #5
Old 04-27-2020, 08:54 PM
Registered User

Join Date: Feb 2007
Posts: 244
Okay, I'll cry "Uncle"...

I don't know how to decode the following stock rim specification (from the Factory Service Manual) and if someone would be willing to clarify, I would appreciate it:

"6J x 14 H2"

While you're at it, LOL, what does the "ET" represent as previously posted in this thread?

A humble Thank You.
Reply With Quote
  #6
Old 04-28-2020, 01:54 PM
Fold on dotted line

Join Date: Aug 2007
Location: SE Mich
Posts: 3,284
Quote:
Originally Posted by dogguy View Post
Okay, I'll cry "Uncle"...

I don't know how to decode the following stock rim specification (from the Factory Service Manual) and if someone would be willing to clarify, I would appreciate it:

"6J x 14 H2"

While you're at it, LOL, what does the "ET" represent as previously posted in this thread?

A humble Thank You.

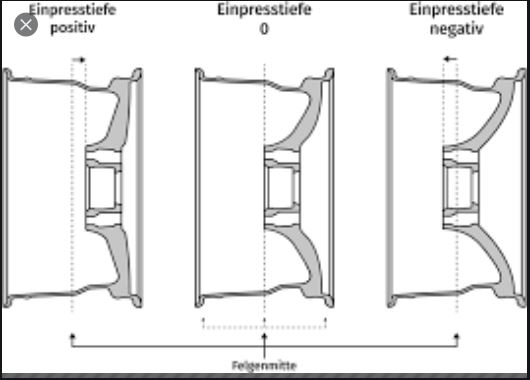

ET stands for the German word " Einpresstiefe" which is the depth of the offset as shown in the three attached rims, which look suspiciously like Bundt rims.

Following this logic, if the Bundt rims are 30mm positive ET, then that Means there's a lot of room inside to fill, perhaps with a spacer.

You see, I plan on putting these Bundts on a slightly lifted smart car.
Attached Thumbnails
what is the Bundt rim ET?-et.jpg
__________________
Strelnik
Invest in America: Buy a Congressman!

1950 170SD
1951 Citroen 11BN
1953 Citroen 11BNF limo
1953 220a project
1959 180D
1960 190D
1960 Borgward Isabella TS 2dr
1983 240D daily driver
1983 380SL
1990 350SDL daily driver alt
3 x Citroen DS21M, down from 5
3 x Citroen 2CV, down from 6
Reply With Quote
  #7
Old 04-28-2020, 03:27 PM
Registered User

Join Date: Feb 2007
Posts: 244
Quote:
Originally Posted by strelnik View Post
ET stands for the German word " Einpresstiefe" which is the depth of the offset as shown in the three attached rims, which look suspiciously like Bundt rims.

Following this logic, if the Bundt rims are 30mm positive ET, then that Means there's a lot of room inside to fill, perhaps with a spacer.

You see, I plan on putting these Bundts on a slightly lifted smart car.

Ahhhhhh. Yes, I see and now I understand.

Thank you for clarifying the ET for me.
