How to Macgyver throttle bushing?

So, I'm picking up a soon-to-be parts car and "runs and drives great" just turned into "I lost the title and the accelerator isn't working now".


I'm betting its the throttle bushing, and would love to avoid towing this thing 2 hours, I know the answer is "fix it with wire" but I'd like to be a bit more solid on what to do to get this thing moving.

Can anyone give me a better idea of the rig-up to get this car 130 miles, or am I just asking for trouble?

At the least, it'll help get it into the barn when I get it home.

Many thanks.

LBJ

__________________
1985 300D Surfblau "Blueberry" 250K R.I.P
1984 300CD Manila Beige "The Banana" 238K R.I.P
1984 300TD Cypress Green "Olive" 390K (M.I.A.)

1982 300D Orient Red "Steak" 195K
1985 Euro 300TD Lapis Blue “Pancake” 200k KM
1982 300D Light Ivory “Butter” 183k
1984 300TD Black “Pepper” 55k
Reply With Quote
  #2
Old 05-13-2020, 10:28 PM
Registered User

Join Date: Dec 2008
Location: NE Oklahoma
Posts: 565
It would help to know what car we are talking about.
Reply With Quote
  #3
Old 05-13-2020, 10:42 PM
Diseasel300's Avatar
Registered User

Join Date: May 2016
Posts: 6,025
No title? No sale, Charlie. Good way to get screwed. They don't have it on hand when you show up? Walk away.
Reply With Quote
  #4
Old 05-13-2020, 11:11 PM
lbj.lbj's Avatar
Registered User

Join Date: May 2011
Posts: 168
It sure would. It’s an 82 300D
Quote:
Originally Posted by MB140300SD View Post
It would help to know what car we are talking about.
__________________
1985 300D Surfblau "Blueberry" 250K R.I.P
1984 300CD Manila Beige "The Banana" 238K R.I.P
1984 300TD Cypress Green "Olive" 390K (M.I.A.)

1982 300D Orient Red "Steak" 195K
1985 Euro 300TD Lapis Blue “Pancake” 200k KM
1982 300D Light Ivory “Butter” 183k
1984 300TD Black “Pepper” 55k
Reply With Quote
  #5
Old 05-13-2020, 11:19 PM
lbj.lbj's Avatar
Registered User

Join Date: May 2011
Posts: 168
Normally it would be a no go for me too, but it’s NH so no titles for cars older than 99, so I’m betting he didn’t lose it, he never had it to begin with, found it on the barter section of craigslist.

Low mileage and gorgeous interior, it’s a pity it was left to rot.

I’m not registering it anyhow, just need to get it from point A to point B to start pulling parts.

Quote:
Originally Posted by Diseasel300 View Post
No title? No sale, Charlie. Good way to get screwed. They don't have it on hand when you show up? Walk away.
__________________
1985 300D Surfblau "Blueberry" 250K R.I.P
1984 300CD Manila Beige "The Banana" 238K R.I.P
1984 300TD Cypress Green "Olive" 390K (M.I.A.)

1982 300D Orient Red "Steak" 195K
1985 Euro 300TD Lapis Blue “Pancake” 200k KM
1982 300D Light Ivory “Butter” 183k
1984 300TD Black “Pepper” 55k
Reply With Quote
  #6
Old 05-14-2020, 01:46 AM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 51,036
Bring some 5 minute curing JB Weld Epoxy with you. Typically the shaft pulls out of the plastic ball that is behind the bracket.

However often the Plastic Ball just crumbles away.

The other failure point is the rubber. I will let you figure that one out yourself if that is the issue.

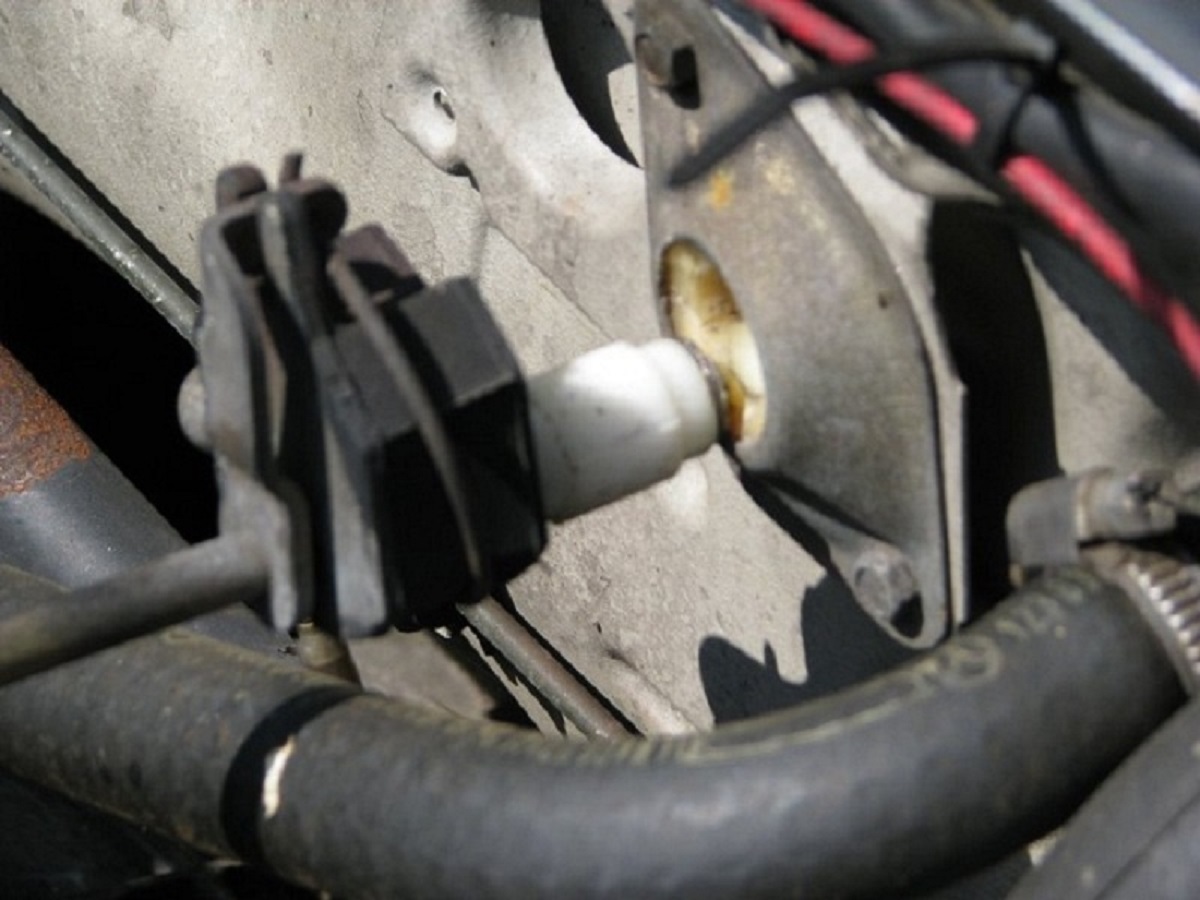

2 attached pics one with the shaft pulled out and one showing what a new one looks like from front to back.
Attached Thumbnails
How to Macgyver throttle bushing?-throttle-bushing-no-good-2020.jpg   How to Macgyver throttle bushing?-throttle-bushing-2020.jpg
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #7
Old 05-14-2020, 01:55 AM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 51,036
So I attached the pic here.
Attached Thumbnails
How to Macgyver throttle bushing?-throttle-bushing-no-good-2020-2.jpg
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #8
Old 05-14-2020, 11:10 AM
vwnate1's Avatar
Diesel Dandy

Join Date: Nov 2005
Location: Sunny So. Cal. !
Posts: 7,717
Post Throttle Bushing

One of my old W123's came to me with a medium sized cork whittled to fit...

It worked fine but drove me batty so I replaced it .

Good luck with your treasure trove of parts ! .
__________________
-Nate
1982 240D 408,XXX miles
Ignorance is the mother of suspicion and fear is the father

I did then what I knew how to do ~ now that I know better I do better
Reply With Quote
  #9
Old 05-14-2020, 11:12 AM
lbj.lbj's Avatar
Registered User

Join Date: May 2011
Posts: 168
Thank you for your help!

Quote:
Originally Posted by Diesel911 View Post
So I attached the pic here.
__________________
1985 300D Surfblau "Blueberry" 250K R.I.P
1984 300CD Manila Beige "The Banana" 238K R.I.P
1984 300TD Cypress Green "Olive" 390K (M.I.A.)

1982 300D Orient Red "Steak" 195K
1985 Euro 300TD Lapis Blue “Pancake” 200k KM
1982 300D Light Ivory “Butter” 183k
1984 300TD Black “Pepper” 55k
Reply With Quote
  #10
Old 05-14-2020, 10:11 PM
Registered User

Join Date: Oct 2007
Location: Greater Metropolitan Beaverdam VA
Posts: 2,877
Back to the OP

It would be less trouble to buy new bushings (cheap) and install them (easy).
Reply With Quote
  #11
Old 05-14-2020, 11:03 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 51,036
Quote:
Originally Posted by lbj.lbj View Post
Thank you for your help!
I have no idea why the picture did not work out in the first time I posted on. Glad it worked on the 2nd post.
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #12
Old 05-14-2020, 11:38 PM
lbj.lbj's Avatar
Registered User

Join Date: May 2011
Posts: 168
Agreed-
Not sure th is is the issue and the opportunity has a short window, otherwise I’d be arriving with more than a coat hanger and a champagne cork.....probably

Quote:
Originally Posted by rocky raccoon View Post
Back to the OP

It would be less trouble to buy new bushings (cheap) and install them (easy).
__________________
1985 300D Surfblau "Blueberry" 250K R.I.P
1984 300CD Manila Beige "The Banana" 238K R.I.P
1984 300TD Cypress Green "Olive" 390K (M.I.A.)

1982 300D Orient Red "Steak" 195K
1985 Euro 300TD Lapis Blue “Pancake” 200k KM
1982 300D Light Ivory “Butter” 183k
1984 300TD Black “Pepper” 55k
Reply With Quote
  #13
Old 05-15-2020, 01:28 AM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 51,036
Quote:
Originally Posted by rocky raccoon View Post
Back to the OP

It would be less trouble to buy new bushings (cheap) and install them (easy).
I replace mine last year and it was $42-$45. Not cheap but not unreasonable. I did not get it from a Mercedes dealer.

I don't consider that cheap but some of the parts are reaching that point of no longer being manufactured so I decided to replace mine. And sure enough the plastic ball was had partially fallen apart although the shaft had not yet pulled out of it.
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #14
Old 05-16-2020, 06:24 AM
Registered User

Join Date: Mar 2019
Location: Boston, MA
Posts: 26
Quote:
Originally Posted by Diesel911 View Post
I replace mine last year and it was $42-$45. Not cheap but not unreasonable. I did not get it from a Mercedes dealer.

I don't consider that cheap but some of the parts are reaching that point of no longer being manufactured so I decided to replace mine. And sure enough the plastic ball was had partially fallen apart although the shaft had not yet pulled out of it.
I would like to buy a new one, Is the part definitely listed as W123 throttle control bushing? Couldn't find one under that name.Thanks
Reply With Quote
  #15
Old 05-16-2020, 09:51 PM
lbj.lbj's Avatar
Registered User

Join Date: May 2011
Posts: 168
Quote:
Originally Posted by Diesel911 View Post
Bring some 5 minute curing JB Weld Epoxy with you. Typically the shaft pulls out of the plastic ball that is behind the bracket.

The other failure point is the rubber. I will let you figure that one out yourself if that is the issue.
It was the rubber, it separated entirely from the plate behind it.

tried to epoxy back togetherbut too much of an oil slick to do on site so ended up towing.

thank you!
