Home Made Special Tools, This is where members can share how they made special tools

This link is NEW Special Mercedes-Benz Tools
Special Mercedes-Benz Tools - PeachParts Mercedes ShopForum


All of the following are links to Home Made Special Tools:

If you have made a special tool, please share pictures and directions.

Accessory

Does anyone have stereo removal tools?
Does anyone have stereo removal tools? - PeachParts Mercedes ShopForum

Air Intake

DIY smoke machine - diagnose vacuum and evap leaks
http://www.pontiacbonnevilleclub.com/forum/general-chat/topic35820.html

Special tool for running your diesel engine without the Turbo installed
http://www.peachparts.com/shopforum/diesel-discussion/348079-special-tool-running-your-diesel-engine-without-turbo-installed.html

Body Electrical

Body Mechanical & Trim

Body Sheet Metal

Brake

Carburetion

Climate Control

w124 expansion valve removal
http://www.peachparts.com/shopforum/tech-help/156794-w124-expansion-valve-removal.html

Clutch

Cooling System

THE Definitive Block Heater Coolant Plug Removal Thread
THE Definitive Block Heater Coolant Plug Removal Thread - PeachParts Mercedes ShopForum

DIY 8mm fan clutch TOOL
http://www.peachparts.com/shopforum/diesel-discussion/292188-help-pls-1998-210-frozen-pulley-belt-off-out-luck.html#post2636972

R&R of Viscous Coupled Fan, Serpentine Belt Replacement W210 E300D
R&R of Viscous Coupled Fan, Serpentine Belt Replacement W210 E300D - PeachParts Mercedes ShopForum

1994 E320 Water Pump replace method
94 E320 Water Pump replace method - PeachParts Mercedes ShopForum

M103 stuck fan clutch bolt (home made tool)
M103 stuck fan clutch bolt - PeachParts Mercedes ShopForum

Diesel Injection

OM60x bottom injection pump cover plate screw removal
http://www.peachparts.com/shopforum/3251803-post31.html

diesel pop tester
diesel pop tester | eBay

How to build a diesel injector pop tester
How to build a diesel injector pop tester - PeachParts Mercedes ShopForum

Another DIY Diesel Injector Pop Tester
http://www.peachparts.com/shopforum/diesel-discussion/283435-another-diy-diesel-injector-pop-tester.html

Finally finished my over-engineered pop tester!
Finally finished my over-engineered pop tester! - PeachParts Mercedes ShopForum

power steering pump as injector pop tester
power steering pump as injector pop tester - PeachParts Mercedes ShopForum

Easy homemade pop tester
Easy homemade pop tester - PeachParts Mercedes ShopForum

Diesel injector nozzle POP test pump
Diesel injector nozzle POP test pump - PeachParts Mercedes ShopForum

anyone know how to use a diesel pop tester?
anyone know how to use a diesel pop tester? - PeachParts Mercedes ShopForum

$15 REdneck Slide hammer and Prechamber adapter (Pics)
$15 Redneck Slide hammer and Prechamber adapter (Pics) - PeachParts Mercedes ShopForum

DIY 617.9XX prechamber tools
DIY 617.9XX prechamber tools - PeachParts Mercedes ShopForum

OM615, 616, 617 prechamber tool
http://www.peachparts.com/shopforum/diesel-discussion/258453-prechamber-threaded-ring-threads.html

300 5cyl. homemade prechamber puller
300 5cyl. homemade prechamber puller - PeachParts Mercedes ShopForum

http://www.w124performance.com/service/W126/w126CD1/program/Engine/617/01-417.pdf

Drive Belts

W210 606 serp belt/tensioner replacement (home made fan bolt wrench + pulley holding tool)
W210 606 serp belt/tensioner replacement - PeachParts Mercedes ShopForum

home made tools for serpentine belt change? 1987 300D W124 (603 motor - non turbo)
home made tools for serpentine belt change? - PeachParts Mercedes ShopForum

Driveshaft, Axle & Wheel bearing

Home made W123 and W126 rear wheel bearing nut tool
http://www.peachparts.com/shopforum/1423802-post12.html



Engine Electrical

Home made tool for removing starter
Home made tool for removing starter - PeachParts Mercedes ShopForum

Glow plug disaster, 1999 E300D OM606 engine
Jake's 99 e300d Vegoil Conversion: Glow plug disaster

creative Glow plug Reamer
Club smart Car > How to change glow plugs & measure compression

Glow plug service tool kit
http://www.peachparts.com/shopforum/diesel-discussion/288868-glow-plug-service-tool-kit.html

glow plug reamer - pic
http://www.peachparts.com/shopforum/diesel-discussion/76490-glow-plug-reamer-pic.html

Picture of a Homemade glow plug reamer
http://www.peachparts.com/shopforum/2308017-post14.html

Homemade glow plug reamer?
http://www.peachparts.com/shopforum/diesel-discussion/262239-homemade-gloplug-reamer.html





Engine Mechanical

tool needed, cylinder liner removal tool for the 5 cylinder 617 diesel
http://www.peachparts.com/shopforum/diesel-discussion/310117-tool-needed-cylinder-liner-removal-tool-5-cylinder-617-diesel.html

Mercedes harmonic balancer home made lock tool for center bolt removal
Mercedes harmonic balancer home made lock tool for center bolt removal - YouTube

diy Harmonic balancer puller
http://www.peachparts.com/shopforum/general-information/318594-diy-balancer-puller.html

380SL Tension Rail Pin Removal
380SL Tension Rail Pin Removal - PeachParts Mercedes ShopForum

Home Made M103 Valve Spring Compressor (post# 6 and # 14.
Tools - PeachParts Mercedes ShopForum

Home made flywheel lock 103 engine 1991 190E 2.6L (post# 13)
M103 Help How Do You??? - PeachParts Mercedes ShopForum

Self-made tool: Timing Chain loader
Self-made tool: Timing Chain loader - PeachParts Mercedes ShopForum

Valve wrench info
Home made Valve adjustment wrench info - PeachParts Mercedes ShopForum

Pictorial - Make valve adjustment wrenches
Pictorial - Make valve adjustment wrenches - PeachParts Mercedes ShopForum

Make your own valve test gauge (V8)
Make your own valve test gauge (V8) - PeachParts Mercedes ShopForum

Exhaust

Special tool for running your diesel engine without the Turbo installed
http://www.peachparts.com/shopforum/diesel-discussion/348079-special-tool-running-your-diesel-engine-without-turbo-installed.html


Fuel Delivery

46MM = 1 13/16 socket

Northern Industrial JUMBO Socket — 46mm, 3/4in. Drive
http://www.northerntool.com/shop/tools/product_200384626_200384626?cm_mmc=Google-pla-_-Hand%20Tools-_-Sockets-_-558712&ci_sku=558712&ci_gpa=pla&ci_kw={keyword}
1 13/16 socket - Google Search

Daft W123 300D nut and bolts sizes
http://www.peachparts.com/shopforum/diesel-discussion/295814-daft-w123-300d-nut-bolts-sizes.html


Fuel Injection

Steering

Stuck Key (home made tumbler release tool)
Stuck Key - PeachParts Mercedes ShopForum

Suspension

My inexpensive w123 spring compressor
http://www.peachparts.com/shopforum/diesel-discussion/324349-my-inexpensive-w123-spring-compressor.html

Home-made $15 W124 rear knuckle - LCA Bushing Tool
http://www.peachparts.com/shopforum/2749405-post21.html
http://www.peachparts.com/shopforum/diesel-discussion/238702-124-carrier-bushing-r-r.html
http://www.peachparts.com/shopforum/diesel-discussion/300339-mercedes-w124-rear-suspension-guide.html

W123 wagon rear trailing arm bushings R&R (trailing arm bushing tool)
W123 wagon rear trailing arm bushings R&R - PeachParts Mercedes ShopForum

Homemade Spring Compressor
Homemade Spring Compressor - PeachParts Mercedes ShopForum

How I ended up fitting the bushings to my W123 300D LCA
How I ended up fitting the bushings to my W123 300D LCA - PeachParts Mercedes ShopForum

Making the Mercedes shock absorber tool
Making the Mercedes shock absorber tool - PeachParts Mercedes ShopForum

About to replace front shocks on W107
About to replace front shocks on W107 - PeachParts Mercedes ShopForum

16vlv front lower control arm bushings
16vlv front lower control arm bushings - PeachParts Mercedes ShopForum

Ball joints done! (home made lower ball joint press tool)
Ball joints done! - PeachParts Mercedes ShopForum

Lower Ball Joint Separator for W123
http://www.peachparts.com/shopforum/diesel-discussion/323469-lower-ball-joint-separator-w123.html

Ball joint replacement using HF kit and home made adapter
http://www.peachparts.com/shopforum/diesel-discussion/333726-ball-joint-replacement-using-hf-kit-home-made-adapter.html

Homemade strut socket tool
Homemade strut socket tool - Benzworld.org - Mercedes-Benz Discussion Forum

18.00 for a wheel mount guide?
http://www.peachparts.com/shopforum/showthread.php?p=1319847

Transmission and Differential

W210 Homemade dipstick for 722.6 transmission
W210 Homemade dipstick for 722.6 transmission - Benzworld.org - Mercedes-Benz Discussion Forum

Slip Joint Removal Tool
Slip Joint Removal Tool - PeachParts Mercedes ShopForum

Diagnostic TOOLS

Home brew code reader
Home brew code reader - PeachParts Mercedes ShopForum

FYI: Free vacuum pump for testing.
FYI: Free vacuum pump for testing. - PeachParts Mercedes ShopForum


.

__________________
ASE Master Mechanic
asemastermechanic@juno.com

Prototype R&D/testing:
Thermal & Aerodynamic System Engineering (TASE) Senior vehicle instrumentation technician.
Noise Vibration and Harshness (NVH).
Dynamometer.
Heat exchanger durability.
HV-A/C Climate Control.
Vehicle build.
Fleet Durability
Technical Quality Auditor.
Automotive Technical Writer

1985 300SD
1983 300D
1984 190D
2003 Volvo V70
2002 Honda Civic

https://www.boldegoist.com/

Last edited by whunter; 06-13-2016 at 04:30 AM.
Reply With Quote
  #2
Old 06-26-2006, 10:31 PM
:::

Join Date: Jul 2003
Location: Alberta
Posts: 268
Quote:
Originally Posted by BrierS
I realize this is a DIY project . . . however, w/o the proper tool is this really a job better left to a shop? I have read a number of the threads and the press issue (battle) leaves me thinking unless I want to buy the CORRECT press, I might be better off leaving this to a good shop. What are the current opinions, please.
Steve
I did this myself 2 weekends ago. Take your time and it's not a bad job at all. The rusted-on bolts were the worst part of the job, not the ball joint. I left the A-arm on the car, blocked it up with wood, and put a chain through the spring for safety just in case.

Check out the instructions at http://www.peachparts.com/Wikka/W124BallJoint if you haven't done so already. They're well written and easy to follow.

To get the old joint out, I sliced it straight across using an angle grinder with a thin cutoff blade. I cut it very close to the A-arm (takes under 2 minutes to cut it off clean), and then used a 2-arm gear puller to press it out (there are little tabs on the A-arm that the gear puller can grab). Cutting it off gave a solid flat surface to press against.

I also heard all of the press-not-fitting-right stories, so to put the new joint in, I made my own press out of a big C-clamp and some pieces of 4x4 drilled out to fit the profile of the ball joint. I reinforced each side of the 4x4 with aluminum plate to provide a more solid surface to press against, and marked the top and bottom of the pieces with center marks so that I could align the clamp to apply pressure evenly. It worked great; see the attached photos - they may explain it better.
Attached Thumbnails
Home Made Special Tools, This is where members can share how they made special tools-balljoint1.jpg   Home Made Special Tools, This is where members can share how they made special tools-balljoint2.jpg
__________________

1989 250TD Wagon 5-speed, 160,000mi ::: Dark gray metallic / black cloth
1984 190D-2.2 5-speed, 287,000mi ::: Silver-blue metallic / black MB-tex ::: SOLD
Reply With Quote
  #3
Old 12-09-2008, 10:03 PM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,416
Home Made Special Tools, This is where members can share how they made special tools

duplicate

Last edited by whunter; 06-30-2012 at 01:31 AM.
Reply With Quote
  #4
Old 01-08-2009, 09:54 PM
1984 300SD

Join Date: Feb 2007
Location: Vancouver BC
Posts: 588
240D IP turning tool

Here is the rig I used to rotate the IP on my 240D.
The round notch fits around the #1 element fitting with a little clearance.
The left and right bolts tighten the rig to the square front end. The fixed bolt on top is for a long wrench to act as a push bar. If anyone can use this tool it is yours for the cost of shipping.
My IP rig for my 300D is on loan. When I get it back I will post a pic. It looks much this one but thinner to clear the oil dip stick. No nut on top, instead a 1" x 3" pipe welded on top. Stick in the jack handle and push. The rig is held in place by a 3/8" set screw on the inboard side instead of the 2 bolts as on the 240D tool.. The outboard side of the channel has a small hook that goes under the edge of the front of the IP square by just 1/8". I tried to rig a push device against the fender wall but it was in the way to tighten the easy front nut so gave up on that Idea. The rotation to set the IP is so little the steel lines are only a small problem. After my adjustment I undid the top nuts and bent the lines to fit without any tension. I have had 3 MB cars and the pump needed a little advance on all 3 for better performance and fuel economy. I think MB sets conservative.
Have fun.
__________________
1984 300SD turbo 126
"My true love"

God made me an atheist and who am I to question His wisdom

Last edited by The Gears; 07-31-2011 at 03:31 PM.
Reply With Quote
  #5
Old 08-29-2009, 01:37 AM
Registered User

Join Date: May 2007
Location: Out in the Boonies of Hot, Dry, Dusty, Windy Nevada
Posts: 9,652

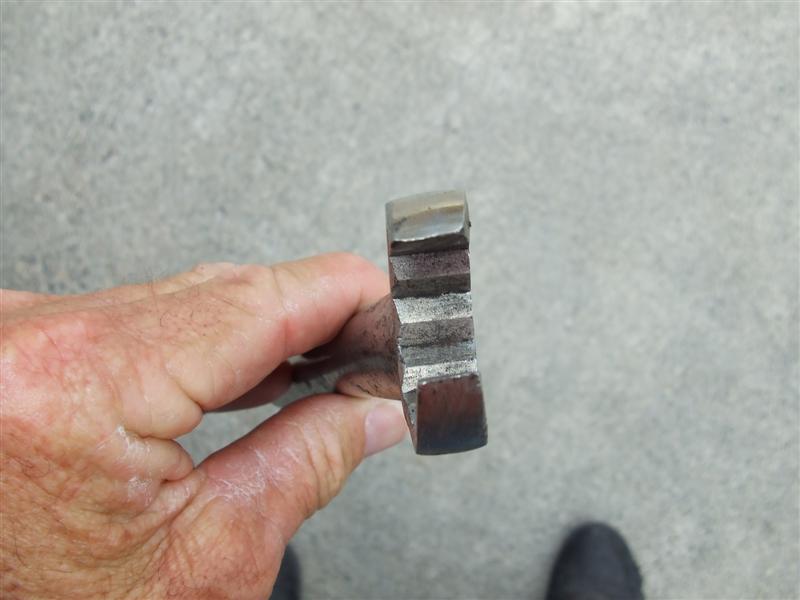

OM617 Engine Oil Cooler Line WRENCH

Since I didn`t have a 27mm, I used a 1 1/16in. Cut out the width on the pipe.

One side has to be ground down to clear the injection Pump. wrench is
8 inches long.

Use a 7/8 open end on the cooler as a back up to take the stress off the cooler incase the nut is corroded on.

cooler is aluminium with steel oil cooler line nut.

Use Anti-seiz on the threads when replacing the lines.

There is a fix from MB called "Screwed Nipples" (for real) if the oil cooler threads get stripped.

Charlie
Attached Thumbnails
Home Made Special Tools, This is where members can share how they made special tools-oil-cooler-line-wrench-007-medium-.jpg   Home Made Special Tools, This is where members can share how they made special tools-oil-cooler-line-wrench-2-009-medium-.jpg   Home Made Special Tools, This is where members can share how they made special tools-oil-cooler-line-wrench-013-medium-small-.jpg   Home Made Special Tools, This is where members can share how they made special tools-oil-cooler-line-wrench-016-medium-.jpg
__________________
there were three HP ratings on the OM616...

1) Not much power
2) Even less power
3) Not nearly enough power!! 240D w/auto

Anyone that thinks a 240D is slow drives too fast.

80 240D Naturally Exasperated, 4-Spd 388k DD 150mph spedo 3:58 Diff

We are advised to NOT judge ALL Muslims by the actions of a few lunatics, but we are encouraged to judge ALL gun owners by the actions of a few lunatics. Funny how that works

Last edited by whunter; 09-01-2009 at 09:52 AM. Reason: copied to this thread
Reply With Quote
  #6
Old 11-23-2009, 01:44 PM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
What about this one?

I'm about to try out this one that seems to be missing from the list

http://www.peachparts.com/Wikka/OM617CrankshaftSeal
Reply With Quote
  #7
Old 11-23-2009, 02:23 PM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,416
Yes

Quote:
Originally Posted by Army View Post
I'm about to try out this one that seems to be missing from the list

http://www.peachparts.com/Wikka/OM617CrankshaftSeal
it works, and beats the $70.00 MB special tool IMO.
Reply With Quote
  #8
Old 11-23-2009, 02:48 PM
toomany MBZ's Avatar
Registered User

Join Date: Nov 2006
Location: central Va
Posts: 7,820
^ Cool, thanks.
__________________
83 SD

84 CD
Reply With Quote
  #9
Old 12-02-2009, 06:27 PM
Registered User

Join Date: Jan 2009
Location: Coquitlam, bc, canada
Posts: 63
what does everyone use for the torque capsule adjustment?
__________________
93 b2200 EFI turbo, reg cab/short box, F2t swap build thread here
92 B2600i Cab plus getting a 82 3.0L 5cyl 617 mercedes Turbo Diesel build thread here
96 GMC 1500 z71 4x4 6.5L turbo diesel
Diesel all the way!!!
Reply With Quote
  #10
Old 12-03-2009, 12:39 PM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,416
More data please

Quote:
Originally Posted by dealwithit View Post
what does everyone use for the torque capsule adjustment?
Year, make, model.
Picture of what you are calling a torque capsule would really help.
Reply With Quote
  #11
Old 12-20-2009, 12:27 AM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,416
Heat-shield removal Tool

Special Tool:
A three inch long lag bolt works great for pulling heat-shields.

A quarter or half turn to seat it, then rock it until the shield breaks loose.
Attached Thumbnails
Home Made Special Tools, This is where members can share how they made special tools-1-4x6hexlagbolt1_yth64t46t4y.jpg
Reply With Quote
  #12
Old 12-29-2009, 02:51 PM
1984 300SD

Join Date: Feb 2007
Location: Vancouver BC
Posts: 588
Brake pad and center bearing puller

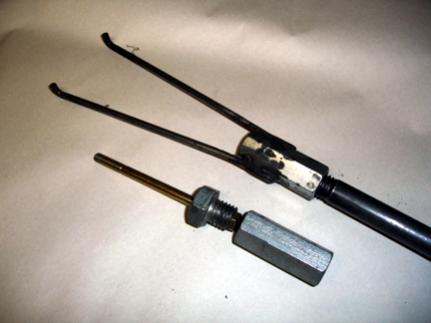

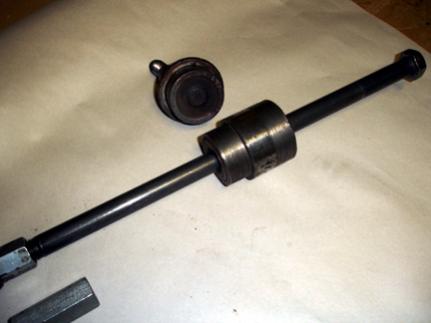

A 5/8" x 14" bolt and a sliding weight makes a good slam hammer. The two rods with a bend on the end will hook into the holes in the brake pads. One slam and the pad slides out.
The other attachment holding the small bolt is used for pulling the pins for timing chain work. The weight is turned to fit a lower support joint to hammer it out.

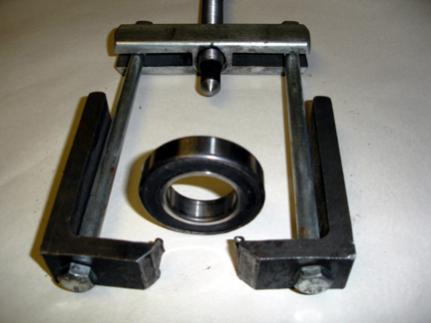

The long reach puller is for pulling the center drive shaft bearing. Make the hooks to pull against the inner collar to save the bearing. The angle pieces were cut at the MetalMart for $5.00 for the pair.

Dropping the differential is a lot easier when it is secured to the floor jack. The hand is 1/8" plate. the two holes match the two bottom bolts on the diff door. Drain the oil first.
Attached Thumbnails
Home Made Special Tools, This is where members can share how they made special tools-300d-brake-pad-puller.jpg   Home Made Special Tools, This is where members can share how they made special tools-300d-14-inch-bolt.jpg   Home Made Special Tools, This is where members can share how they made special tools-300d-bearing-puller-parts.jpg   Home Made Special Tools, This is where members can share how they made special tools-300d-trani-hand-jack.jpg   Home Made Special Tools, This is where members can share how they made special tools-300d-center-bearing-puller.jpg

__________________
1984 300SD turbo 126
"My true love"

God made me an atheist and who am I to question His wisdom
Reply With Quote
  #14
Old 02-03-2011, 11:07 PM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,416
This 19 MM ALLEN tool is needed to remove the blank off plug from the engine block heater port.


http://www.pts-tools.com/

KP3035279 1 Snap-On/Williams - 19mm Hex Bit Socket Standard Length 1/2 Drive
Price: $14.40

Part Number: KN5310988
Description: Bondhus Ball End Hex Key -- 19mm Long Arm 11-1/4'' Arm Length
Brand: Bondhus
MFG Part #: 10988
Availabilty: 8
Price: $24.35
http://www.pts-tools.com/


http://www.mcmaster.com/#metric-allen-wrenches
Metric Sizes
19 mm 10 13/16" 5503A56 $19.64
http://www.mcmaster.com/#metric-allen-wrenches
Reply With Quote
  #15
Old 02-10-2011, 12:46 PM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,416
FYI

Some of this data may give you ideas on how to make a special tool.

Handy Farm Devices and How to Make Them
http://journeytoforever.org/farm_library/device/devicesToC.html#contents

Reply With Quote
Reply

Bookmarks

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On




All times are GMT -4. The time now is 06:24 AM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2024, vBulletin Solutions, Inc.
Search Engine Optimization by vBSEO 3.6.0
Copyright 2024 Pelican Parts, LLC - Posts may be archived for display on the Peach Parts or Pelican Parts Website -    DMCA Registered Agent Contact Page
