Congratulations - I hope you can enjoy the car again after all of this

__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!

She's been driving so well that I decided to open her up after triple checking fluid level prior to make sure it hadn't dropped at all since the original fill. And of course warming her up plenty....Looks good to me

300te trans rebuilt - YouTube

__________________
2016 Monsoon Gray Audi Allroad - 21k
2008 Black Mercedes E350 4Matic Sport - 131k
2014 Jeep Wranger Unlimited Sahara - 62k
2003 Gray Mercedes ML350 - 122k

Now only that wobbling speedo to fix...

__________________
2009 Mercedes ML320 Bluetec

No doubt, the 92 500sl I just got has a rebuilt tranny in it. And after only 4k miles, the governor already failed.
Waiting to hear back from the PO and see if they'll cover the repair.
All I have is 1st and reverse now.

__________________
91 MBZ 300TE 4M 91 Jag XJS V12 94 Alfa Romeo 164 LS 80 BMW 320i 85 BMW 528e 86 BMW 325e 88 BMW 325e 88 BMW 325i 89 BMW 325ix 95 BMW 525i 96 BMW M3 78 Fiat Spyder 124 98 Land Rover D1 LSE 98 Range Rover HSE 4.6 93 MBZ 190E 2.6 96 MBZ C280 93 MBZ 400E 90 MBZ 300ce 71 MGB-GT 91 VW Corrado G60 97 328i 99 E320 Wagon 97 E320

https://lh3.googleusercontent.com/-t...r+sig+copy.jpg

It's funny you mentioned Sunvalley Transmissions...
I just spoke with the PO of my car and he said that's where he got the tranny rebuilt at. After around 4k miles the gov' has already failed.

It's been under two years since it was installed by a local shop that gets their trannies from them, so it should be covered under warranty.
Hopefully...

Hello all, just figured I would share something to save someone a big headache. I just fixed a 722.3 transmission on a 1991 350 SDL w126 that would not shift out of 2nd gear, car only has 80k miles on it. I don't know where it came from but a small piece of plastic got sucked up into the secondary oil pump and jammed it causing the end of the pump shaft to shear off leaving all kinds of damage and metal pieces, it also sheared the hardened pin off inside the governor. Dealer wanted over $400 for the oil pump and almost $300 for the governor.

The fix was to eliminate the secondary oil pump by buying the block off plate, gasket and screws from the 1992 S350 Diesel W140 body from the dealer (PARTS TOTAL WAS $36). Then I brought the Governor to my friends machine shop and we drilled through the collar of the gear and a tiny bit into the shaft, tapped and installed set screws with locktite and peened the heads.

Transmission shifts like new again...

Update: It took some emails and phone calls but had gotten the tranny warrantied. All I had to do was the R&R myself. Found out whomever installed it originally had dropped a portion of the filmed seal from the tranny fluid container into the tranny and it eventually caused the governor to explode.
Thank you Marc @ Sun Valley Mercedes Transmissions for the quick no cost replacement YOU ROCK !

Pulled old to get the new. Took only ten days turn around with shipping (from N. NV to S. CA).



Jacked up in the garage ready for new tranny
rope was used to tie the exhaust ( onto the work bench) out of the way
even with taller 6 ton jack stand I had to remove the tranny from the jack to clear engine and slide it out on a blanket
no worries the tranny is about 120 lbs and I'm used to lifting weights at the gym

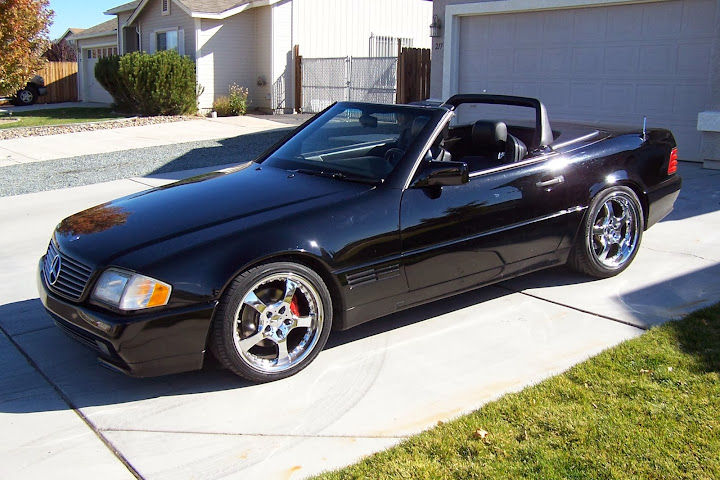

Good to go, ready for another 100k miles (on H&R sport springs and 18s, handles like a go-cart in corners)
though I ended up selling to a local and bought a 97 BMW 328i convertible the same color
endless process with me, buy/trade, upgrade/fix, repeat... now trying to trade my BMW for a Boxster
