Cluster Upgrade: Plasma Gauge dial + Illuminated Lexan Needles

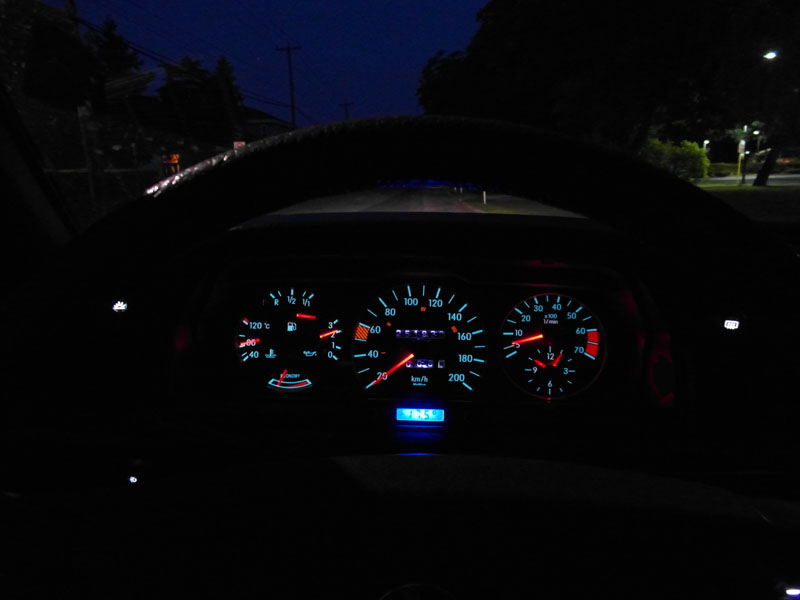

Got a bit bored of my led upgrade from 3 years ago. Finally broke down & decided to upgrade my cluster with plasma gauge dials + illuminated lexan needles.

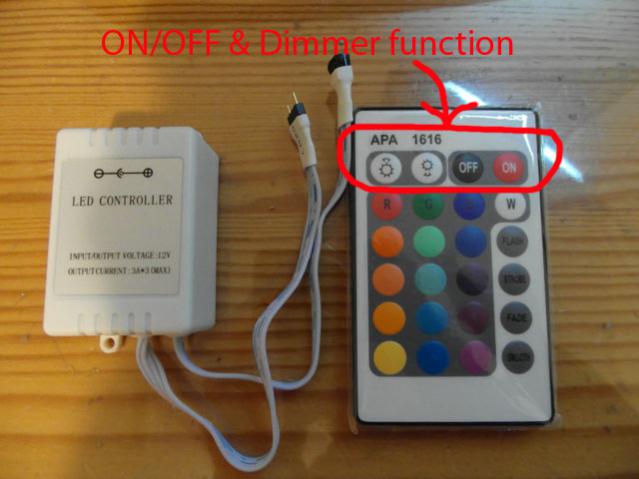

Decided to also use a wireless IR controller + remote to control dimming & on/off functions wirelessly. Just sitting on work bench waiting to be installed.....
__________________
86' 190E 2.3L |
#2
|
|||
|
|||

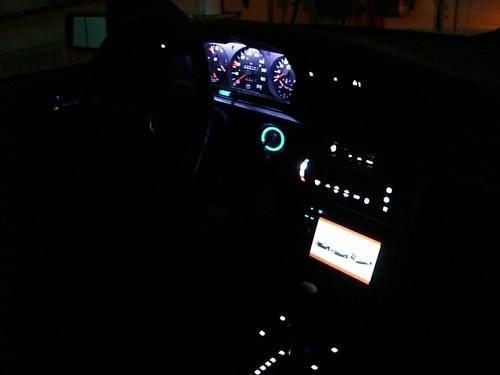

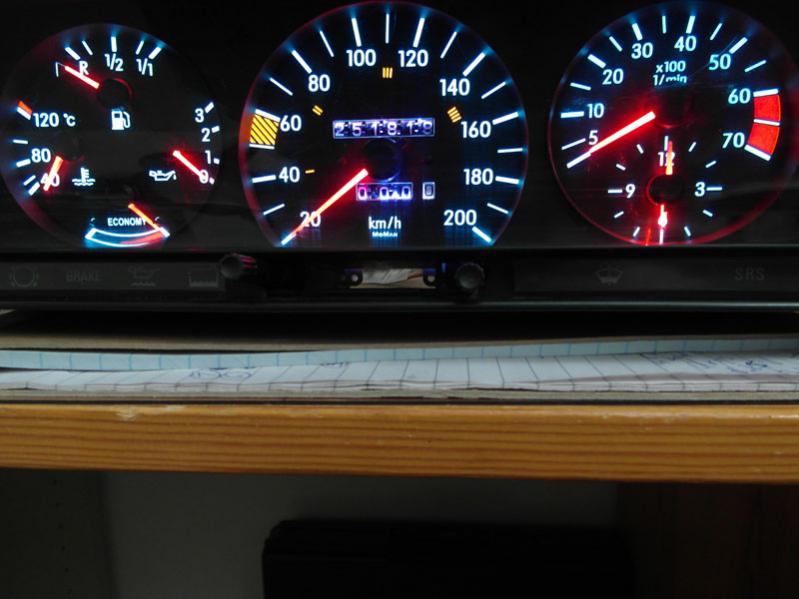

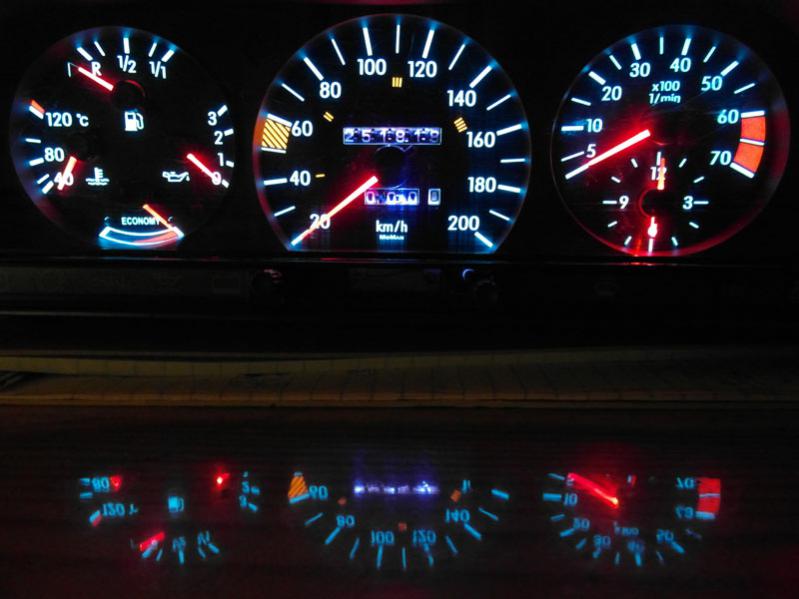

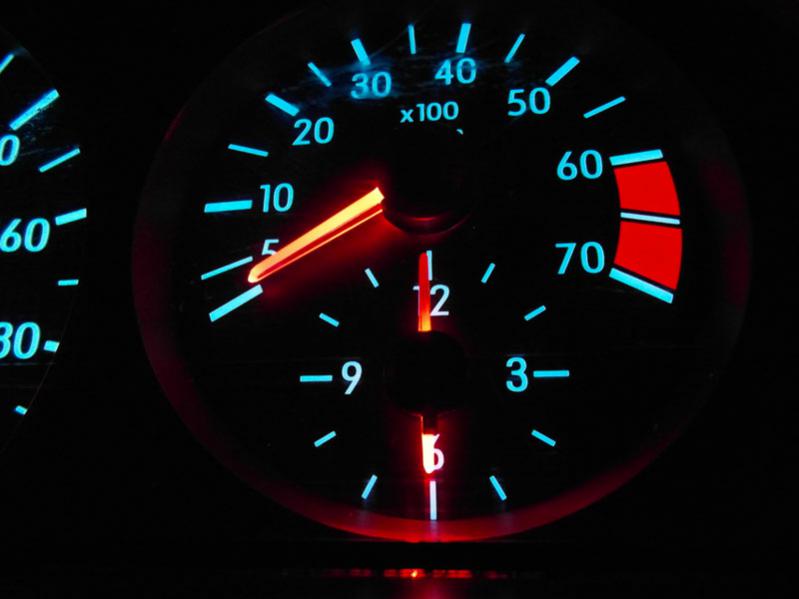

More pics....
The last pic shown has been dimmed with remote. .
__________________
86' 190E 2.3L |
#3
|
||||
|
||||
That is extremely good looking. Wow! The gauges really come to life with a modern look when backlit like that!
__________________
-diesel is not just a fuel, its a way of life- '15 GLK250 Bluetec 118k - mine - (OC-123,800) '17 Metris(VITO!) - 37k - wifes (OC-41k) '09 Sprinter 3500 Winnebago View - 62k (OC - 67k) '13 ML350 Bluetec - 95k - dad's (OC-98k) '01 SL500 - 103k(km) - dad's (OC-110,000km) '16 E400 4matic Sedan - 148k - Brothers (OC-155k) |
#4
|
||||
|
||||
Looks pretty nice. I'm not familiar with these lighting mods, so what did you do and how much did it cost? I think that would look great in my 190d
__________________
Current: 1975 450SEL, 83 300D, 88 Yugo GVX, 90 300D OM603 swap, 91 F150 4.6 4v swap, 93 190E Sportline LE 3.0L M104 swap, 93 190E Sportline LE Megasquirt, 03 Sprinter, 06 E500 4Matic wagon. |
#5
|
|||
|
|||
This gets my vote for the coolest mod of 2013.
__________________
600SEL '91 300E 4Matic '88 240D '83 280SE '77 350SE '73 The most complex systems can fail in the simplest way. Contra verbosus noli contendere verbis, sermo datur cunctis, animi sapientia paucis. i don't believe in the lord! He's never bought me a Mercedes Benz. |
#6
|
|||
|
|||
Quote:
Quote:

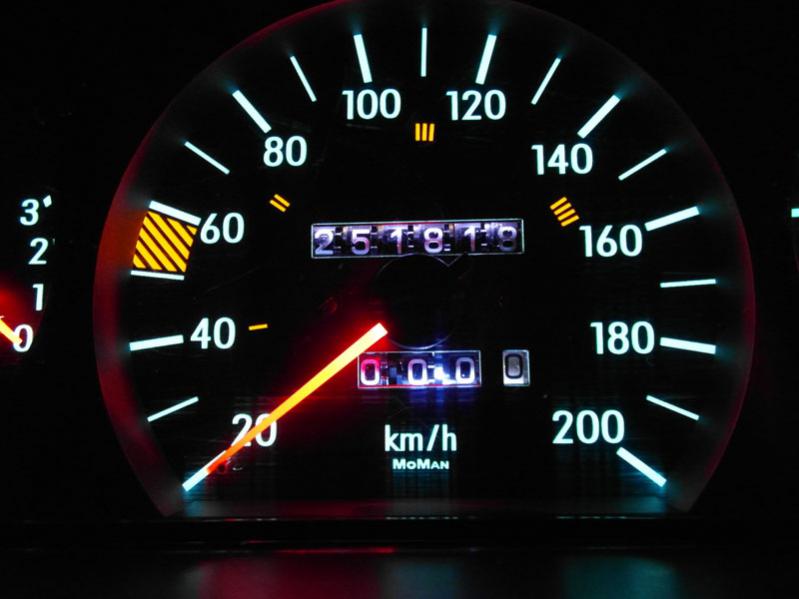

Plasma gauges: Mercedes 1) Plasma gauge dial install is straight forward, you just use double sided tape to adhere the overlays over your existing gauge dials. 2) But problem is, the odometers & needles are not lit. 3) You can add leds to illuminate the odometers. 4) You can paint the needles with fluorescent paint & use UV led from up top to illuminate the needles.....OR you can install illuminated Lexan needles. Lexan needles: Gauge Glow Needles Kits | LED Lexan Needles 1) These Lexan needles are NOT meant/design for our clusters. A lot of custom work/mods to the cluster required, all lexan needles had to be modded/custom made, a lot of hiccups along the way had to be resolved. 2) The Lexan needles are NOT a plug & play install!!! It's ALL custom....
__________________
86' 190E 2.3L |
#7
|
||||
|
||||
This is a pretty slick mod. I do like the back lit gauges, very cool.
I am curious about the lexan needles, I wonder about the weight difference and the effects on accuracy. I doubt its substantial, still curious though.
__________________
Cruise Control not working? Send me PM or email (jamesdean59@gmail.com). I might be able to help out. Check here for compatibility, diagnostics, and availability! (4/11/2020: Hi Everyone! I am still taking orders and replying to emails/PMs/etc, I appreciate your patience in these crazy times. Stay safe and healthy!) 82 300SD 145k 89 420SEL 210k 89 560SEL 118k 90 300SE 262k RIP 5/25/2010 90 560SEL 154k 91 300D 2.5 Turbo. 241k 93 190E 3.0 235k 93 300E 195k |
#8
|
||||
|
||||
High Five - very good Mod
__________________
BENZ THERE DONE THAThttp://www.peachparts.com/shopforum/...c/progress.gif 15 VW Passat TDI 00 E420 98 E300 DT 97 E420 Donor Car - NEED PARTS? PM ME! 97 S500 97 E300D 86 Holden Jackaroo Turbo D 86 300SDL (o\|/o) |
#9
|
|||
|
|||
Both, the original needles & lexan needles....the needle itself is very very light! All the weight (even this is nothing really) is on the base & is balanced at the pivot. So because of this, weight shouldn't be an issue on accuracy.
What is important is when installing the needles, the needles are pointed at the EXACT same spots as before.....especially the ones with the backstop. But with that said, the true test will be after I install the cluster back into the car & test it.
__________________
86' 190E 2.3L |
#10
|
|||
|
|||

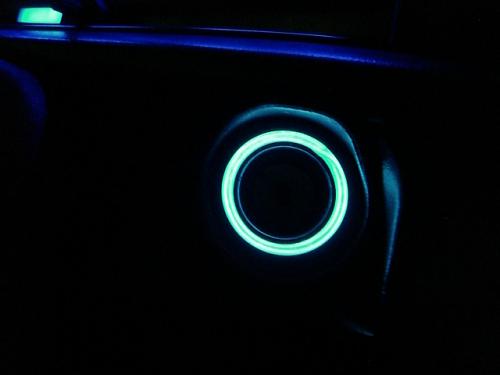

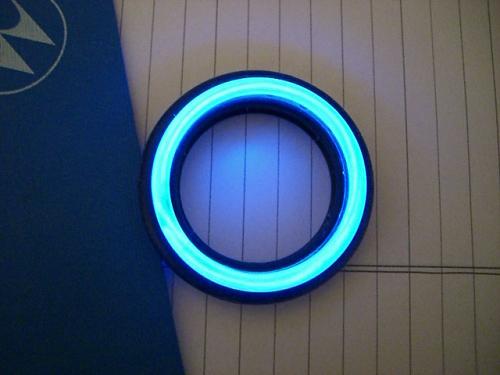

Illuminated Ignition Trim Ring

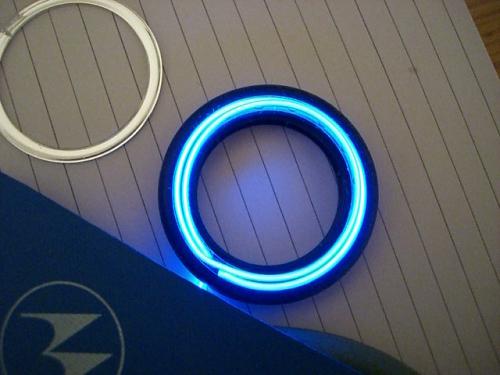

Add some EL wire, illuminated ignition trim ring....
.
__________________
86' 190E 2.3L |
#11
|
|||
|
|||

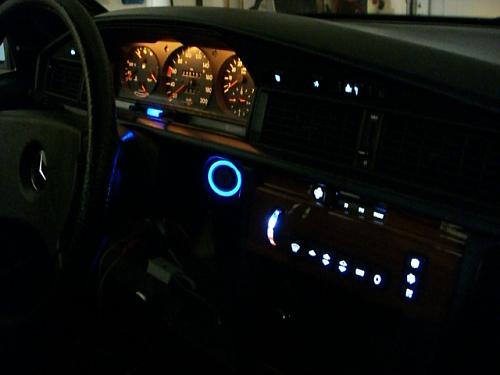

More pics, trim ring installed....
.
__________________
86' 190E 2.3L |
#12
|
|||
|
|||
Quote:
The speedo is accurate, BUT the RPM is NOT...it's NOT idling at 750 like it should. To solve this hurdle, I had to add counter weight & adjust the RPM sensitive pot.
__________________
86' 190E 2.3L |
#13
|
||||
|
||||
Man that looks fantastic! I might have to pick a set of these up. The pricing seems quite reasonable.
-J
__________________
1991 350SDL. 230,000 miles (new motor @ 150,000). Blown head gasket Tesla Model 3. 205,000 miles. Been to 48 states! Past: A fleet of VW TDIs.... including a V10,a Dieselgate Passat, and 2 ECOdiesels. 2014 Cadillac ELR 2013 Fiat 500E. |
#14
|
|||
|
|||

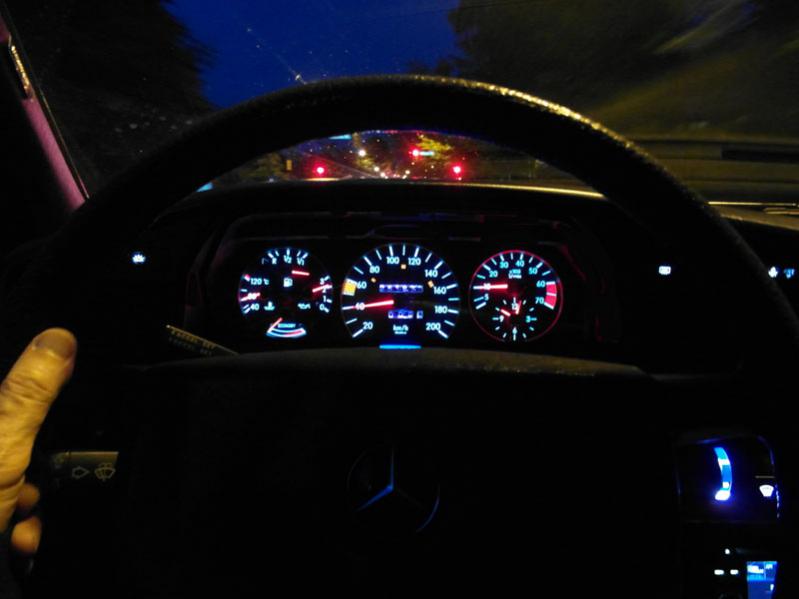

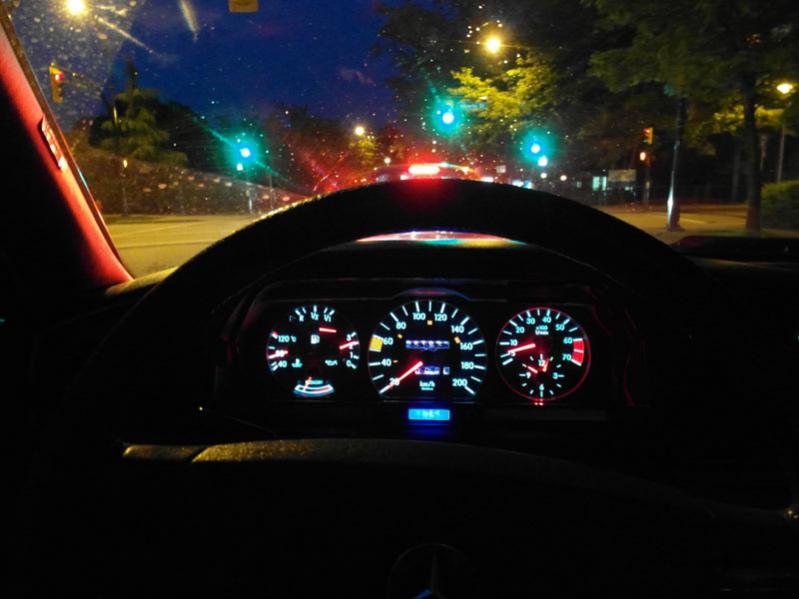

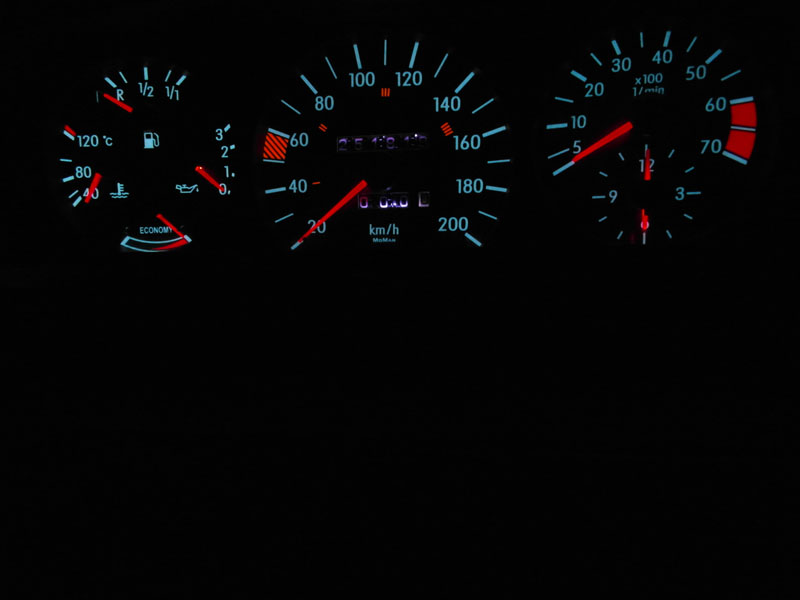

Final post.....

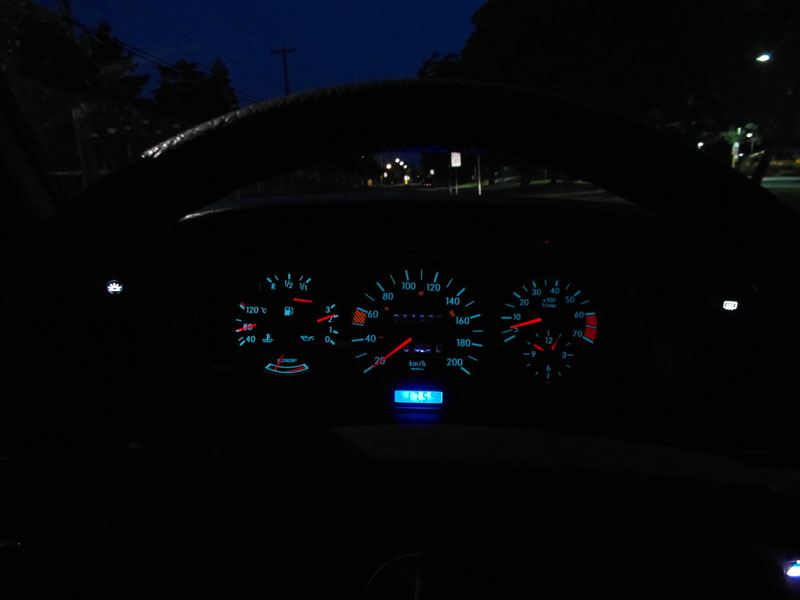

Installed, BUT if you noticed...I'll need to pull cluster out once more to re-seat the needle for gas & oil pressure. The 1st 3 pics, full brightness (7/7 - 7 step dimming) The 4th pic, dimmed (3/7 - 7 step dimming) The 5th pic, dimmest (1/7 - 7 step dimming)
