Hi guys....this is my first post......'94 E420 ~70K
I have a simple problem.....
Does anyone out there know where the auxiliary fuse (F22/2) for the telephone (CTEL in Merc language)connection in the armrest cubbyhole is located. The CD says that it is next to the fuse and relay box...but I have looked in the fuse & relay box & around the box and cannot find the fuse..... It is supposed to be 7.5A.

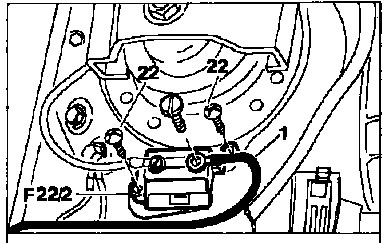

It should be on the right side damper strut dome

Attached Thumbnails



Thanks for the speedy reply. I had thought that maybe that was the correct fuse even though it didn't agree with the info on the CD which I assume is only current through '92 model year. BUT I had already replaced that fuse and still have no power to the phone connector. Any thoughts?? I'll get after it with a multimeter this weekend and try and track this down....

It's only supposed to be a 7.5 amp fuse, that thing looks like a 30 amp strip fuse. Not that I have any better info on the location....

Gilly
