I finally finished it.. after procrastinating for 2 weeks... hehehe..

after countless times looking for the right materials..

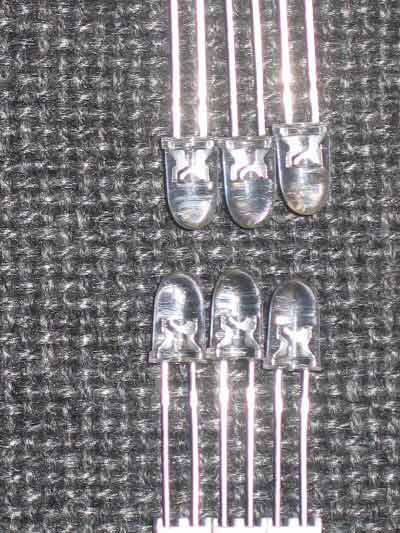

after 6 hyper white LEDS
after 2 50 OHM resistors which was later scrapped and replaced with 2 150OHM resistors
after 8 pcs of pin connectors
after soldering the pieces together...
finally did it.

i'm quite happy with the results... though i think i still have to re-adjust the focus of the LEDS to fully light up the dash...

the only problem is.. now it doesnt match my lights up front.. eheh. dunno maybe its just me being OC...i think i need to buy me some hyper white H4 bulbs...

Attached Thumbnails



__________________
Mike

----------------------------------
1975 200 - Sold (no pix);
1978 200 - Sold - http://www.pbase.com/hboy/redbaron
1979 300TD - Sold
http://www.pbase.com/hboy/greenwagon
http://www.geocities.com/hboy726/300TD.html
1985 230E - now my daily driver...

and the final result is...

Attached Thumbnails



__________________
Mike

----------------------------------
1975 200 - Sold (no pix);
1978 200 - Sold - http://www.pbase.com/hboy/redbaron
1979 300TD - Sold
http://www.pbase.com/hboy/greenwagon
http://www.geocities.com/hboy726/300TD.html
1985 230E - now my daily driver...

Nice LED project. I'm thinking of doing the same to my SDL since some of the window switches and dash lights are burned out. I'm really not looking forward to ripping everything apart though.

Wow shes bright. You can even read the odometer without turning on the cabin lights.

__________________
Adam Lumsden
(83) 300D
Vice-President of the MBCA International Stars Section

That is great. Mine are really not very good.

Is there any chance of a wiring diagram as to how you put it all together? Wiring is not my strong point. But I can read and follow directions!!!!

Thanks,

Stephen

__________________
85 300D 305K miles WVO(105K so far), Mine
82 300SD 235K miles BIO-D, Wifes
96 F250 SC PSD 4X4 285K MILES BIO-D, Ours
89 BRONCO 182K MILES sold
Finally Compression Ignition Only!

I agree with Stephen. Directions for the electrically challenged. Looks excellent, by the way. I see somebody else out there doesn't have a tach.

__________________
Jimmy L.
'05 Acura TL 6MT
2001 ML430 My Spare

Gone:
'95 E300 188K "Batmobile" Texas Unfriendly Black
'85 300TD 235K "The Wagon" Texas Friendly White
'80 240D 154K "China" Scar engine installed
'81 300TD 240K "Smash"
'80 240D 230K "The Squash"
'81 240D 293K"Scar" Rear ended harder than Elton John

That is so pretty!
My lights are competely dead, tell more!
How much is that stuff?

__________________
Think Alternative Energy!
300CD '80 (now gone but not forgotten...)

Why is it necessary to use a resistor? are the leds that delicate?

I put a red multi LED light in my boat last year I just wired it normally into the 12v system, (maybe it had a resistor built into the plastic case?)

thanks,
Robert


Ps. Looks great BTW! In my jeep I use a flashlight to peer at the last 2 working gauges.

__________________
Cheers,
Robert

See Brandon314159's post earlier. One selects an appropriate resistance to get the desired current flow for the LED. As he points out, too much current will damage them.

Just bookmarking this thread here
