Will I have a Problem, 240D air filter cover gasket

I have a 1981 240D and went to replace the air filter.

When I took off the lid, the gasket in the lid fell apart.

Anyway, I just put the lid back on and started driving.

While putting the lid back on, it seems that when the lid is screwed down,and the clamps are down, that the filter is sealed against the lid. I don't think any unfiltered air is getting into the engine.

Is my thinking, correct? If not, then where to find the gasket that goes in the lid?

Bob
1981 240D

Reply With Quote
  #2
Old 11-10-2010, 07:42 PM
JEBalles's Avatar
Registered User

Join Date: Jun 2008
Location: Carlisle, MA
Posts: 1,225
Gasket in the lid? I haven't seen that, either on my 616 or 617. I'm pretty sure it seals on the lid.
__________________
1983 240D 3.0T 4-speed manual, now sold

1989 Subaru GL Wagon 5-speed Touring Edition
Reply With Quote
  #3
Old 11-10-2010, 09:55 PM
t walgamuth's Avatar
dieselarchitect

Join Date: Apr 2005
Location: Lafayette Indiana
Posts: 38,613
The "gasket" was prolly the top of the filter fallen off. I'd get another filter right away and put it in.
__________________
[SIGPIC] Diesel loving autocrossing grandpa Architect. 08 Dodge 3/4 ton with Cummins & six speed; I have had about 35 benzes. I have a 39 Studebaker Coupe Express pickup in which I have had installed a 617 turbo and a five speed manual.[SIGPIC]

..I also have a 427 Cobra replica with an aluminum chassis.
Reply With Quote
  #4
Old 11-10-2010, 11:22 PM
bustedbenz's Avatar
Registered User

Join Date: Feb 2007
Location: Valle Crucis, NC
Posts: 2,283
No, no. There was originally a gasket that helped the metal lid seal down on the air box. It's NLA from the dealer last time I tried to order one from Peachparts, and mine is completely missing on my 617 and shredded into pieces on my 616. Most of them probably rotted away and couldn't be replaced years ago. But my 240 definitely has the pieces left... there used to a rubber seal around the inner rim of the air filter cover.
__________________


~Michael S.~
Past cars:

1986 300SDL
1987 300SDL
1982 240D
1982 300SD


Current:

1987 300SDL
Reply With Quote
  #5
Old 11-10-2010, 11:22 PM
bustedbenz's Avatar
Registered User

Join Date: Feb 2007
Location: Valle Crucis, NC
Posts: 2,283
I have a Mac or I'd pull up the EPC. Maybe somebody with Windows could pull up the air cleaner and see if there's a factory part # for that gasket just to prove it existed at one time.
__________________


~Michael S.~
Past cars:

1986 300SDL
1987 300SDL
1982 240D
1982 300SD


Current:

1987 300SDL
Reply With Quote
  #6
Old 11-10-2010, 11:38 PM
QS23's Avatar
Noob

Join Date: Dec 2009
Location: Kalamazoo, MI
Posts: 101
I've pulled up the EPC... there are two gaskets listed for my 83...

A0010945280
A0010947180

But it's NLA for anything before '82.

Also, does anybody know what

"TOP TO 011 094 29 02, 011 094 75 02"

means?
__________________
1983 Benz 240D - 263,060 (Current)
1983 Cadillac DeVille - 130,000 (Scrapped - Stupid HT4100)
1992 Dodge B350 - 150,000 (Sold)
1984 Mazda 626 - 299,997 (Scrapped)
Reply With Quote
  #7
Old 11-11-2010, 11:37 AM
LarryBible
Guest

Posts: n/a
Even if any of it did make into the engine, it should be digestible.
Reply With Quote
  #8
Old 11-11-2010, 01:47 PM
toomany MBZ's Avatar
Registered User

Join Date: Nov 2006
Location: central Va
Posts: 7,820
Quote:
Originally Posted by QS23 View Post
I've pulled up the EPC... there are two gaskets listed for my 83...

A0010945280
A0010947180

But it's NLA for anything before '82.

Also, does anybody know what

"TOP TO 011 094 29 02, 011 094 75 02"

means?

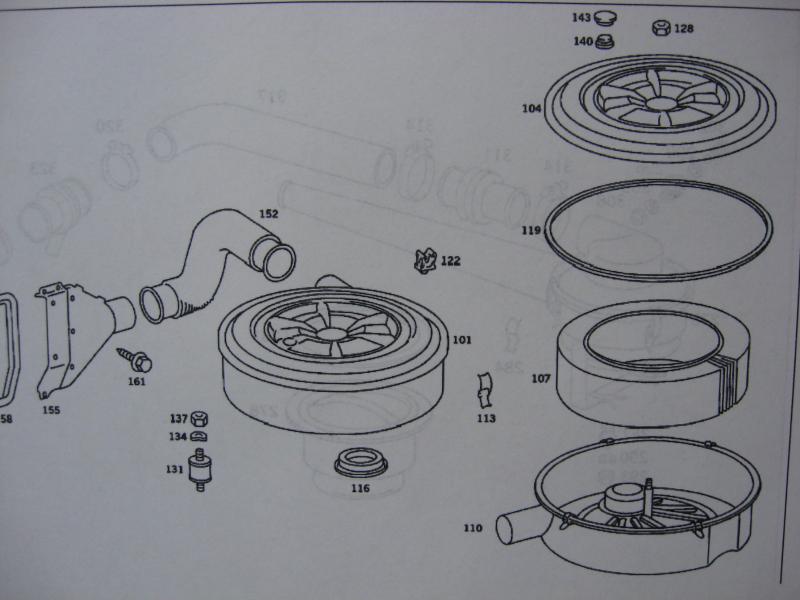

You'll need the proper gasket for which ever housing you have, go by the part numbers. Item #101 is part #012 094 26 02, for model year 1981 only.
Attached Thumbnails
Will I have a Problem, 240D air filter cover gasket-air-filter-items.jpg   Will I have a Problem, 240D air filter cover gasket-air-filter-items-numbers.jpg
