85 300SD Front wheel bearings. Washer/ shim under spindle nut ?
I was stopped in the middle of replacing front wheel bearings and rotor. Now getting back to it I happened to notice some some sites mention a shim/ washer between the outer bearing and the spindle nut. I do not currently have access to my parts breakdown diagram. If anyone has quick access and can tell me yeh or neh it would be a great help.
Thanks ( loosing daylight and wifes patience ) Alan
__________________
92 500E Silver 66k 82 Porsche 911SC 84K 68 Cadillac ( Gone Now ) 03 Suburban Z71 200K 85 300SD 217k From Original Owner ( Dad )
|
|
#2
08-11-2013, 07:11 PM
|
||||
|
||||
|
Hmm. I'm not sure. EVERY wheel bearing I've ever seen has the washer, but I've done dozens of MB's and I simply do not remember if there is a keyed washer or not.
surely there are pictures in the wikki DIY area...
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread "as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do! My drivers: 1987 190D 2.5Turbo 1987 560SL convertible 1987 190D 2.5-5SPEED!!!  1987 300TD 2005 Dodge Sprinter 2500 158"WB 1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
|
|
#3
08-12-2013, 09:43 AM
|
||||
|
||||
|
Me too. always a washer. So now I need to get one if it is not there. Going to confirm and make sure I did not just drop it.
Thanks
__________________
92 500E Silver 66k 82 Porsche 911SC 84K 68 Cadillac ( Gone Now ) 03 Suburban Z71 200K 85 300SD 217k From Original Owner ( Dad )
|
|
#4
08-12-2013, 11:37 AM
|
||||
|
||||
|

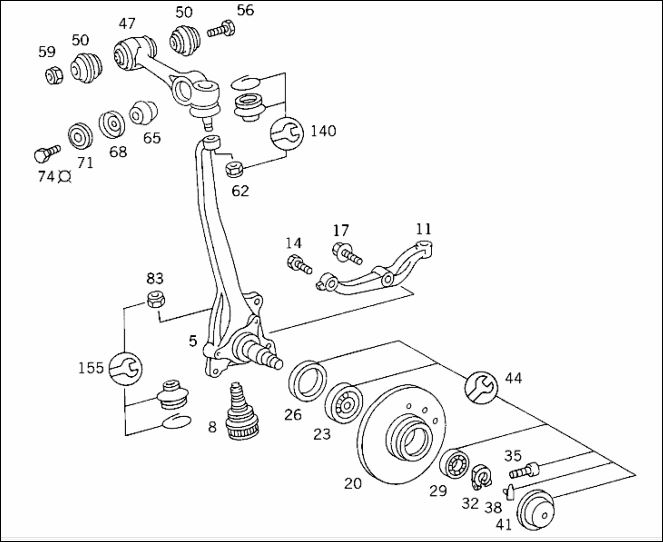

The EPC does not show one for the 126.120:
The design seems to work pretty well; my 01' W210 does not have one either. Good luck.
|
|
#6
08-12-2013, 01:54 PM
|
||||
|
||||
|
I have never seen a washer under the spindle nut on any W126. I have done bearings a few times on different W126s and pulled parts from the junk yards.
__________________
1991 F250 super-cab 7.3 IDI. (rebuilt by me) Banks Sidewinder turbo, hydroboost brakes, new IP and injectors. 2003 S430 - 107K 1983 300SD - Tanoshii - mostly restored ~400K+. 1983 300SD - Good interior. Engine finally tamed ~250K. Monark Nozzle Install Video - http://tinyurl.com/ptd2tge
|
|
#7
08-13-2013, 09:57 AM
|
||||
|
||||
|
I don't recall a washer on either of my cars, did both a couple of years ago.
__________________
83 SD 84 CD
|
|
#8
08-13-2013, 03:49 PM
|
||||
|
||||
|
Quote:
