Hi folks,

Tis that time of year again and Im planning on R&Ring the last 4 of my GPs did the other two last winter. Anyone have a reamer for a 603 engine I can rent or borrow. Checked the rental list and the fellow who is listed has not been around since 2006.

TIA

__________________
Treetops
06 E320 CDI 127K Miles
87 300TD 231K Miles

99 E300 269K Miles-Sold

I have one for OM606

__________________
1995 E300 diesel

I need that one
Does it actually work as described?
I changed the glow plugs last year and only have 3-4k on them and one (maybe even 2) already failed. I think there is too much carbon build-up and that's why they failed.
I'm planning to change those 1 or 2 GPs this weekend. How does this work with borrowing/renting?

__________________
*******************
http://i41.tinypic.com/5zek4g.jpg

I've got the 61x/603 reamer... works on all iron heads, and the straight injector 603 heads

__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!

In the Picture or 2 Factory Made Glow Plug Reamers.

You would need the Short one on the Top and that is the same as is used on the 617.952 Turbo Diesels or the older models that use the Bosch Pencile type Blow Plugs.

The Bit/Reamer End is 7mm
For a while People were saying to use a 7mm Drill Bit turned by hand. But, that is your Choice.

There is also another Design of Glow PLug Reamers that is made all in one piece and the Reamer Bit has only 2 U shaped grooves in it.

Not using Bosch or Beru Glow Plugs can cause early Glow Plug Failure. If the Fuel is not burning when it is supposed to or effeciently in the Pre-combustion Chamber that can shorten the life of the Glow Plugs.

Fuel Injection Pump Timing, Valve Timing, Compression and the Condition of the Injectors have an effect on the Glow Plugs.
Only City Driving tends to build up more Carbon; that is My Car and I always get some Carbon when I ream the Glow Plugs which I pulled out about 2 Weeks ago.

When the Glow Plug is gets Voltage the it pulls high amps for a second or 2 and as it gets hot it settles down to arouns 16 amps. I bleieve that means if the Glow Plug does not get hot as fast it pulls the higher amps longer.
Carbon surrounding the Glow Plug Tip allows heat from the Glow Plug to be conducted into the Cylinder Head keeping the Plug cooler and causing it to pull higher amps for a longer than normal amount of time. That also means the Air in the Pre-chamber is not getting heated as much as it is supposed to per amount of Preglow time.

Attached Thumbnails



__________________
84 300D, 82 Volvo 244Gl Diesel

Thanks for the replies. Vstech yes that would be great, I'll pm you. Im planning on doing this next week so no rush rush.

Yes the 87 is pretty much a city driver, low annual miles type of use and I have no idea when they were last replaced except the two I did last winter. I'm planning on taking off the crossover pipe and IM and sending them out to be cleaned as well. If I do it right and my kids dont complain too much, Ill be sending the injectors to greezer for a rebuild too.

__________________
Treetops
06 E320 CDI 127K Miles
87 300TD 231K Miles

99 E300 269K Miles-Sold

There are also threads on making them.

__________________
85SD 240K & stopped counting painted, putting bac together. 84SD 180,000. sold to a neighbor and member here but I forget his handle. The 84 is much improved from when I had it. 85TD beginning to repair to DD status. Lots of stuff to do.

They can be made if you can drill a hole down the Center of a old Glow Plug or something else.

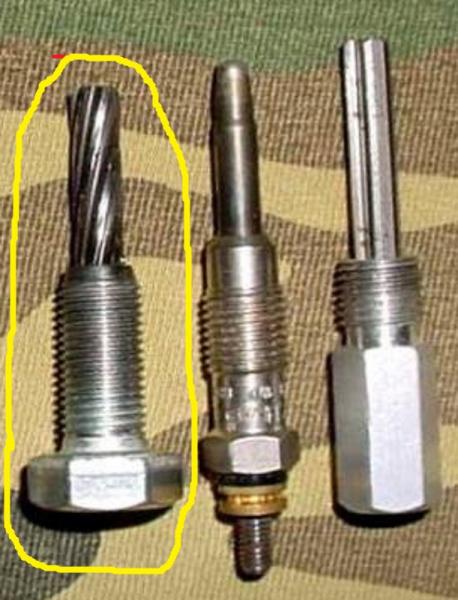

I used to make the ones surrounded by the Yellow Lines but stopped over 3 Years ago.

Attached Thumbnails



__________________
84 300D, 82 Volvo 244Gl Diesel

Vstech, sent you a confirming pm.

I like the simplicity, but I dont have a welder or a bit like the one you used Diesel. I hope this helpful to more resourceful member than I.

__________________
Treetops
06 E320 CDI 127K Miles
87 300TD 231K Miles

99 E300 269K Miles-Sold

I did not weld them they are Epoxied in. Also People have been using a 7mm Drill Bit instead of a reamer.

Like I said the hard part is drilling the Hole down the Center. I have a Lathe so that was no issue for Me. I am not sure how the others managed to make theirs.

All this has been previously covered in other threads. Likely in the DIY Repair Links.

__________________
84 300D, 82 Volvo 244Gl Diesel

A reminder here.... for those new to this game....
you want to use HEAVY GREASE in the flutes of the reamer or drill...
and just to IN a little and BACK OUT...
repeating that process
gradually going all the way needed....

AND CLEANING THE FLUTES ..... AND ....... RE APPLYING the GREASE each time...
this is to trap the CRUD and or carbon... instead of it being left in the precombustion chamber to mess up the dispersion of the fuel as it is trying to get to the radially drilled holes leading to the combustion chamber...

__________________
1980 240d ,

chain elongation, cam marks reference:
http://www.peachparts.com/shopforum/showthread.php?threadid=10414

http://www.peachparts.com/shopforum/diesel-discussion/305365-9-degrees-chain-stretch.html

evap fin cleaning:

http://www.peachparts.com/shopforum/showthread.php?t=156207&highlight=evaporator

A/C thread

http://www.peachparts.com/shopforum/diesel-discussion/297462-c-recommendations-mb-vehicles.html

Thank you!! Its tips like this I would not necessarily think of. Im planning on bearing grease, which should work, yes?

__________________
Treetops
06 E320 CDI 127K Miles
87 300TD 231K Miles

99 E300 269K Miles-Sold

As long as the Grease is thick enough to stay in the Flutes/Grooves of the Reamer it does not matter what you use.

I tried Vasoline once but it get too runny fast.

__________________
84 300D, 82 Volvo 244Gl Diesel

I just used a tap of the correct thread, one time. It didn't seem to do much, other than clean slight carbon from the threads in the head. When I have had the injectors out, I always look down into the pre-chambers with the glow plugs on. I don't see any carbon, so not sure what the factory reamer is intended to do.

I am trying post a pic. In the Pic the area inside of the Red Rectangle is the area where Carbon builds up.

There should have been no Carbon in the threaded area of the Cylinder Head as the Glow Plug seals on the tapered shoulder (like a Spark Plug) on the Glow Plug Body right before the Tip/Heater Element sticks out from the Body.

Attached Thumbnails
