So i have a "Lamp Out" on the 1999 E300D. It is the smaller right headlight. It works on bright but it doesn't on dim. The bulb in it was an H7 so i tried replacing it with another one and it is still the same problem. It only works on bright.

Is there a fuse specific for the low beam for that smaller head light? I couldn't find one. Or maybe the H7 bulb is not the right one?

Any advise?

Thanks

__________________
What Would Rudolph Do?
1975 300D, 1975 240D, 1985 300SD, 1997 300D, 2005 E320 , 2006 Toyota Prius

I thought the parking light was a totally separate bulb... (?)

__________________
-Evan


Benz Fleet:
1968 UNIMOG 404.114
1998 E300
2008 E63


Non-Benz Fleet:
1992 Aerostar
1993 MR2
2000 F250

This is. it's called a parking light? The left side is on with hi and low beam. I didn't realize all 4 headlight bulbs do hi and low beam. It looks like they do. Is that correct?

__________________
What Would Rudolph Do?
1975 300D, 1975 240D, 1985 300SD, 1997 300D, 2005 E320 , 2006 Toyota Prius

OK, now that I think of it, I believe it's a proprietary lamp that goes in there. The H7 is for the fog lights (maybe).

I think I replaced mine years ago and had to get it from the dealer. I have a spare at home and I can check it later this evening.

__________________
-Evan


Benz Fleet:
1968 UNIMOG 404.114
1998 E300
2008 E63


Non-Benz Fleet:
1992 Aerostar
1993 MR2
2000 F250

From what I can tell, only the center two are high beams. No direct knowledge, just my experience.

__________________
-Evan


Benz Fleet:
1968 UNIMOG 404.114
1998 E300
2008 E63


Non-Benz Fleet:
1992 Aerostar
1993 MR2
2000 F250

The Sylvania web site has the bulb schedule.

__________________
14 E250 Bluetec 4Matic "Sinclair", Palladium Silver on Black, 160k miles
06 E320 CDI "Rutherford", Black on Tan, 180k mi, Stage 1 tune, tuned TCU
91 300D "Otis", Smoke Silver on Tan, 145k mi, wastegate conversion, ALDA delete

19 Honda CR-V EX 79k mi
Fourteen other MB's owned and sold
1961 Very Tolerant Wife

OK, my memory was partially correct - a dangerous thing...

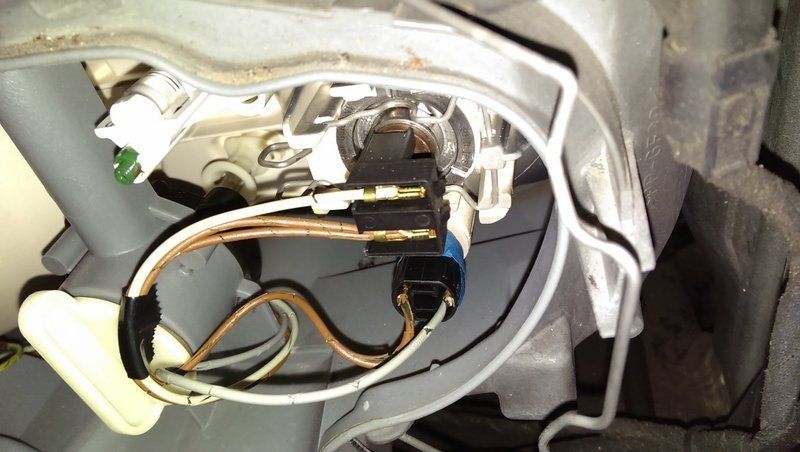

This is the lamp housing. The little connector on the bottom with the awesome back woods blue tape repair, is the parking light.

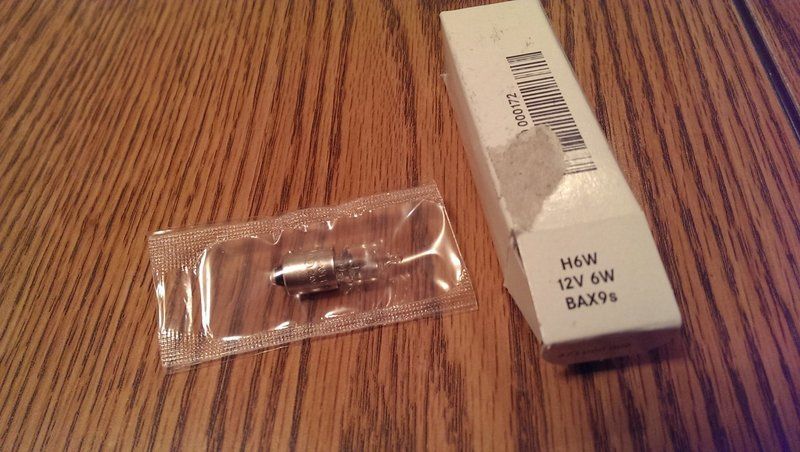

This is the impressively expensive replacement bulb:

__________________
-Evan


Benz Fleet:
1968 UNIMOG 404.114
1998 E300
2008 E63


Non-Benz Fleet:
1992 Aerostar
1993 MR2
2000 F250

Yep the two small inner headlights take an H6 which are rare as hens teeth and expensive. I had to go to the dealer for mine.

Note these are known as "city lights" if you are searching...

__________________
The OM 642/722.9 powered family
Still going strong
2014 ML350 Bluetec (wife's DD)
2013 E350 Bluetec (my DD)

both my kids cars went to junkyard in 2023
2008 ML320 CDI (Older son’s DD) fatal transmission failure, water soaked/fried rear SAM, numerous other issues, just too far gone to save (165k miles)
2008 E320 Bluetec (Younger son's DD) injector failed open and diluted oil with diesel, spun main bearings (240k miles)

1998 E300DT sold to TimFreeh
1987 300TD sold to vstech

Thanks Kartek, Jay bob. That was it. The little h6 one. Yesterday i went to oreilly and they had one but the nipples are in the wrong place to fit in socket. However one of my sockets was busted -- brittle plastic on both so i was able to put their bulb in the broken socket and my one good bulb in the other good socket. I'll have to check my 1996 parts car for sockets and bulbs.
