#1
10-22-2004, 01:18 PM
|
|||
|
|||
|
Help navigating the 190E WS CD
I just got the WS CD #W201 on my 1992 190E/2.3L

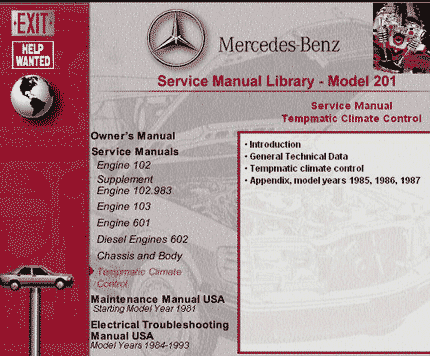

I am trying to locate the section related to replacing the heater core, dash removal. Under which subsection is this? Can't seem to find it under climate control. Most other sections that I browsed seems irrelevant. I included a gif image of the available sections, if there are more than one version of the WS CD Thanks, EM Last edited by Elecmech; 10-22-2004 at 01:26 PM.
|
|
#3
10-22-2004, 02:27 PM
|
|||
|
|||
|
Only talks about removing the instrument panel but nowhere about replacing the heater core in this section. Maybe removing the dash is called something else?
A search for "heater core" in the complete PDF document only brings up the connections of the pipes from the heater core connecting to the engine block
Last edited by Elecmech; 10-22-2004 at 02:49 PM.
|
|
#4
10-22-2004, 02:51 PM
|
|||
|
|||
|
removal of instrument panel is the 4th step in "Removal and Installation of Heat Exchanger" -found under -Climate Control Manual -Section 1 Heating/ ventilation and air conditioning I
(in my W124 CD)
__________________
-Marty 1986 300E 220,000 miles+ transmission impossible (Now waiting under a bridge in order to become one) Reading your M103 duty cycle: http://www.peachparts.com/shopforum/showpost.php?p=831799&postcount=13 http://www.peachparts.com/shopforum/showpost.php?p=831807&postcount=14
|
|
#6
10-22-2004, 07:28 PM
|
||||
|
||||
|
SURE it's the heat exchanger! What ELSE would you cal the heater core? Oh wait.......
Gilly
