I like to change the dust filter, but I don't get out the glove box. I have read some post old post regarding this,but i need more help

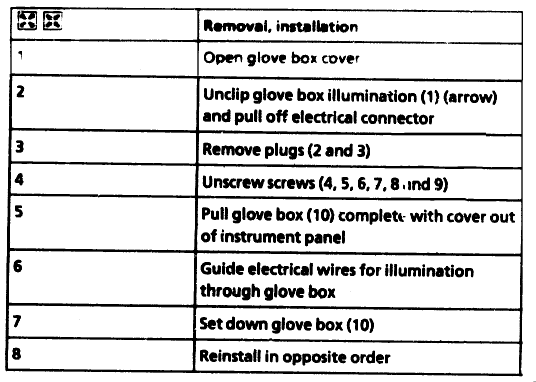

I have find 8 screws,and get out 6 of them. The 2 upper ones are screwed los, but they will not drop out. Most they be completly removed? If yes,How do I remove them?
I have pull/jerk much harder than I'd have thought was reasonable.
The next one are dynamite
Thanks
From Norway
Arvid

Attached Images

Hanskerum 003.psd (62.3 KB, 183 views)

I will try to post a new pictures

Attached Thumbnails



The screws all drop out on mine. The first time I had to remove the glove box, I really had to give it a really good yank. It was tight.

Len
'99 E300TD 73,000 miles

Try here: http://www.edsoto.com/w210/default.htm

Here is the pic. [IMG]

Attached Thumbnails



Thank you all. I have done it. See picture here
http://forums.mbworld.org/forums/showthread.php?p=1018470#post1018470
Arvid

The filter under the dash is not the dust (pollen) filter. It is the charcoal filter. The dust filter(s) - there are two - ARE behind the glove box. Look carefully and you will see to white plastic locks to access the filters.

Hi Vince
I can not see any white plastic locks !!! The are only metalclips and screws. To
dismount this i think I most dismount the hole dasj.
I buy one filter and it fits
perfekt under dasj with the passenger left leg.

Attached Thumbnails



Dust Filter and charcoat filter PIC.

Attached Thumbnails



Charcoat Filter PIC

Attached Thumbnails

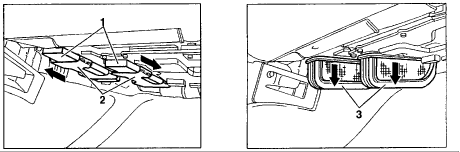

Hi Sound. Thank you for drawing. But I cant see any opening in the area the drawings indicat. Can you see where the opening are in the pictures? The upper lid are quit big,securit with clips an crews and can not be open without disassemble the car. I have change the Charcoat Filter.
No problem

Attached Thumbnails



WOW! Your car evidently has no dust filters. If that is a picture of the area behind the glovebox (unless you have a right hand drive car??) then I don't see the small door to access the dust filters, should be right there very plainly.
Gilly

__________________
Click here to see the items I have up for auction at EBay

Click here to see a photo album of my '62 Sprite Project Moneypit (Now Sold)

Gilly, you have hit it on the head, but the weird part is that I can't find where M-B offered the W210 without the dust filter/charcoal filter anywhere in the world. I learn something every day.

Maybe if it isn't automatic climate control? Can we see a picture of the climate controller panel?
Gilly

__________________
Click here to see the items I have up for auction at EBay

Click here to see a photo album of my '62 Sprite Project Moneypit (Now Sold)

Hi Gilly and vince.

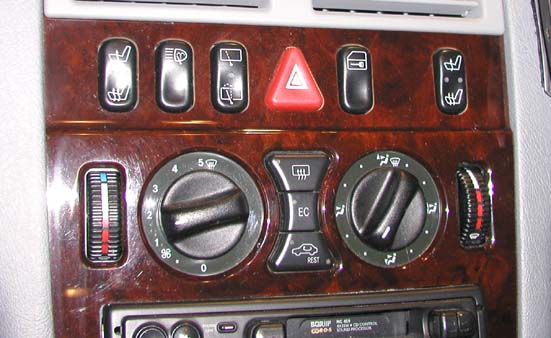

The pictures are of the area behind the glovebox. And I have a lefthand drive car. Like the american cars. I get one fillter from my part dealer, and it fit perfektly under the dasjboard. Leftside /passenger leg. Here are a picture of the A/C panel

Regards
Arvid
W 210 1999 E 240
W 107 1971 350 SL
and more old cars on my homepage
http://www.chevroletnorge.com

Attached Thumbnails
