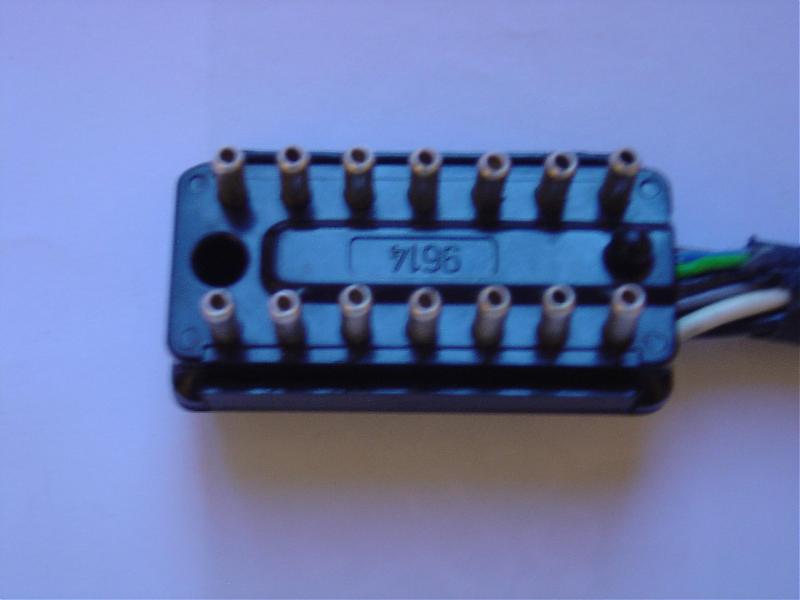

can some one help to identify the connections of the combination switch connector on a W124 260E 1988?

thanks in advance for the help.
