#1
|
|||
|
|||
E420 Flex Discs
Anyone know if these are replaceable (front and rear) without having to take the drive shaft out? The shop manual does not show this as a separate job--only as a part of removing the entire drive shaft.
I suspect the transmission would have to be supported by a jack and the mount removed to get to the front disc. I just don't want to get into removing the entire exhaust and drive shaft to change the discs. Any input?
__________________
1993 400E, 256,000 miles (totaled) 1994 E420, 200,000+ miles 1995 E420, 201,000 miles |
#2
|
|||
|
|||
The front one is an easy replacement w/o removing the d/shaft.
The rear one requires un-bolting the center support & that can be a pain on some cars.
__________________
MERCEDES Benz Master Guild Technician (6 TIMES) ASE Master Technician Mercedes Benz Star Technician (2 times) 44 years foreign automotive repair 27 Years M.B. Shop foreman (dealer) MB technical information Specialist (15 years) 190E 2.3 16V ITS SCCA race car (sold) 1986 190E 2.3 16V 2.5 (sold) Retired Moderator |
#3
|
|||
|
|||
Thanks, MB Doc. I guess that's good news. I've read that the front disc usually goes bad before the rear. I'm getting a clunk when I put it in gear so maybe I'll try the front to see whether it softens it up. After doing the transmission and motor mounts, for some reason the clunk seems more noticeable now.
__________________
1993 400E, 256,000 miles (totaled) 1994 E420, 200,000+ miles 1995 E420, 201,000 miles |
#4
|
|||
|
|||
What are the symptoms of these going bad??
__________________
Smoke Silver 1994 E220 Coupe Automatic 0 kilometers 6 September 1994 100,635 kilometers - 6 September 2010 |
#5
|
|||
|
|||
There are at least two ways I know they can go bad. The first is where the disc actually physically starts to come apart or unraveled. The other is where the rubber just hardens and makes the drivetrain less able to absorb the jolt of shifts and putting it into gear. Mine are not coming apart, they are just getting old and hard.
__________________
1993 400E, 256,000 miles (totaled) 1994 E420, 200,000+ miles 1995 E420, 201,000 miles |
#6
|
|||
|
|||
And where is the front and rear flex disk?
I only saw the one behind the transmission. Mine looked overall in one piece with no cracks etc however when I put my car into D there is a jolt. Going into R however doesn't make such a jolt
__________________
Smoke Silver 1994 E220 Coupe Automatic 0 kilometers 6 September 1994 100,635 kilometers - 6 September 2010 |
#7
|
|||
|
|||
The kit is depicted as #179 in this link (part number 129 410 0115). https://docs.google.com/fileview?id=0B-WRh0Hf7VdZZGIzZmYwYTQtMTQ3NS00ODExLWI4NzAtZmUyNGUyZTM3YTVk&hl=en
I plan to do just my front disc first, based on MB Doc's post above, but I'm not sure how the front centering bushing (depicted as #110) fits into the drive train or whether it will be in the way. Does the centering bushing fit into the torque converter? Anyone.
__________________
1993 400E, 256,000 miles (totaled) 1994 E420, 200,000+ miles 1995 E420, 201,000 miles |
#8
|
|||
|
|||
Spetz, the EPC for the 1994 E220 shows a "vibration absorber" (176) and a "flex joint disc" (179). I'm not sure what the difference is.
https://docs.google.com/fileview?id=0B-WRh0Hf7VdZZDA2YjdiZjMtZDI3NS00YmE3LTgzNTctNDAzOGRkY2MyNjMz&hl=en
__________________
1993 400E, 256,000 miles (totaled) 1994 E420, 200,000+ miles 1995 E420, 201,000 miles |
#9
|
|||
|
|||
I see, so basically one behind the transmission and one in front of the differential
__________________
Smoke Silver 1994 E220 Coupe Automatic 0 kilometers 6 September 1994 100,635 kilometers - 6 September 2010 |
#10
|
|||
|
|||
That's it. I'm thinking that if I can get to the front disc easily enough, maybe that will be enough to absorb the clunk when putting it in gear. Getting to the nuts and bolts might be difficult.
__________________
1993 400E, 256,000 miles (totaled) 1994 E420, 200,000+ miles 1995 E420, 201,000 miles |
#11
|
||||
|
||||
Flex Discs
Emery DC8,
The 'Centering Bushing" forward end fits into the Three Legged Flange that is bolted onto the end of the Tranny. If it's not "Distorted" just "Lube It". All the exacerbated R+R if it's "Boogered": http://www.ps2cho.net/downloads/MB%20CD/W124/w124CD2/Program/Chassis/41-200.pdf
__________________
'84 300SD sold 124.128 |
#12
|
|||
|
|||
Thanks. The tail housing makes more sense. I don't know what made be say torque converter. That made no sense at all.
Should I even knock the centering sleeve out of the propeller shaft or just grease the end I can get to? Also, looking at the diagram in the manual, the centering sleeve would appear to block the flex disc from slipping out unless the drive shaft is pushed back or removed. Is there enough play to move the drive shaft back to get the front flex disc out?
__________________
1993 400E, 256,000 miles (totaled) 1994 E420, 200,000+ miles 1995 E420, 201,000 miles Last edited by emerydc8; 06-25-2010 at 06:18 AM. |
#13
|
||||
|
||||
The Doctor Said:
"The front one is an easy replacement w/o removing the d/shaft."
Loosening the 42-46MM nut/coupler will give you enough BackSlide room to R+R the front disc. I'd visually inspect the "Centering bushing" and if there are no signs of distortion /wear, just re-lube it. R+R of the Bushing will require the removal of the Driveshaft,for sure.
__________________
'84 300SD sold 124.128 |
#14
|
|||
|
|||
Thanks, Compress Ignite. I have one more question. The shop manual at 41.1-050/2 says, with regard to the front drive shaft, "Loosen fitted sleeves with mandrel 10 mm dia." What fitted sleeves are they referring to? If I am not taking the drive shaft completely off, will I need this mandrel?
__________________
1993 400E, 256,000 miles (totaled) 1994 E420, 200,000+ miles 1995 E420, 201,000 miles |
#15
|
||||
|
||||
"Mandrel"

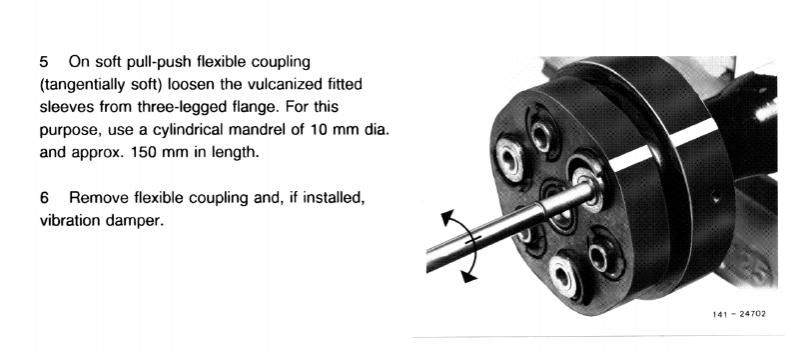

From the picture they want you to use a 10MM by 150MM rod to manipulate
the Metal fittings "Vulcanized" into the three legged fixture??? [Sometimes, it escapes me (like a Meteor) WTF they're talking about] If you'll look at each of the Six Metal fittings "Vulcanized" into the Flex Disc... every other one(Three in total)have a raised metal lip...the Raised metal lip fits into a recess in the Tripod Device.Mayhaps this has something to do with the "Mandrel" operation?
__________________
'84 300SD sold 124.128 |
