1994 e320-help with a temperature probe

05-03-2011, 09:02 AM

pfitz

Registered User

Join Date: Feb 2009

Posts: 9

1994 e320-help with a temperature probe

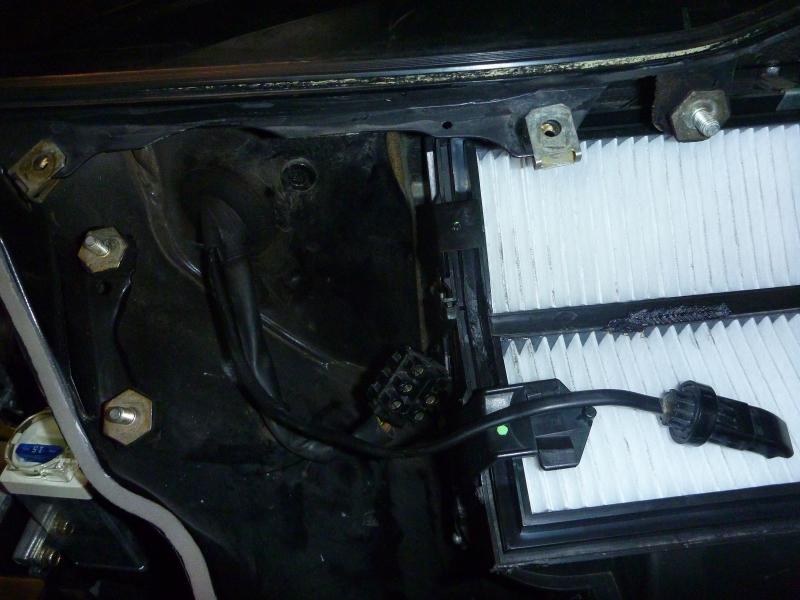

I've installed a new AC\heater fan motor assembly and found what looks like the climate control temperature probe lying down in the air box. It has tabs on it so it looks like it should snap into a rectangle slot. The probe comes through the harness grommet with the wiper motor connector which looks correct but i can't find a place to connect it.
Can anyone help with this?

Attached Thumbnails

Click image for larger version

Name: m benz 008.jpg
Views: 57
Size: 56.1 KB
ID: 91878

Click image for larger version

Name: m benz 001.jpg
Views: 59
Size: 54.9 KB
ID: 91879
