  #1
Old 01-05-2012, 09:55 PM
ps2cho's Avatar
Registered User

Join Date: Jun 2006
Location: Chandler, Arizona
Posts: 3,525
Exploding mounted jack point!!

Never buying them again. Absolute garbage. It literally exploded on my jack sending plastic across my garage and collapsed into itself.

Older style rubber ones going forward.

BE AWARE!!!



It was a Meyle one, but are the OEM W124 "updated" ones plastic as well?

__________________
2016 Monsoon Gray Audi Allroad - 21k
2008 Black Mercedes E350 4Matic Sport - 131k
2014 Jeep Wranger Unlimited Sahara - 62k
2003 Gray Mercedes ML350 - 122k
Reply With Quote
  #2
Old 01-06-2012, 09:49 AM
pawoSD's Avatar
Dieselsüchtiger

Join Date: Oct 2004
Location: Grand Rapids, MI
Posts: 15,438
No they are the hybrid hard rubber/plastic reinforced. A W124/201 one is like $7 a the dealer.....a W126 one is $9.50.....
__________________
-diesel is not just a fuel, its a way of life-
'15 GLK250 Bluetec 118k - mine - (OC-123,800)
'17 Metris(VITO!) - 37k - wifes (OC-41k)
'09 Sprinter 3500 Winnebago View - 62k (OC - 67k)
'13 ML350 Bluetec - 95k - dad's (OC-98k)
'01 SL500 - 103k(km) - dad's (OC-110,000km)
'16 E400 4matic Sedan - 148k - Brothers (OC-155k)
Reply With Quote
  #3
Old 01-06-2012, 10:33 AM
Registered User

Join Date: Jul 2001
Posts: 902
Hmmm. I have had 4 different 124's. I know where the jack points are. But I profess complete ignorance what/how/where that thing you have a picture of is and how it fits or mounts or whatever!

Can you shed some light on this for me?

Rgds,
Chris W.
'95 E300D, 357K
__________________
Objects in closer are mirror than they appear.
Reply With Quote
  #4
Old 01-06-2012, 02:20 PM
gerryvz's Avatar
"Unhinged Troll" - Jim B.

Join Date: Dec 2001
Location: The Woodlands, TX
Posts: 1,268
Meyle parts (not to mention other brands like Uro) have no business on an enthuisiast's Benz. If you are using Meyle, I would recommend stopping immediately and instead using genuine MB parts (or MB OEMs) from now on.

Cheap parts are just not worth the time and hassle to save a few bucks.

Cheers,
Gerry
Reply With Quote
  #5
Old 01-06-2012, 02:23 PM
gerryvz's Avatar
"Unhinged Troll" - Jim B.

Join Date: Dec 2001
Location: The Woodlands, TX
Posts: 1,268
Quote:
Originally Posted by Chris W. View Post
Hmmm. I have had 4 different 124's. I know where the jack points are. But I profess complete ignorance what/how/where that thing you have a picture of is and how it fits or mounts or whatever!

Can you shed some light on this for me?

Rgds,
Chris W.
'95 E300D, 357K
You find these circular black rubber hard points underneath the car (near the side jacking points with the little doors in the cladding) on 124 and 126 models. These are made of rubber and generally age as rubber does, and eventually split with use.

Easy replacement. Three of the four rubber discs were split on my C126 (1989 560SEC) and I replaced them last year. Indeed they are very inexpensive (so cheap that an aftermarket part should never even be considered).

Cheers,
Gerry
Reply With Quote
  #6
Old 01-06-2012, 10:35 PM
Registered User

Join Date: Jul 2001
Posts: 902
Aha. Thanks for that. These are the pads I place my floor jack on/under. I had no idea they were replaceable!

Rgds,
Chris W.
'95 E300D
__________________
Objects in closer are mirror than they appear.
Reply With Quote
  #7
Old 01-06-2012, 11:02 PM
gerryvz's Avatar
"Unhinged Troll" - Jim B.

Join Date: Dec 2001
Location: The Woodlands, TX
Posts: 1,268

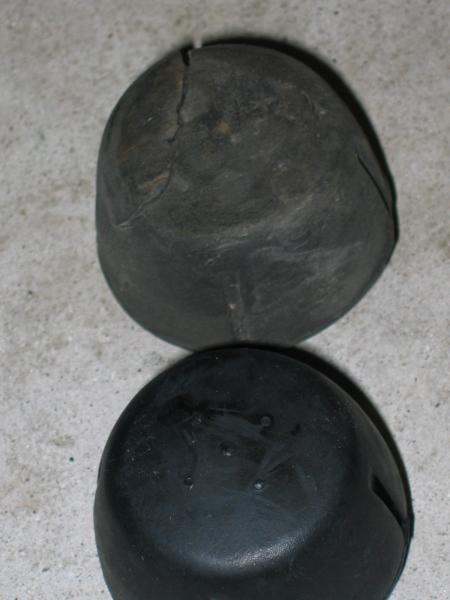

Comparison of old and new jack point rubber buffers for the V/C126 chassis cars.
Attached Thumbnails
Exploding mounted jack point!!-img_8463.jpg   Exploding mounted jack point!!-img_8464.jpg   Exploding mounted jack point!!-img_8465.jpg
Reply With Quote
  #8
Old 01-07-2012, 06:10 AM
Registered User

Join Date: Jul 2010
Location: Nottingham (nr Sherwood Forest..)
Posts: 95
Nasty...my '93 has those horrible plastic bungs, the '89 has proper 'rubber' ones...don't suppose you have a part number for the old ones?
Failing that I may need to try and find a breakers yard

cheers
__________________
cheers!!
Reply With Quote
  #9
Old 01-07-2012, 07:51 AM
Registered User

Join Date: Aug 2002
Location: Southeastern PA
Posts: 3,077
balge, buy them from your local MB dealer. As mentioned, they are inexpensive and the genuine MB part is a high quality that will last for years.
__________________
Fred Hoelzle
Reply With Quote
  #10
Old 01-07-2012, 09:56 AM
pawoSD's Avatar
Dieselsüchtiger

Join Date: Oct 2004
Location: Grand Rapids, MI
Posts: 15,438
Quote:
Originally Posted by balge View Post
Nasty...my '93 has those horrible plastic bungs, the '89 has proper 'rubber' ones...don't suppose you have a part number for the old ones?
Failing that I may need to try and find a breakers yard

cheers
At the dealer they are often known as the "lift shoe", they will know what it is if you just ask/describe it.
__________________
-diesel is not just a fuel, its a way of life-
'15 GLK250 Bluetec 118k - mine - (OC-123,800)
'17 Metris(VITO!) - 37k - wifes (OC-41k)
'09 Sprinter 3500 Winnebago View - 62k (OC - 67k)
'13 ML350 Bluetec - 95k - dad's (OC-98k)
'01 SL500 - 103k(km) - dad's (OC-110,000km)
'16 E400 4matic Sedan - 148k - Brothers (OC-155k)
Reply With Quote
  #11
Old 01-07-2012, 10:12 AM
gsxr's Avatar
Unbanned...?

Join Date: Aug 2001
Location: USA
Posts: 8,104
FYI. The early 124's (through 1989) have rubber pads which are larger and more rectangular. 90-95 W124's have rubber pads which are smaller and round, similar to what Gerry showed for the W126. They may be a hybrid that is partly plastic as pawoSD said. While a few Meyle parts may be ok, this obviously isn't one of them. Buy the OE/OEM pads only, please!


Last edited by gsxr; 01-08-2012 at 10:25 PM.
Reply With Quote
  #12
Old 01-07-2012, 01:31 PM
Registered User

Join Date: Jul 2010
Location: Nottingham (nr Sherwood Forest..)
Posts: 95
@ PawoSD - OK, 'lift shoe', now we're cooking!

@ gsxr Hm, pretty certain my '93 TD plastic ones are original...and they are the same carp as ps2cho described...I doubt the 'rubber' ones on my '89 are actually 'rubber' (a lot bigger and rectanangular), but the plastic ones on the '93 are definitely carp....

cheers!
__________________
cheers!!
Reply With Quote
  #13
Old 01-07-2012, 03:38 PM
d.delano's Avatar
Dönerkebap

Join Date: May 2004
Location: DC
Posts: 1,466
Agreed about the Meyle products; crap.

My experience with misc rubber doo-dads is that if you don't get a dealer part you will be sorry. I used to think Meyle was OK. The parts seem to fit, but they don't last very long. They are a German company, but their stuff is all made in China at a very low cost. As gsxr pointed out, a few items they sell might be adequate for the job. It's difficult to be sure.

All it takes is one frustrating experience to make a person swear off everything Meyle.

What I can't seem to grasp is why it is so difficult for these aftermarket companies to make a piece of rubber properly. It's not a space shuttle, it's a piece of rubber.

Dealer parts FTW.
__________________
'02 BMW 325i
'85 300D 450k
'93 190E 2.6 170k(killed by tree)
'08 Ducati Hypermotard 1100S 6k
'06 Ducati S2R800 14k(sold)
Reply With Quote
  #14
Old 01-07-2012, 08:33 PM
gerryvz's Avatar
"Unhinged Troll" - Jim B.

Join Date: Dec 2001
Location: The Woodlands, TX
Posts: 1,268
I continue to shake my head at how these companies like Uroparts and Meyle stay in business, with the crap they sell.
Reply With Quote
  #15
Old 01-08-2012, 06:15 AM
Registered User

Join Date: Jul 2010
Location: Nottingham (nr Sherwood Forest..)
Posts: 95
I think Mercedes has to take the blame here? The pre '89 bungs were good, the post '89 ones are garbage no matter who made them.....
cheers

__________________
cheers!!
Reply With Quote
