#1
|
|||
|
|||

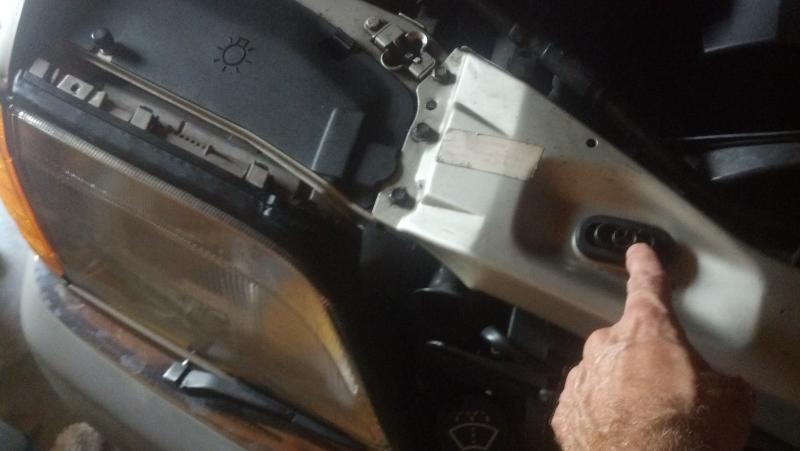

I am not sure what this is
I have checked on Alldata etc and cannot seem to find what this is and how to remove it?
Thank you for your assistance!
__________________
Brian 82 300d turbo 164k - passed on 83 sd - passed on 04 civic hybrid - DD 06 GTO for sale - passed on 84 VW Rabbit Diesel 4dr.- passed on 94 S350D - DD 94 S320 - soon to be DD Last edited by bellyboy; 10-21-2013 at 12:49 PM. |
#2
|
||||
|
||||
That looks like the top of the radiator. I dont think you do remove it. It looks like you remove that core support cross piece. (three hex bolts to the left)
__________________
Cruise Control not working? Send me PM or email (jamesdean59@gmail.com). I might be able to help out. Check here for compatibility, diagnostics, and availability! (4/11/2020: Hi Everyone! I am still taking orders and replying to emails/PMs/etc, I appreciate your patience in these crazy times. Stay safe and healthy!) 82 300SD 145k 89 420SEL 210k 89 560SEL 118k 90 300SE 262k RIP 5/25/2010 90 560SEL 154k 91 300D 2.5 Turbo. 241k 93 190E 3.0 235k 93 300E 195k |
#3
|
|||
|
|||
I removed bolts and these pieces seem to be holding the cross piece on
__________________
Brian 82 300d turbo 164k - passed on 83 sd - passed on 04 civic hybrid - DD 06 GTO for sale - passed on 84 VW Rabbit Diesel 4dr.- passed on 94 S350D - DD 94 S320 - soon to be DD |
#4
|
||||
|
||||
They might just be snug in place with the radiator, might need a firm tug.
__________________
-diesel is not just a fuel, its a way of life- '15 GLK250 Bluetec 118k - mine - (OC-123,800) '17 Metris(VITO!) - 37k - wifes (OC-41k) '09 Sprinter 3500 Winnebago View - 62k (OC - 67k) '13 ML350 Bluetec - 95k - dad's (OC-98k) '01 SL500 - 103k(km) - dad's (OC-110,000km) '16 E400 4matic Sedan - 148k - Brothers (OC-155k) |
#5
|
|||
|
|||
oh I hate doing the firm tug with these cars lol
__________________
Brian 82 300d turbo 164k - passed on 83 sd - passed on 04 civic hybrid - DD 06 GTO for sale - passed on 84 VW Rabbit Diesel 4dr.- passed on 94 S350D - DD 94 S320 - soon to be DD |
#6
|
||||
|
||||
That is just a rubber bushing to keep the radiator from rattling. My 190 has them too. The oval rings are the bushing, the center black plastic knob is just a tab sat on top of the radiator and then pinched in on the sides.
__________________
1990 190E 3.0L |
#7
|
|||
|
|||
I pried up gently and broke a piece. The Mb round piece seems to rotate...not sure
__________________
Brian 82 300d turbo 164k - passed on 83 sd - passed on 04 civic hybrid - DD 06 GTO for sale - passed on 84 VW Rabbit Diesel 4dr.- passed on 94 S350D - DD 94 S320 - soon to be DD |
