Trying to Build Blink code Reader??

Hello Forum;
I am attempting to build the blink code reader according to the 'Arthur Dalton' ( THANK YOU!! ) post to read my w124 94 e320 w/ASR faults.

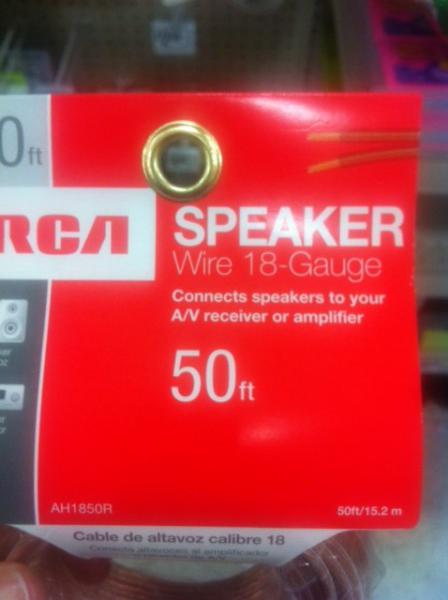

Will this 'pictured' wire work properly? OR does some one have experience with something else/better. I already have All the other 'Radio Shack" parts called for. Please Help/Advise....THANKS Glenn
Attached Thumbnails
Trying to Build Blink code Reader??-wwire.jpg
Reply With Quote
  #2
Old 10-24-2014, 12:40 PM
oldtrucker's Avatar
BMW Mech (70's) Germany

Join Date: Jan 2014
Location: San Diego County
Posts: 131
Hi Glenn,
there is always something better and more costly..
The simple code reader is based on blinks (counts returned from the Control unit).
In my opinion, this is the most cost effective reader for Models equipped with OBD (On Board Diagnostic) before 1996.
I didn't see anything that would hint on what model you want to use the reader with?
For vehicle equipped with OBD II e.g. 1996 and after, it would probably be more informative to purchase a device that was designed to work with OBD II equipped vehicle.

For OBD til 1995 (maybe even later), there is a system used by Mercedes Dealerships, I believe it is called "Star System" but the cost is far and beyond.

Also, there are some Software based diagnostic systems available. They, mostly involve a computer and some ISO interface (for example: Diagnostic Code Reader Tool Mercedes w 124 201 300E 320 190E E320 300TE OBD1 | eBay) that may or may not be easy to understand.

Bottom line, the count reader, is easy to built (so I say, ha) maybe a little more inconvenient to use and requires your attention, while pulling the code(s), but will give you in conjunction with the appropriate code table, just enough information to be dangerous, ha.
I wouldn't bother to look for something better, because better in this department means more money.
__________________
Mostly, I don't know notin, I just know where to look.
I am looking back, to over 30 years in Electronics Design.
Electrons don't care if they move in a car, computer or relay!

95 W124 E320 M104.992 - Because, I love to repair, naaaah!
Over 221,000 Miles
Cheers,
Norbert

Last edited by oldtrucker; 10-24-2014 at 12:52 PM.
Reply With Quote
  #3
Old 10-27-2014, 11:58 PM
Larry Delor's Avatar
What, Me Worry?

Join Date: Jun 1999
Location: Sarasota, Fl.
Posts: 3,112
I used whatever wire I had laying around.
__________________
It is a truism that almost any sect, cult, or religion will legislate its creed into law if it acquires the political power to do so. Robert A. Heinlein


09 Jetta TDI
Reply With Quote
  #4
Old 11-01-2014, 02:09 PM
Registered User

Join Date: Nov 2010
Location: Cosby, TN
Posts: 49
I did a picture DIY on building one. Did it a few years back and thought it was uploaded here. Works great under 10 bucks. It is too big to attach. let me know and I can email it to you.
__________________
Charlie

Current Family Stable

'87 260E -My former daily driver looking for a head
'92 500 SEL -Sundays and Holidays
'90 190E 2.6 -Current Daily
'84 VW Scirocco 38MPG!!! 225K Looking for an engine
'91 VW Rabbit Cabriolet
'91 VW Corrado G60
'82 VW Rabbit Pickup - Perfect Classic Truck
'95 S10 Long bed
'05 Jag X-Type
'16 BMW 425i convertible
'16 BMW 320i sedan

'93 VW Passat Wagon - RIP
'09 VW Passat Wagon - RIP
'95 VW Passat -RIP
Reply With Quote
  #5
Old 11-02-2014, 08:11 AM
Knappy Drag Racer

Join Date: Jun 2008
Posts: 1,725
Quote:
Originally Posted by gerryvz View Post
Do note that it will pull MOST but not all codes. This is all well-detailed over on the *********.

Wil this DIY code reader on M119..?

Blink code reader adaptation for M104?

HOW-TO: Checking DTC's (Diagnostic Trouble Codes) on the 500E/E500




Sent from my iPad using Tapatalk HD
It's well detailed here K6JRF Auto Page as well. Even better actually.
