#1
|
|||
|
|||
560SEL Dimension Diagram
Hi, I just purchased a 1991 560SEL and I need to trailer it from New Jersey to home in Canada. I need to make sure it will fit on my trailer and I'm looking for a Dimension Diagram. Can anybody help? Looked online, but didn't find anything. In particular I need the dimension from the front wheel centreline to the centre of the front bumper. In other words, the front overhang. Thanks.
__________________
1991 M-B 560SEL Arctic White/Grey 99,000 Miles 1987 M-B 300SDL Ivory/Palomino 229,000 Miles (sold but never forgotten) 2006 Volvo XC70 Blue/Beige 1999 Porsche Boxster Arena Red/Savanna Beige 1986 Porsche 928S Goldweiss/Brown |
#2
|
|||
|
|||
If you had a good side view pic, you could measure wheel diameter, tire diameter and wheel base then scale the distance from there.
Scaling all 3 measurements should minimize errors. |
#3
|
|||
|
|||

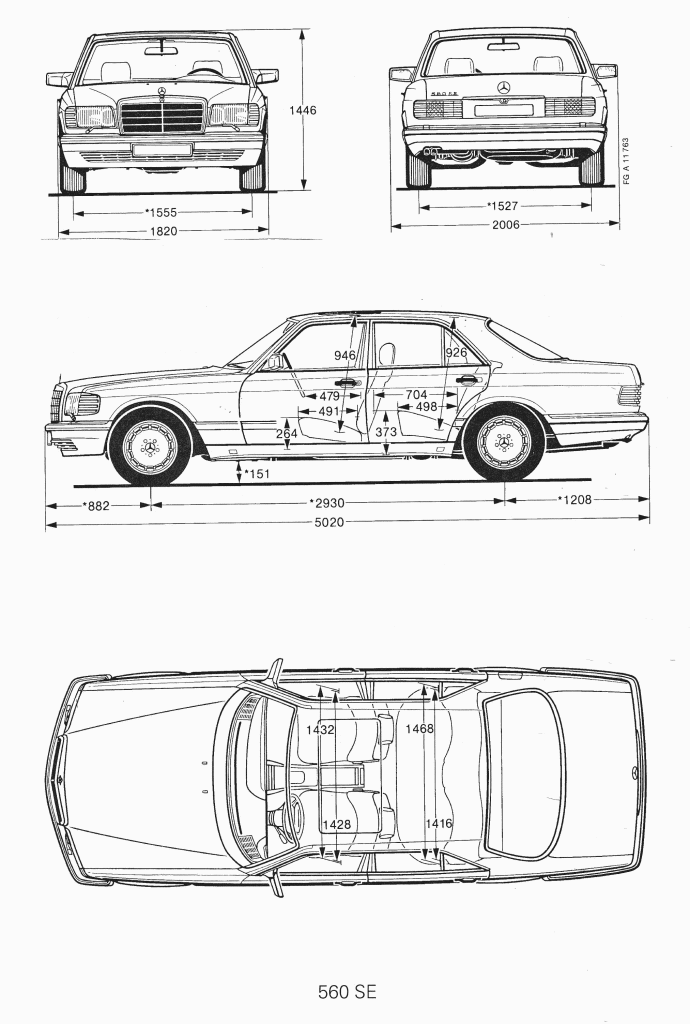

In mm - Divide by 25.4 to get to inches.
This is for a SE, the SEL wheelbase is 150mm longer.
__________________
2012 Mercedes E350 1988 Mercedes 300SEL 1996 Nissan Pickup 2003 BMW K1200GT |
#4
|
|||
|
|||
Perfect. Thanks so much.
__________________
1991 M-B 560SEL Arctic White/Grey 99,000 Miles 1987 M-B 300SDL Ivory/Palomino 229,000 Miles (sold but never forgotten) 2006 Volvo XC70 Blue/Beige 1999 Porsche Boxster Arena Red/Savanna Beige 1986 Porsche 928S Goldweiss/Brown |
