  #1
Old 12-03-2021, 12:34 AM
Registered User

Join Date: Sep 2001
Posts: 3,394
Any part numbers on it that could be put into a search?
__________________
"Rudeness is a weak man's imitation of strength" - Eric Hoffer
Reply With Quote
  #2
Old 12-03-2021, 09:25 AM
David Hendy's Avatar
Registered User

Join Date: Jun 1999
Location: New Milford, Ct
Posts: 1,101
Your car has ASR. The bracket holds the ASR pre-charge pump in place.

If memory serves me, the bracket is held on with 5mm hex bolts.
__________________
David Hendy
'97 Renntech E60RS
'97 GMC 2500 Sub' Diesel
'95 E300D
'88 300TE
'88 250TD
'84 L/Rover 109
Reply With Quote
  #3
Old 12-05-2021, 02:47 PM
newbie

Join Date: Apr 2012
Posts: 464
Update

Update:

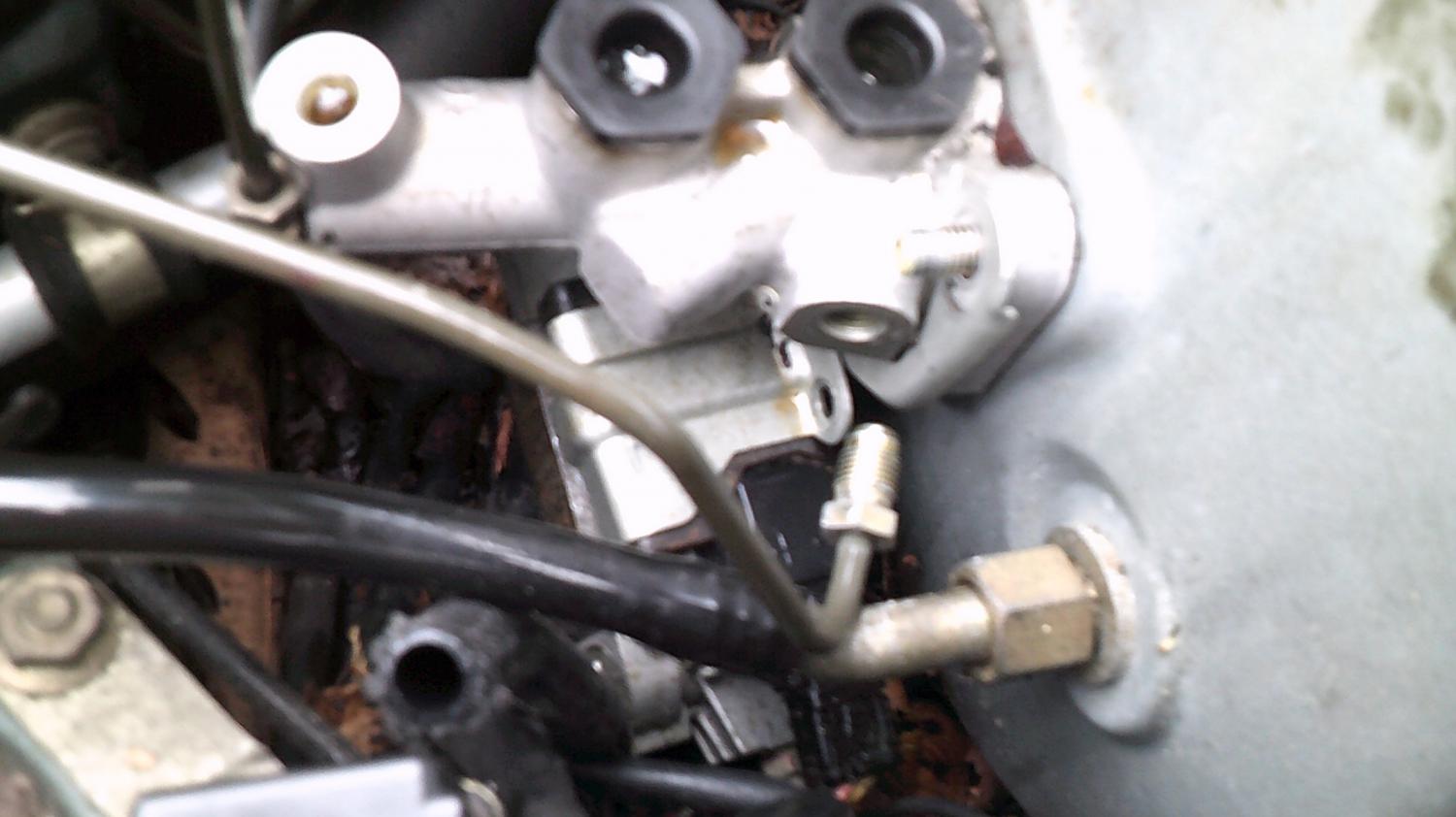

I finally got the brake master cylinder out. Like David Hendy mentioned earlier about this 5mm hex bolts and the ASR pre-charge bracket can be removed, actually there is only one 5mm hex bolt and the ASR precharged 2 brackets. I used 5mm hext socket and came out with ease. Then the bracket came out easily through that the nut on the lower left side of the brake master cyclinder. I was then abled to removed the 13mm nut with more depth than before. It was tough to remove that 13mm nut, but slowly and surely, the 13mm nut came out. Also, another bracket came out of the top right of the brake master cyclinder Thanks!!! See the pictures, sorry about quality of the pictures.

I did a push rod comparison on the both the old and the new brake master cyclinder replacement. I felt both had the same enough of force pushing the rods. I wonder if there is a way to determine whether the old master brake cyclinder is defective or not by testing? That is another story there. Anyway, thanks to all for reading and responding back.
Attached Thumbnails
1994 Mercedes E320 wagon brake master cylinder nut removal issues-dscf0046.jpg   1994 Mercedes E320 wagon brake master cylinder nut removal issues-dscf0051.jpg   1994 Mercedes E320 wagon brake master cylinder nut removal issues-dscf0053.jpg   1994 Mercedes E320 wagon brake master cylinder nut removal issues-dscf0056.jpg   1994 Mercedes E320 wagon brake master cylinder nut removal issues-dscf0060.jpg
