Instructions for installing sump guard?

Hi all,


I purchased what I believe to be the stock sump guard (Mercedes calls it something else, I forgot) for my 1985 300D. I also purchased from the dealership the complete set of all washers, bolts, and brackets needed to install this (at a cost of $100!) based on a parts list I found on the internet somewhere. So now I have a $200 sump guard, $100 worth of bolts and nuts and washers, and.... no idea how to install this blasted thing. I can make guesses of course, but why guess? I'd like to install this once correctly and for all.


Is there any documentation? I looked through what I believe to be the complete FSM for W123's and didn't see mention of it or pictures of it.



An exploded view would be good enough, or manual pages showing installation ideally.



Thanks!

Reply With Quote
  #2
Old 03-21-2022, 12:48 PM
HGV HGV is offline
Registered User

Join Date: Sep 2001
Location: San Francisco
Posts: 424
This should help

http://www.peachparts.com/shopforum/diesel-discussion/160706-w123-skid-plate-install-w-pix.html
__________________
63 190d (sold)
69 220D (sold)
69 280SL (sold)
76 BMW 2002 (sold)
86 190E-16v (Demised at Laguna Seca Turn 9)
87 300SDL (sold)
87 300SDL 135k
87 300TD 280k (sold)
95 E320W 211k
95 E320w 111k
05 C320 4matic
06 E320 CDI 90k (Totaled by a texting 19 year old girl in a nissan)
2013 GLK 250 Bluetek 4MATIC
Reply With Quote
  #3
Old 03-21-2022, 12:51 PM
HGV HGV is offline
Registered User

Join Date: Sep 2001
Location: San Francisco
Posts: 424

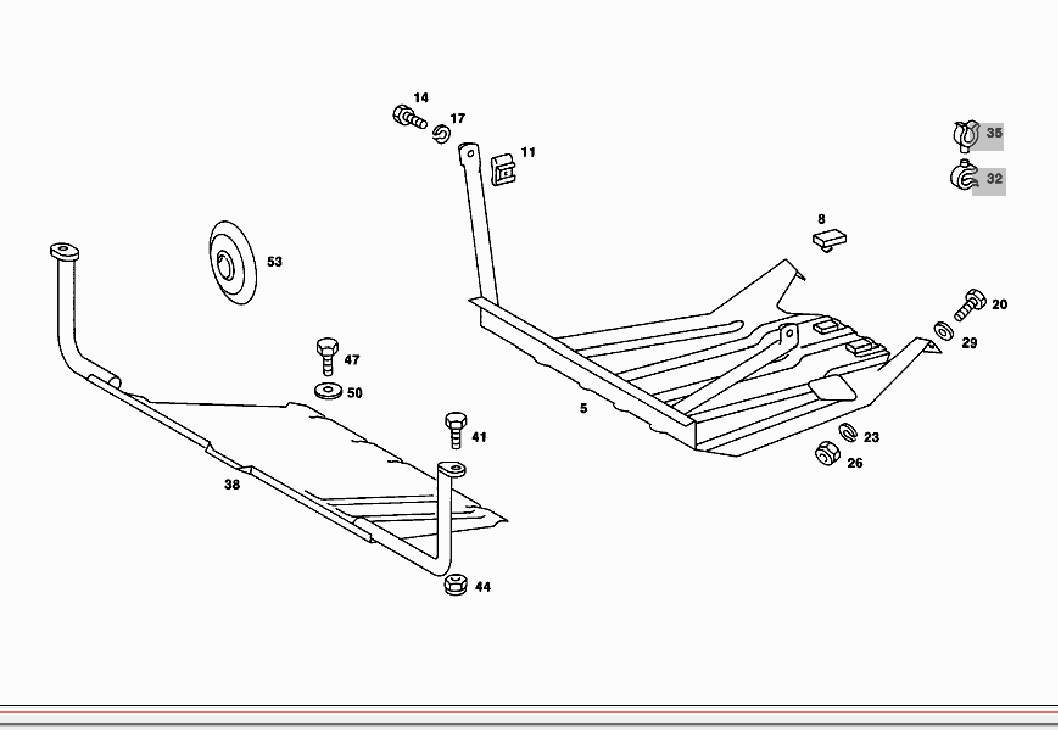

exploded view

Here is an exploded view
