Can anyone tell me why the 560 has a much bigger shifter area than that of a 420/300? I have infront of me 2 console pieces, one from a 1986-1991 560SE/L/C.... the other of a 420/300. The only differences is that one is burlwood, and other is zebrano. I thought that was all the difference, but now I see that the area where the shifter goes is about 3/4" bigger all around.

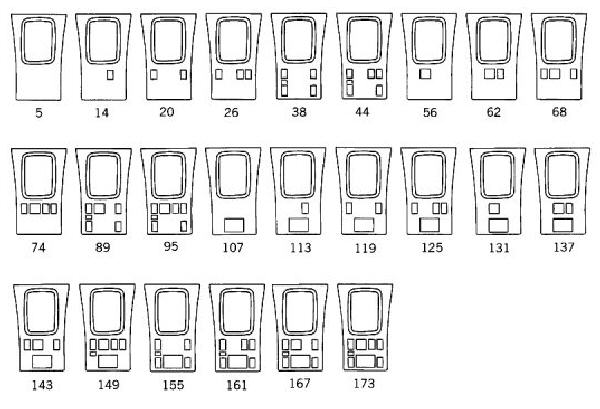

I just thought I would look and see whats available, too big a job. Turns out the same sheet of options appears on frames for both 420 and 560 it looks like this:

Attached Thumbnails



__________________
Steve Brotherton
Continental Imports
Gainesville FL
Bosch Master, ASE Master, L1
33 years MB technician

Snib,

I would have to guess that the panel with the larger opening is actually missing the rubber/plastic trim ring. The shift gate should be the same size for all 126's regardless of year, of course I state that without double checking my parts catelogue. Maybe I'll do that if I get bored enough tonight.

__________________
Mike Tangas
'73 280SEL 4.5 (9/72)- RIP
Only 8,173 units built from 5/71 thru 11/72

'02 CLK320 Cabriolet - wifey's mid-life crisis

2012 VW Jetta Sportwagon TDI...at least its a diesel

Non illegitemae carborundum.

Mike you are correct about the rubber being missing.. but even with it on, its still considerably larger.

Hello everyone, 1st post here.

My question is: can you get that rubber trim piece that goes around the inside of the shifter opening? I've been told that it is part of the wood console trim.

Thanks !
Jeff

don't know.. there is a part # for it though. 126 683 01 57

From the dealer-

"The part number isn't in the system. if this number is on a part, then it might just be a casting number and not the actual spare part number."

sorry then... but thats the part # stamped on the rubber.

Anyone know the answer to my question?

I believe it's a model year thing, not a model thing.

After 1987, there was a different shape (larger) to the shifter opening for the 126.

The rubber is not available separately, according to three different dealers' parts depts, when I checked ~3yrs. ago.

Try this? http://eris-car.de/cgi-bin/shop2/iboshop.cgi?show2400,2812806110

__________________
The Golden Rule

1984 300SD (bought new, sold it in 1988, bought it back 13 yrs. later)

I went threw this at the dealer last week, no you can't get the rubber trim piece it is part of the wood. Wood cost $287 for my car.
