  #1
Old 10-23-2017, 11:34 PM
Registered User

Join Date: Oct 2017
Posts: 2
Usage of a/c and heater buttons

I just purchased a Mercedes 1982 380 Sl and there was no manual. Can someone help me to identify what the bottons do. Thanks
Reply With Quote
  #2
Old 10-24-2017, 01:49 PM
moon161's Avatar
Formerly of Car Hell

Join Date: Mar 2008
Location: Buffalo NY
Posts: 1,897
Repost in diesel discussion instead of alternative fuels and more people will see it, it should be the same US climate control as the W123.
__________________
CC: NSA

All things are burning, know this and be released.

82 Benz 240 D, Kuan Yin
12 Ford Escape 4wd

You're four times
It's hard to
more likely to
concentrate on
have an accident
two things
when you're on
at the same time.
a cell phone.


www.kiva.org It's not like there's anything wrong with feeling good, is there?
Reply With Quote
  #3
Old 10-24-2017, 03:49 PM
Registered User

Join Date: Oct 2017
Posts: 50

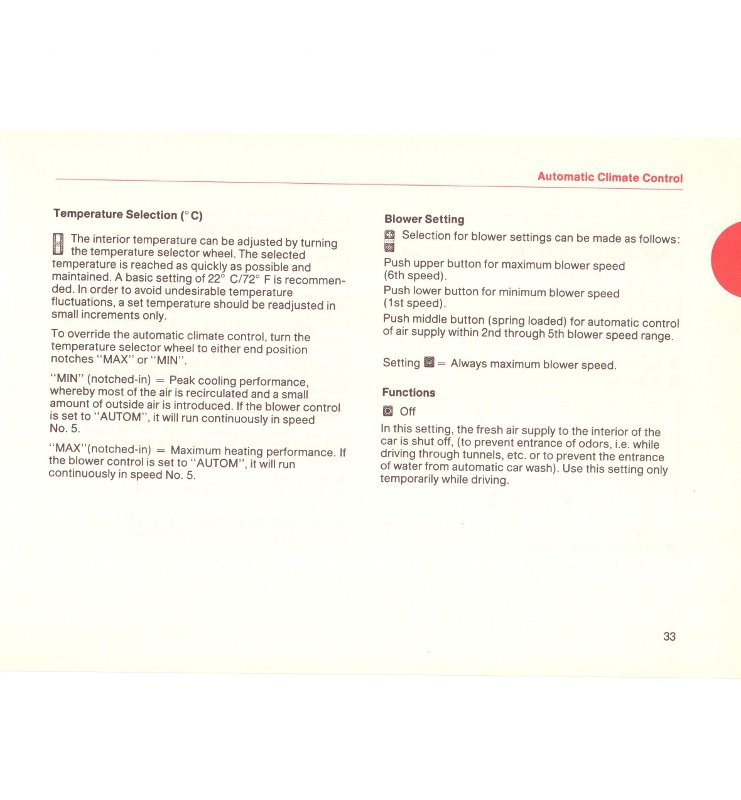

I found these awhile back and saved for my reference. I think they are scanned out of an owners manual.
Attached Thumbnails
Usage of a/c and heater buttons-300d-owners-manual-032small.jpg   Usage of a/c and heater buttons-300d-owners-manual-033small.jpg   Usage of a/c and heater buttons-300d-owners-manual-034small.jpg   Usage of a/c and heater buttons-300d-owners-manual-035small.jpg   Usage of a/c and heater buttons-300d-owners-manual-036small.jpg

Reply With Quote
  #4
Old 10-26-2017, 09:01 AM
Registered Maineiac

Join Date: Oct 2015
Location: Maine
Posts: 343
In the heating mode, warm air will occasionally be emitted from the movable nozzles (1)

Who thought that would be a good idea? It makes absolutely no sense "hey you're driving in the cold, so how about we don't blow hot air out of the center vents" I'll never understand... I thought it was broken for the longest time after rebuilding the climate computer, then I eventually read that in my manual.

I digress... From left to right you have:
Defrost - full heat and full AC at the same time with full blower. Gives you warm dry air to the windshield. No recirculate.

Bilev (what an american car would call it) - defrost vents, dash vents, and floor vents.

same as bilev, but no defrost vents. American cars might call this "Max A/C".

Same as above but economy mode, no A/C.

Fan control in auto gives you speeds 2 through 4 automatically. Bottom button is speed 1, top button is speed 5.
__________________
1984 300TD -- summer daily driver
Many others that aren't Mercedes...
Reply With Quote
  #5
Old 10-27-2017, 09:27 PM
Registered User

Join Date: Oct 2017
Posts: 2
Thanks a lot
Reply With Quote
