Coverlay dash cover before & after photos - 190D W201

My 190D had 2 major and 3 minor cracks in its dash, and I wanted to fix them. I read about the Coverlay dash cover, but I really didn't know if it would look good, or if it would look like a horrible quick-fix. I couldn't find a single photo anywhere showing what it looked like after installation.

I decided to give it a try anyway, so I ordered one from Performance Products. I finally got around to installing it yesterday, so I thought I'd post the photos so that other people can see what it looks like...

My general experience was that it looks really good when it is finished. Unless you know what to look for, you'd never suspect that it was there. Of course, I've only had it for 24 hours, so I'll have to see how it lasts long-term.

Unfortunately, the installation process was more difficult than I had expected. For some reason, the dash cover (or my dash) was just slightly bowed in such a way that if you got the drivers side of the coverlay pressed in nicely, the passenger side poked out horizontally (towards the back of the car) about 1/2" and vice versa. If you got both sides pressed in, then the center of the dash cover (by the windshield) would bulge up. The instructions mentioned trimming the edges, however none of the edges were tight - the problem was more that the cover was very slightly distorted relative to the dash. Applying pressure everywhere would still get it to fit, so that's what I ended up doing. I was able to get it fully wedged into place everywhere while the glue dried, and once I removed the bricks, wedges, tape and phone books I had on it overnight, it seems to be fixed in place nicely. They recommend only using 7 or 8 small spots of glue, but I had to use 10 so that it was tight and wasn't bulging anywhere. The front of the cover (right by the windshield) kept popping up, so to get it to stay in place, I wedged small towels between the windshield and the dash - that worked well (but don't push too hard or the windshield could break).

On the 190 (W201), the coverlay permanently covers the front speakers (it just has a bunch of holes drilled in it over top of where the speakers are located), so before installing it, I also replaced the front speakers. I thought this would be a good idea, since I'll never be able to access them again. I left the original speaker grilles out, since they aren't necessary and would just block the sound.

So far, there are no rattles or squeaks as a result of installing the dash cover. Hopefully it lasts through the summer heat...



Attached Thumbnails

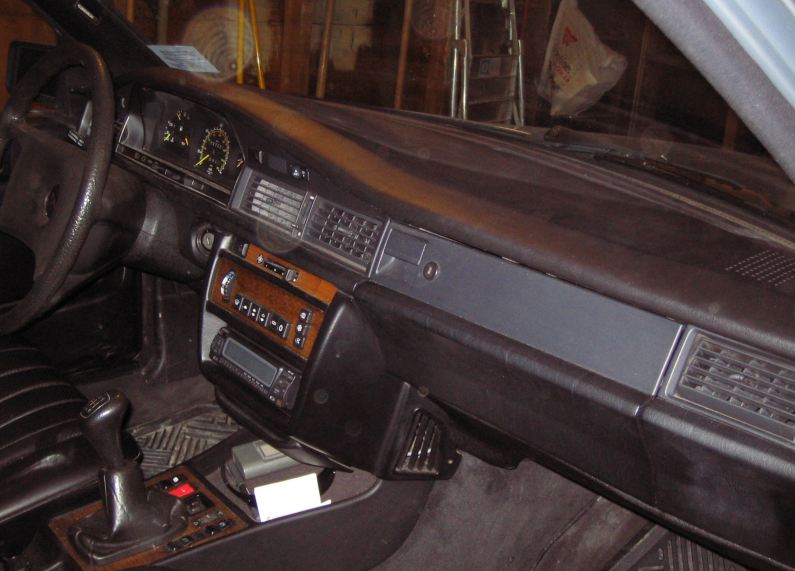

Coverlay dash cover before & after photos - 190D W201-after_small.jpg
__________________

1989 250TD Wagon 5-speed, 160,000mi ::: Dark gray metallic / black cloth
1984 190D-2.2 5-speed, 287,000mi ::: Silver-blue metallic / black MB-tex ::: SOLD
Reply With Quote
  #2
Old 04-23-2004, 12:17 PM
:::

Join Date: Jul 2003
Location: Alberta
Posts: 268
'Before' photo #1

Here's a crack before...
Attached Thumbnails
Coverlay dash cover before & after photos - 190D W201-closeup_before.jpg
__________________

1989 250TD Wagon 5-speed, 160,000mi ::: Dark gray metallic / black cloth
1984 190D-2.2 5-speed, 287,000mi ::: Silver-blue metallic / black MB-tex ::: SOLD
Reply With Quote
  #3
Old 04-23-2004, 12:18 PM
:::

Join Date: Jul 2003
Location: Alberta
Posts: 268
'After' photo #1

and here is the same area after...
Attached Thumbnails
Coverlay dash cover before & after photos - 190D W201-closeup_after.jpg
__________________

1989 250TD Wagon 5-speed, 160,000mi ::: Dark gray metallic / black cloth
1984 190D-2.2 5-speed, 287,000mi ::: Silver-blue metallic / black MB-tex ::: SOLD
Reply With Quote
  #4
Old 04-23-2004, 12:21 PM
:::

Join Date: Jul 2003
Location: Alberta
Posts: 268
'Before' photo #2

The center of the dash before...
Attached Thumbnails
Coverlay dash cover before & after photos - 190D W201-center_before_small.jpg
__________________

1989 250TD Wagon 5-speed, 160,000mi ::: Dark gray metallic / black cloth
1984 190D-2.2 5-speed, 287,000mi ::: Silver-blue metallic / black MB-tex ::: SOLD
Reply With Quote
  #5
Old 04-23-2004, 12:21 PM
:::

Join Date: Jul 2003
Location: Alberta
Posts: 268
'After' photo #2

and after...
Attached Thumbnails

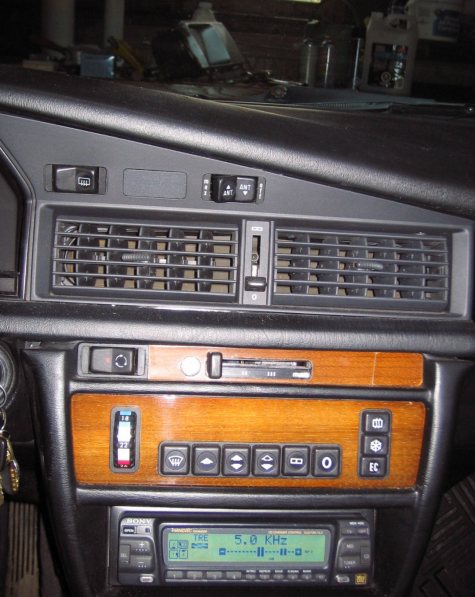

Coverlay dash cover before & after photos - 190D W201-center_after_small.jpg
__________________

1989 250TD Wagon 5-speed, 160,000mi ::: Dark gray metallic / black cloth
1984 190D-2.2 5-speed, 287,000mi ::: Silver-blue metallic / black MB-tex ::: SOLD
Reply With Quote
  #6
Old 04-23-2004, 12:38 PM
Registered User

Join Date: Apr 2004
Location: Pittsburgh, PA
Posts: 8
Thanks for posting those pics. I've been thinking about a dash cover for my 240 but was afraid it'd end up looking like cheap contact paper. Your's looks really nice. Was there much disassembly of the dash required?

Cheers,
Peter
Reply With Quote
  #7
Old 04-23-2004, 01:11 PM
TX76513's Avatar
Platinum Member

Join Date: Apr 2003
Location: Brandon, Mississippi
Posts: 5,203
Good before and after - I never think to do anything like that. Coverlay is a good product, and only the discrinating eye can catch The cap I put on the 123 was a snap - the 126 cap needed a lot of trimming and fitting before a good fit was made. It's very important to get that dry fit perfect for good results.
__________________
BENZ THERE DONE THAThttp://www.peachparts.com/shopforum/...c/progress.gif
15 VW Passat TDI
00 E420
98 E300 DT
97 E420 Donor Car - NEED PARTS? PM ME!
97 S500
97 E300D
86 Holden Jackaroo Turbo D
86 300SDL
(o\|/o)
Reply With Quote
  #8
Old 04-23-2004, 01:38 PM
:::

Join Date: Jul 2003
Location: Alberta
Posts: 268
Quote:
Originally posted by recorderguy2001
Was there much disassembly of the dash required?
No disassembly at all - it just gets glued over top of what's there. The installation procedure is:
1) Take a razor knife and cut off the raised edges of the existing cracks
2) Sand the dash with sandpaper.
3) Clean the dash and the bottom of the dash cover with ammonia-based window cleaner
4) Remove the speaker grilles if necessary
5) Test the cover to make sure it fits. Plan out where you'll need glue and how you'll hold the cover in place while the glue dries
6) Apply 6 or 7 dime-size drops of glue around the edges of the dash (clear silicone is supplied with the coverlay).
7) Put the dash cover on, wedge it in place somehow (phone books, tape, bricks, towels - careful not to scratch it) and wait for the glue to dry

That's it. As I mentioned earlier, step 5 was the hardest for me for some reason. Overall, it's not that hard - it took about 90 minutes from start to finish.
__________________

1989 250TD Wagon 5-speed, 160,000mi ::: Dark gray metallic / black cloth
1984 190D-2.2 5-speed, 287,000mi ::: Silver-blue metallic / black MB-tex ::: SOLD
Reply With Quote
  #9
Old 04-23-2004, 03:10 PM
Tymbrymi's Avatar
Klatta Klatta

Join Date: Jan 2004
Location: Olive Branch, MS
Posts: 616
Excellent tips/writeup/pictures! I've been contemplating this also, but have been worried about the speakers. I really don't like losing access to the speakers, and I was wondering if they are removable on the other models (W116 mainly)

John
'79 300SD (2)
Reply With Quote
  #10
Old 04-23-2004, 03:48 PM
olpos's Avatar
Registered User

Join Date: Sep 2003
Location: san diego.ca.
Posts: 323
came out nice.
so you were able to glue the area that had the buldge?
i have a 190e also. how much was the cover?
and was that mail order?
thanks for the picture
rich
__________________
88 300E White, sold 9-04
88 190E Black 2.3 sold
90 300CE White, Grey sold 12-24-04
92 400E White,Grey Sold 5-06
90 300CE 91K Signal Red,Black Sold 2007
1989 300CE Smoke silver,Tan Sold 1-08
1993 300E 3.2 M104 motor
1991 300CE White,Grey
1994 E420 beautiful car,gone to new home
1994 E320 Smoke an Parchment.Beautiful car
Reply With Quote
  #11
Old 04-23-2004, 03:50 PM
jas2wa's Avatar
3point5

Join Date: May 2002
Location: Charlottesville, VA
Posts: 548
Thanks for this- I have been contemplating a coverlay for the blue dash in my 84 300TD (the blue is notorious for cracking for some reason, maybe the dye or something)- it now looks like the surface of the moon, one of these will really make a big difference, now that I see how good yours looks.

-JAS
Reply With Quote
  #12
Old 04-26-2004, 02:50 PM
Registered User

Join Date: Nov 2003
Location: Outside Boston MA
Posts: 54
Could you post pics of the front speaker areaa? I want to see if it's mod-able so that you can still have access to the speakers.
__________________
1983 240D
www.againsttcpa.com
www.hydrogenaudio.org
www.ntfs.org
Reply With Quote
  #13
Old 04-27-2004, 12:29 AM
Registered User

Join Date: Mar 2002
Location: Birmingham, AL
Posts: 195
Sounds like there are a whole lotta cracked dash owners out there, but corn is the only guy willing to fix his....:p

I've been contemplating a cover as well, and noticed the holes where the speaker grills should be. I've already put in new speakers, so that's not a problem. Did you notice that the sound was diminished? Even with new speakers, a 116 SD needs all the volume it can get. Also, is there a ACC sensor on your dash? If so, was the fit decent?

Thanks for the pictures!
__________________
TClanton
1980 450SL 90K
1980 300SD 112K
Reply With Quote
  #14
Old 04-27-2004, 02:14 AM
nhodges's Avatar
Registered User

Join Date: Nov 2001
Location: Northern VA
Posts: 461
Check around with different vendors. The one I purchased from JC Whitney some years back had cutouts at the speakers. You could remove the speaker and the cover install the coverlay and put the speaker and cover back. This helped to hold the ends down. If the car has a dash sensor, a cutout for it is normally provided. In any case, the dry fit is critical to a good result.
__________________
N. Hodges
1994 S350
1987 300 SDL (for sale)
Reply With Quote
  #15
Old 04-27-2004, 10:45 AM
coachgeo's Avatar
Registered User

Join Date: Jan 2003
Location: Southern OH
Posts: 1,800
coverlay are amazing

I discovered just the other day my new to me 300D has a dash cap. Took me several months to realize this. When I bought the car for $550, I thought I was real lucky and got an EXCELLENT dash. Recently I saw some Hot glue near the instrament cluster. Closer inspection revealed it was from where the dashcap was cemented on.

__________________
"If anyone knows other lessons I need to learn, please tell me. I'm tired of learning them the hard way".
by JerryBro


The Glow Plug Wait: This waiting period is a moment of silence to pay honor to Rudolph Diesel. The longer you own your diesel the more honor you will give him". by SD Blue

My normal daily life; either SNAFUed- Situation Normal... All Fouled Up, or FUBARed- Fouled Up Beyond All Repair

62 UNIMOG Camper w/617 Turbo, 85 300SD daily driver- both powered by blended UCO fuels
