Window switches clean/repairable?

Just wondering if W123 window switches are able to be opened and cleaned/repaired. My passenger side switch doesn't work in the center console, but replacing it with the driver side switch makes the windows work, so it's the switch. Also, the switches in the rear doors themselves have never worked, so I'd like to repair them if possible as well.

I tried "opening" the passenger side switch(es) but just ended up bending the chrome border. Also, as far as junkyards go, I haven't seen switches that look exactly like mine (chrome border, no markings on the buttons except for horizontal "grip" lines, etc.), and I'm not looking forward to shelling out $90 bucks for the switch.



__________________
1980 300D
1977 450SEL
Reply With Quote
  #2
Old 09-04-2004, 01:08 PM
Jorn's Avatar
Registered User

Join Date: Nov 2003
Location: TheFlyingDutchManInHollywood
Posts: 5,805
I repaired the passenger side switch; I had two switches one was working but looked bad, the other wasn't working but looked great. I managed to open the good looking one with out breaking it (not an easy job) and replaced the internal "contacts" with the bad looking one. I was amazed how dirty the switches were inside, so it's possible to successfully open them. I found a set on Ebay for $20.
__________________
Black on Black 1979 300CD (sold), 1990 Black 300SE, Silver 1989 Volvo 780, 1988 300CE
Reply With Quote
  #3
Old 09-04-2004, 01:52 PM
Benzcrusher's Avatar
Registered User

Join Date: Jan 2004
Location: Upstate SC
Posts: 1,114
Is this the style that you have, -1981? I haven't found a way to open them... This is labeled part# 001 821 50 51 $20 delivered.
Attached Thumbnails
Window switches clean/repairable?-mvc-020f.jpg
Reply With Quote
  #4
Old 09-04-2004, 01:55 PM
Benzcrusher's Avatar
Registered User

Join Date: Jan 2004
Location: Upstate SC
Posts: 1,114

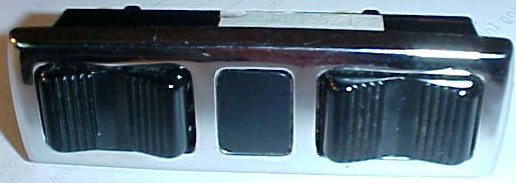

Better pic...
Attached Thumbnails
Window switches clean/repairable?-mvc-021f.jpg
Reply With Quote
  #5
Old 09-04-2004, 02:00 PM
Jorn's Avatar
Registered User

Join Date: Nov 2003
Location: TheFlyingDutchManInHollywood
Posts: 5,805
Yes that's the one. I used a small screw-driver to pry it off, carefully wiggle each side a little bit up. The silver foil comes of real easily, take your time. I have to say my bad looking one broke instantly.....

The silver part comes off and hold both switches. Maybe you can put some blue tape on the bottom of the silver part to protect it from the screw-driver.
__________________
Black on Black 1979 300CD (sold), 1990 Black 300SE, Silver 1989 Volvo 780, 1988 300CE
Reply With Quote
  #6
Old 09-04-2004, 02:01 PM
Registered User

Join Date: Apr 2004
Posts: 72
Yes

Those are the ones. I gather that they are possible, just hard? When you say pry it up, do you mean the border, the actual black plastic switches, or just the top half from the bottom half of the switch? I tried the latter but then stopped after bending the border.

Edit: Oh ok, gotcha.
__________________
1980 300D
1977 450SEL
Reply With Quote
  #7
Old 09-04-2004, 02:08 PM
Jorn's Avatar
Registered User

Join Date: Nov 2003
Location: TheFlyingDutchManInHollywood
Posts: 5,805
You have to separate the silver part from the black bottom part. Hope all makes sense?
__________________
Black on Black 1979 300CD (sold), 1990 Black 300SE, Silver 1989 Volvo 780, 1988 300CE
Reply With Quote
  #8
Old 09-04-2004, 02:37 PM
Registered User

Join Date: Apr 2004
Posts: 72
Yes

Thanks, will try it again.
__________________
1980 300D
1977 450SEL
Reply With Quote
  #9
Old 09-04-2004, 05:49 PM
kmaysob's Avatar
Registered User

Join Date: Nov 2003
Location: mesa az
Posts: 1,673
take them apart and clean them with rubbing alcohol and use and eraser on the contacts.
__________________
have no worries.....President Obama swears "If you like your gun, you can keep it
Reply With Quote
  #10
Old 09-04-2004, 07:07 PM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,359
Smile Disposable finger nail file

works much better on the contacts.
You need to clean the burn and pitting.
I will look for parts, that will allow me to make a picture DIY.
