Thumbs up Valve adjustment OM615, 616, 617 FYI.

Needed every 15000 miles.

FYI: for new members.

It is important, especially for winter starting!!!

If you DIY, do NOT mix up intake and exhaust valve positions while adjusting.
A hand drawn check box diagram to document each valve, intake and exhaust position, will save much confusion and effort.

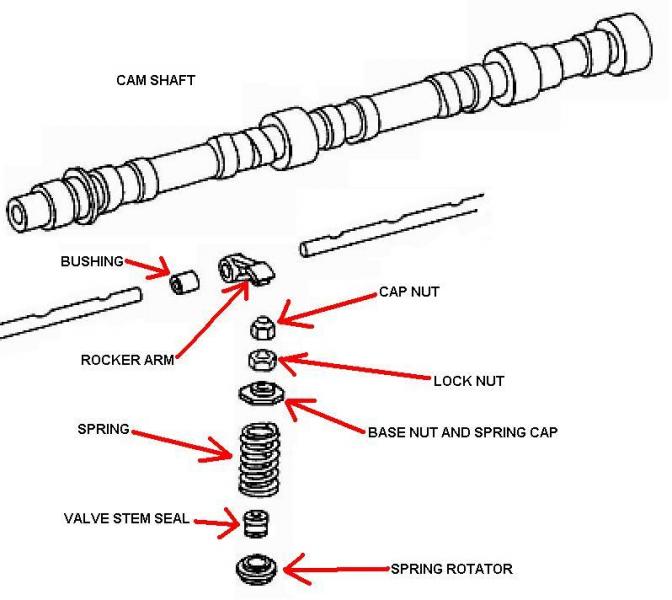

The feeler gauge goes between the cam shaft and rocker arm, graphic drawing in post #22...

You will find the MB valve wrench set handy, or you can make your own...
Home Made Special Tools, This is where members can share how they made special tools
Home Made Special Tools, This is where members can share how they made special tools - PeachParts Mercedes ShopForum

Anyone willing to post an example of engine performance change bad too good adjustment, or your mistakes will be appreciated.

Thank you.

EDIT:
Some links that are on topic.
Easy valve adjustment
Easy valve adjustment - PeachParts Mercedes ShopForum

valve adjusting wrenches
valve adjusting wrenches - PeachParts Mercedes ShopForum

Adjusting valves on 617 ?
Adjusting valves on 617 ? - PeachParts Mercedes ShopForum

Valve Adjust Tools
Valve Adjust Tools - PeachParts Mercedes ShopForum

Valve Wrenches?
http://www.peachparts.com/shopforum/showthread.php?p=859756

Pictorial - Make valve adjustment wrenches
Pictorial - Make valve adjustment wrenches - PeachParts Mercedes ShopForum

Just adjusted the valves on my 300SD
Just adjusted the valves on my 300SD - PeachParts Mercedes ShopForum


http://www.startekinfo.de/etools/content/tool.jsp?toolno=615%20589%2000%2003%2000

Here is a nice DIY with pictures, but I disagree about using an offset key, IMO you are better served by rolling in a new timing chain.
http://mb.bolinko.org/15/warsztat-mainmenu-32/silnik-om617-mainmenu-75/62-engine-timing-valves/325-inspection-and-adjustment-of-camshaft-timing.html

Vlave Wrenches 617 sold on Ebay appear to be new Manufacture not welded.

:EDIT 2:
Members requested the following data and attached pictures be added to post #1 for easy access.


OM617.952
COLD adjustment:

Intake 0.10 MM

Exhaust 0.35 MM

Hot adjustment:

Intake 0.15 MM

Exhaust 0.40 MM

*******************

Stripped valve nuts are becoming more common.
http://www.peachparts.com/shopforum/diesel-discussion/347049-stripped-valve-nut.html

.
Attached Thumbnails
Valve adjustment OM615, 616, 617 FYI.-valve%2520adjustment4245567689.jpg   Valve adjustment OM615, 616, 617 FYI.-vad_68468.jpg   Valve adjustment OM615, 616, 617 FYI.-valve_adjustment_om616_and_naturally_aspirated_om617_6546846864.jpg   Valve adjustment OM615, 616, 617 FYI.-valvetrain_qodkwdsjz_1.jpg
__________________
ASE Master Mechanic
asemastermechanic@juno.com

Prototype R&D/testing:
Thermal & Aerodynamic System Engineering (TASE) Senior vehicle instrumentation technician.
Noise Vibration and Harshness (NVH).
Dynamometer.
Heat exchanger durability.
HV-A/C Climate Control.
Prototype Vehicle build.
Prototype Fleet Durability
Prototype vehicle instrumentation.
Technical Quality Auditor.
Automotive Technical Writer

1973 300D
1973 309D - stolen
1978 280SE
1980 240D
1983 300D
1984 190D

Last edited by whunter; 01-12-2014 at 08:36 PM.
Reply With Quote
  #2
Old 11-12-2004, 12:38 PM
d.delano's Avatar
Dönerkebap

Join Date: May 2004
Location: DC
Posts: 1,466
Whatever you do if you are new to this do NOT get the throttle linkage reversed at the lever that goes to the CC actuator. I did that.
__________________
'02 BMW 325i
'85 300D 450k
'93 190E 2.6 170k(killed by tree)
'08 Ducati Hypermotard 1100S 6k
'06 Ducati S2R800 14k(sold)
Reply With Quote
  #3
Old 11-12-2004, 12:41 PM
tomm9298's Avatar
Diesel and WVO ..

Join Date: Sep 2004
Location: South Carolina NO RUST
Posts: 502
Thumbs up Wrenches

Where is a good place, read that as cheap, to get these bent wrenches. I do not have a shop or a vise to bend new ones.
__________________
1984 300D Turbo Sedan (Hilda) 272,115 miles.....
Anthracite Gray/Palamino Leather, I am 3rd owner

2001 Dodge Stratus (Silver) (wifes) 55814 miles...

1982 280TE Wagon Astral Silver Metallic/
Anthracite Velour
260,512 miles (Eva)

1969 230 Sedan Olive Green/Black MBTex
4 Speed Manual
84,213 miles ????
Haus Frau


2004 Boreem Ninja Pocket Bike
Highly Modified 49cc (Ling Ling)

Einigkeit und Recht und Freiheit
Reply With Quote
  #4
Old 11-12-2004, 12:41 PM
Registered User

Join Date: Sep 2004
Location: Bothell, WA
Posts: 237
I found that general engine smoothness improved after adjusting the valves. The nature of the clatter changed, and there was less of a metallic edge to the sound at idle.

A system of paint dots on the various linkage arms will save a lot of guessing later.

My car is garaged over night and temperatures here in the Northwest have been mild so far, so I don't notice a lot of difference in starting. My car starts extremely quickly whether hot or cold.

The offset wrenches can be purchased economically on eBay.

Kevin
__________________
'85 300SD
Reply With Quote
  #5
Old 11-12-2004, 12:55 PM
boneheaddoctor's Avatar
Senior Benz fanatic

Join Date: May 2004
Location: Hells half acre (Great Falls, Virginia)
Posts: 16,007
Quote:
Originally Posted by tomm9298
Where is a good place, read that as cheap, to get these bent wrenches. I do not have a shop or a vise to bend new ones.
I paid $58 for a new 3 piece HAZET set on ebay....................


Wooo Hooo back to the 1,000 post level again.
__________________
Proud owner of ....
1971 280SE W108
1979 300SD W116
1983 300D W123
1975 Ironhead Sportster chopper
1987 GMC 3/4 ton 4X4 Diesel
1989 Honda Civic (Heavily modified)
---------------------
Section 609 MVAC Certified
---------------------
"He who fights with monsters might take care lest he thereby become a monster. And if you gaze for long into an abyss, the abyss gazes also into you." - Friedrich Nietzsche
Reply With Quote
  #6
Old 11-12-2004, 01:18 PM
Registered User

Join Date: Sep 2004
Posts: 8,517
Quote:
Originally Posted by whunter

Anyone willing to post an example of engine performance change bad too good adjustment or your mistakes will be appreciated.

Thank you.
I adjusted my valves (all were tight), cleaned the ALDA crossover line, and cleaned the injectors with a can of Diesel Purge. The improvement in engine performance was incredible. When adjusting the valves, make sure to measure between the cam and lifter, not between the lifter and valve.

1982 300D, 133K mikes
Reply With Quote
  #7
Old 11-12-2004, 01:46 PM
webwench
Guest

Posts: n/a
BF and I adjusted my valves about 3 weeks ago, and there was a notable difference (improvement) in smoothness, and some improvement in power. Only three were tight; the rest were ok. The transmission also started shifting more smoothly, so smoothly in fact I thought something must surely be wrong

I picked up a 3-piece set of hazet wrenches on eBay for $55, and ordered a new valve cover gasket from fastlane, which came in no time.

While messing with the valve cover, it's a good time to check the condition of the injector fuel return lines; mine were so old and brittle than when we knocked one off trying to get the valve cover back on, they wouldn't re-seat without cracking!

It's also a good time to lube up the throttle linkage joints with white lithium grease. We pried each apart with a screwdriver, squeezed in a little grease, then popped them back together.

Also a good time to adjust the bowden cable as necessary.

I didn't think of it at the time, but an easy way to remember how to put the throttle linkage back together would be through judicious use of a digitial camera
Reply With Quote
  #8
Old 11-12-2004, 01:47 PM
Registered User

Join Date: Dec 2002
Location: RI shore
Posts: 2,937
what is it that makes valve adjustment difficult without special wrenches? I do admit to grinding down the thickness of 1 old wrench and, all in all, I thought it was pretty easy. Then again, pulling the whole powertrain isn't too bad in my book either, as long as everything isn't dripping with oil. for those of you who have done it with standard wrenches vs. something like a set of hazet wrenches, just how much easier do the wrenches make it? what am I missing?
__________________
'82 300SD - 361K mi - "Blue"

"Good judgement comes from experience. Experience comes from bad judgement."

listen, look, .........and duck.
Reply With Quote
  #9
Old 11-12-2004, 01:51 PM
Registered User

Join Date: Dec 2002
Location: RI shore
Posts: 2,937
I've taken a bunch of digital pictures for stuff like that, and it's nice to know you have it. The wires from the starter, vacuum lines, and spacers for holding the trans cooler lines on the oil pan are other areas which i have found pictures helpful
__________________
'82 300SD - 361K mi - "Blue"

"Good judgement comes from experience. Experience comes from bad judgement."

listen, look, .........and duck.
Reply With Quote
  #10
Old 11-12-2004, 01:55 PM
Banned

Join Date: May 2002
Location: Blue Point, NY
Posts: 25,396
Quote:
Originally Posted by Pete Burton
what is it that makes valve adjustment difficult without special wrenches? I do admit to grinding down the thickness of 1 old wrench and, all in all, I thought it was pretty easy. Then again, pulling the whole powertrain isn't too bad in my book either, as long as everything isn't dripping with oil. for those of you who have done it with standard wrenches vs. something like a set of hazet wrenches, just how much easier do the wrenches make it? what am I missing?
Jeff made me a set of bent wrenches to use for the valve adjustment. I have loaned them to Steve to do the valves on the 300D. Next time you need to do valves, you can borrow them and then you can decide how much of an improvement they are. Nothing like getting someone who has done it with standard wrenches to now try it with the angular ones!

Let me know when you need 'em.
Reply With Quote
  #11
Old 11-12-2004, 01:56 PM
Registered User

Join Date: Nov 2004
Location: CT, USA
Posts: 472
I bought a pair of long handled 14mm wrenches at AutoZone for about $8 a piece and bent them with a propane torch and a hammer (I don't have a vise, just vices). It took about a half-hour and my left hand (the one holding the far end of the wrench was a bit numb, but the wrenches work fine. Ideally it would be nice to grind them down to about 5mm thick, but it wasn't really a problem.

Having owned dozens of air-cooled VWs, where I adjusted the valves every 1,500 miles (about every other weekend), it was nice just not having to be laying on the ground while doing the adjustments.
Reply With Quote
  #12
Old 11-12-2004, 01:57 PM
boneheaddoctor's Avatar
Senior Benz fanatic

Join Date: May 2004
Location: Hells half acre (Great Falls, Virginia)
Posts: 16,007
Quote:
Originally Posted by Pete Burton
what is it that makes valve adjustment difficult without special wrenches? I do admit to grinding down the thickness of 1 old wrench and, all in all, I thought it was pretty easy. Then again, pulling the whole powertrain isn't too bad in my book either, as long as everything isn't dripping with oil. for those of you who have done it with standard wrenches vs. something like a set of hazet wrenches, just how much easier do the wrenches make it? what am I missing?
Sometimes the valve wants to rotate.....and if you don't have a friend to hold a screwdrive to jam that you will see. I made wrenches, after having half the valves insist on rotating I went and bought the set.

Some people have no problems with the 2 wrench system, others like me do.
__________________
Proud owner of ....
1971 280SE W108
1979 300SD W116
1983 300D W123
1975 Ironhead Sportster chopper
1987 GMC 3/4 ton 4X4 Diesel
1989 Honda Civic (Heavily modified)
---------------------
Section 609 MVAC Certified
---------------------
"He who fights with monsters might take care lest he thereby become a monster. And if you gaze for long into an abyss, the abyss gazes also into you." - Friedrich Nietzsche
Reply With Quote
  #13
Old 11-12-2004, 02:03 PM
Registered User

Join Date: Dec 2002
Location: RI shore
Posts: 2,937
Quote:
Having owned dozens of air-cooled VWs, where I adjusted the valves every 1,500 miles (about every other weekend), it was nice just not having to be laying on the ground while doing the adjustments.
boy, is that ever true! I had a corvair for years, and the procedure was to adjust the (hydraulic) lifters something like 1/2 to 1 turn in from no lash. This was done with car idling and a 1/3 valve cover installed to recapture some of the oil. The rest went on guess who. Yuck.
__________________
'82 300SD - 361K mi - "Blue"

"Good judgement comes from experience. Experience comes from bad judgement."

listen, look, .........and duck.
Reply With Quote
  #14
Old 11-12-2004, 04:09 PM
d.delano's Avatar
Dönerkebap

Join Date: May 2004
Location: DC
Posts: 1,466
Quote:
Originally Posted by tangofox007
When adjusting the valves, make sure to measure between the cam and lifter, not between the lifter and valve.

1982 300D, 133K mikes
Guess I screwed up then. I felt between the valve and lifter. Good thing I got me some wrenches and a new gasket! Could somebody PLEASE gimme the correct intake and exhaust clearances, there are some conflicting numbers out there.
__________________
'02 BMW 325i
'85 300D 450k
'93 190E 2.6 170k(killed by tree)
'08 Ducati Hypermotard 1100S 6k
'06 Ducati S2R800 14k(sold)
Reply With Quote
  #15
Old 11-12-2004, 04:24 PM
Registered User

Join Date: Nov 2004
Location: CT, USA
Posts: 472
On my 85 300 TD-T there is a plate on the frame right in front of the radiator with the clearances on it.

intake 1 mm, exhaust 3.5 mm cold

intake 1.5 mm, exhaust 4.0 mm warm
Reply With Quote
