300SD Broken Timing Chain Repair

It's time to get my 300SD engine back together. Some may remember I bought it on eBay a month ago with a broken timing chain. Can't see any valve damage, but it doesn't matter as the cam is broken in three pieces as well as two cam towers.

I've taken the head off and got a replacement from a friend (Thanks 300SD Sady!). I pulled the pin and put in a new chain slide rail. The replacement head is ready to put on. But first I want to install a block heater as this block does not have one. I purchased a 19mm allen key and used a 5 foot pipe to loosen the plug. A 1-13/16" socket and a 3/4" ratchet helped me get the heating element into the block. I replaced some of the coolant and verified that the element worked.

It was misting outside so I closed the hood for the night. Now for some deep thoughts and planning.

The chain is hanging out the driver side of the block and there is none on the other side of course. This means I can't roll in a new chain (even if it were timed correctly). My thoughts were to remove the oil pan and either thread a wire or chain down the banana rail and connect it to the end of the broken chain at the bottom of the pan by the crank gear. I could then turn the crank and bring out the new chain. I could alway loosen the chain and turn the crank until it get to TDC so that I could set then the cam timing.

Good? Well not quite as the IP is not timed at all!

I guess I'll have to take off the IP, but how do I time the gear for the IP?

Attached Thumbnails

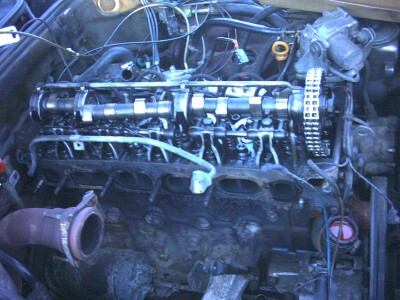

300SD Broken Timing Chain Repair-head-engine.jpg   300SD Broken Timing Chain Repair-top-block.jpg
__________________
Michael LaFleur

'05 E320 CDI - 86,000 miles
'86 300SDL - 360,000 miles
'85 300SD - 150,000 miles (sold)
'89 190D - 120,000 miles (sold)
'85 300SD - 317,000 miles (sold)
'98 ML320 - 270,000 miles (sold)
'75 300D - 170,000 miles (sold)
'83 Harley Davidson FLTC (Broken again) :-(
'61 Plymouth Valiant - 60k mikes
2004 Papillon (Oliver)
2005 Tzitzu (Griffon)
2009 Welsh Corgi (Buba)

Reply With Quote
  #2
Old 12-06-2004, 10:41 PM
Registered User

Join Date: Aug 2001
Location: Evansville, Indiana
Posts: 8,150
I'd pull the balancer and the vac pump. Drop the chain down the driver's side and fish around the timer and down and around the crank (chain is accessable on the 617 with the balancer pulled) and then use some wire to pull it up while turning the engine backwards. You could do this the other way if you want, I suppose. Should be fairly easy with the head off.

Crimp the chain and then hold it up while setting the crank to TDC on #1, then install head and cam, get the cam timing correct, then pull IP and set it correctly and adjust timing.

If you want to pull the engine, you can just turn it upside down and drop the chain in after you pull the lower pan. You will still have to fish it around the injection timer (remove the "lock" screw on the side) and crimp on the sprocket.

Whatever you do, I suspect you will have to pull the IP to set it.

Peter
__________________
1972 220D ?? miles
1988 300E 200,012
1987 300D Turbo killed 9/25/07, 275,000 miles
1985 Volvo 740 GLE Turobodiesel 218,000
1972 280 SE 4.5 165, 000 - It runs!
Reply With Quote
  #3
Old 12-06-2004, 10:53 PM
mplafleur's Avatar
User Friendly

Join Date: Sep 2001
Location: Lathrup Village, Michigan
Posts: 2,939
I didn't really want to pull the balancer and the vaucuum pump. (are you saying to take off the timing chain cover?)

Is the injection pump timing gear marked? Or does it not matter where that gear is?

If not, could I remove the IP, get the chain threaded through somehow timed with the cam and then put on and time the IP?

Does removal of the vacuum pump give me front access to the IP gear?
__________________
Michael LaFleur

'05 E320 CDI - 86,000 miles
'86 300SDL - 360,000 miles
'85 300SD - 150,000 miles (sold)
'89 190D - 120,000 miles (sold)
'85 300SD - 317,000 miles (sold)
'98 ML320 - 270,000 miles (sold)
'75 300D - 170,000 miles (sold)
'83 Harley Davidson FLTC (Broken again) :-(
'61 Plymouth Valiant - 60k mikes
2004 Papillon (Oliver)
2005 Tzitzu (Griffon)
2009 Welsh Corgi (Buba)


Last edited by mplafleur; 12-06-2004 at 11:12 PM.
Reply With Quote
  #4
Old 12-06-2004, 11:25 PM
Registered User

Join Date: Aug 2001
Location: Evansville, Indiana
Posts: 8,150
New to 617s, eh?

Timing chain "cover" is part of the block casting, non removable (to say the least....).

You will have to remove either the oil pan (lower part) or the balancer to get the chain around the sproket. If you want to leave the engine in place, I'd vote for the balancer just because you are right there, and it's not TOO bad. Look up Larry Bible's hints on re-installation.

IP will HAVE to come out to time it, there are not external marks. When you pull it, you will find a missing spline, an index on the crankshaft (of the IP) and a mark on the face -- set engine to 26 degrees BTDC, align marks on pump, and re-install. The IP drive spline goes into a sleeve that fits on the matching spline on the injection timer (behind the vac pump). You will then need to actually set exact IP timing by the drip method (again, a search should get good instructions).

Take a good look down around the crank with the tensioner rail out. If you can see even a link or two of chain, try to snag it with something and pull it up while you run the crank around backwards to get it up far enough to grab. You can then use the old chain to pull a new one in.

Peter
__________________
1972 220D ?? miles
1988 300E 200,012
1987 300D Turbo killed 9/25/07, 275,000 miles
1985 Volvo 740 GLE Turobodiesel 218,000
1972 280 SE 4.5 165, 000 - It runs!
Reply With Quote
  #5
Old 12-06-2004, 11:45 PM
mplafleur's Avatar
User Friendly

Join Date: Sep 2001
Location: Lathrup Village, Michigan
Posts: 2,939
Thanks Peter.

While I'm not exactly "new" to to the 617, it has been 15 or more years since I've had one apart and I do think that my oldest brother put this part together while I was at work.

OK, I take the IP out and reset it. I have a digital tester to set the timing.

BTW, I fished out one the clips for the timing chain. From what I can tell, the timing chain broke at the master link which was not a crimp style.
__________________
Michael LaFleur

'05 E320 CDI - 86,000 miles
'86 300SDL - 360,000 miles
'85 300SD - 150,000 miles (sold)
'89 190D - 120,000 miles (sold)
'85 300SD - 317,000 miles (sold)
'98 ML320 - 270,000 miles (sold)
'75 300D - 170,000 miles (sold)
'83 Harley Davidson FLTC (Broken again) :-(
'61 Plymouth Valiant - 60k mikes
2004 Papillon (Oliver)
2005 Tzitzu (Griffon)
2009 Welsh Corgi (Buba)

Reply With Quote
  #6
Old 12-22-2004, 09:36 PM
mplafleur's Avatar
User Friendly

Join Date: Sep 2001
Location: Lathrup Village, Michigan
Posts: 2,939
Here's an update.

I removed the injection pump last night and then the vacuum pump. When I took the vacuum pump off, some pieces fell out. I didn't think that was right. Look below to see what I found.

The bearing is seperated from the arm and the shaft through the spring is bent. The insides of the pump seperated and got stuck in the gear. This is why the timing chain broke. Interestingly, the chain broke at the connecting link, which was a CLIP and not the crimp type.
Attached Thumbnails
300SD Broken Timing Chain Repair-vacuum-pump.jpg
__________________
Michael LaFleur

'05 E320 CDI - 86,000 miles
'86 300SDL - 360,000 miles
'85 300SD - 150,000 miles (sold)
'89 190D - 120,000 miles (sold)
'85 300SD - 317,000 miles (sold)
'98 ML320 - 270,000 miles (sold)
'75 300D - 170,000 miles (sold)
'83 Harley Davidson FLTC (Broken again) :-(
'61 Plymouth Valiant - 60k mikes
2004 Papillon (Oliver)
2005 Tzitzu (Griffon)
2009 Welsh Corgi (Buba)

Reply With Quote
  #7
Old 12-22-2004, 10:13 PM
1985 300SD Sady's Avatar
Star Crazy

Join Date: Sep 2004
Location: Cincinnati, Ohio
Posts: 1,038
Hey,

Thanks for giving me credit for the head!

If i were you, I would just order a vac pump rebuild kit, but i am lost when it comes to all of this talk about the routing of the timint chain, because I have never taken one apart.

Hope all goes well, And MERRY CHRISTMAS
Reply With Quote
  #8
Old 12-29-2004, 04:02 PM
mplafleur's Avatar
User Friendly

Join Date: Sep 2001
Location: Lathrup Village, Michigan
Posts: 2,939
I've got my replacement vacuum pump. (Thanks mespe) Now I'm trying to thread in the new chain.

Question:

Should the vacuum pump/injection pump gear turn freely or not?

Remember, I have both the vacuum pump and the injection pump removed.

I thought it should but mine is not. That's going to make it difficult to put this new chain in. It is bunched up at the crank and I'm trying to grab it and turn the crank as to get it to come up the tension rail side. When I get it to the top I'll put the new head on and then splice in the new chain. At some point I'm going to have to set the crank at TDC and then set the cam.
__________________
Michael LaFleur

'05 E320 CDI - 86,000 miles
'86 300SDL - 360,000 miles
'85 300SD - 150,000 miles (sold)
'89 190D - 120,000 miles (sold)
'85 300SD - 317,000 miles (sold)
'98 ML320 - 270,000 miles (sold)
'75 300D - 170,000 miles (sold)
'83 Harley Davidson FLTC (Broken again) :-(
'61 Plymouth Valiant - 60k mikes
2004 Papillon (Oliver)
2005 Tzitzu (Griffon)
2009 Welsh Corgi (Buba)

Reply With Quote
  #9
Old 12-29-2004, 05:04 PM
engatwork's Avatar
Registered User

Join Date: May 2000
Location: Soperton, Ga. USA
Posts: 13,648
It should turn freely.
__________________
Jim
Reply With Quote
  #10
Old 12-29-2004, 05:10 PM
mplafleur's Avatar
User Friendly

Join Date: Sep 2001
Location: Lathrup Village, Michigan
Posts: 2,939
Well, it looks like the chain is bunched up underneath and binding the gear.

It looks like I'm going to grind off the oil pump chain and remove the pump. This will give me access to the front main bearing. If I take that off I have free access to the crank gear and chain from below.

I just got off the phone with Phil at Fastlane and he is sending me an oil pump chain with a master link, a vacuum pump gasket and an oil housing gasket.
__________________
Michael LaFleur

'05 E320 CDI - 86,000 miles
'86 300SDL - 360,000 miles
'85 300SD - 150,000 miles (sold)
'89 190D - 120,000 miles (sold)
'85 300SD - 317,000 miles (sold)
'98 ML320 - 270,000 miles (sold)
'75 300D - 170,000 miles (sold)
'83 Harley Davidson FLTC (Broken again) :-(
'61 Plymouth Valiant - 60k mikes
2004 Papillon (Oliver)
2005 Tzitzu (Griffon)
2009 Welsh Corgi (Buba)

Reply With Quote
  #11
Old 12-29-2004, 05:16 PM
Registered User

Join Date: Sep 2001
Location: central Texas
Posts: 17,281
"which was a CLIP and not the crimp type"
Can you tell if it was installed with the open end forward or rearward ?
Reply With Quote
  #12
Old 12-29-2004, 05:23 PM
Rick Miley's Avatar
Spark Free

Join Date: Jun 1999
Location: Land O Lakes, FL
Posts: 3,086
It probably didn't matter much if the vacuum pump spewed parts into it.
__________________
Rick Miley
2014 Tesla Model S
2018 Tesla Model 3
2017 Nissan LEAF
Former MB: 99 E300, 86 190E 2.3, 87 300E, 80 240D, 82 204D Euro
Chain Elongation References
Reply With Quote
  #13
Old 12-29-2004, 05:55 PM
edblock's Avatar
Registered User

Join Date: Sep 2001
Location: Austin, TX
Posts: 55
I have done a very similar timing chain replacement, the only thing I can add to the good info I read so far is that you chould check the timing chain idler sprocket in the head. On mine, the pin and/or bushing were worn such that the sprocket wobbled and eventually shattered, and the schrapnel from it killed my vac pump, IP timing device, timing chain, chain rails, and oil pump chain. No wonder I couldn't get the IP timing correct! I used a piece of 18 gauge solid copper wire to fish the new timing chain around the crank, then put on the cam gear and IP timing device, synced cam and crank, set it to 26 degrees, then pulled IP to set it as described above.

It's was a *****, but reinforced my belief that the 617's are virtually bulletproof.

Best of luck,
__________________
1978 300SD 149K miles silver-blue "Maxine" (mine!)
1979 300SD 318K miles red "Helga" (SOLD)
1980 300SD 321K miles yellow "Linda" (younger daughter's)
1980 300SD 148K miles blue (SOLD)
1980 300SD 153K miles green(parts car, SOLD)
Yes, I have a W116 fetish :-)
Reply With Quote
  #14
Old 12-29-2004, 05:56 PM
mplafleur's Avatar
User Friendly

Join Date: Sep 2001
Location: Lathrup Village, Michigan
Posts: 2,939
Quote:
Originally Posted by leathermang
"which was a CLIP and not the crimp type"
Can you tell if it was installed with the open end forward or rearward ?
Can't tell as all I found was the clip.

I got the pump off and am trying to thread the old chain around the crank sprocket. There is a very small gap at the bottom forward section of the main bearing cap that I may be able to get the chain back up through (if it doen'st bind too much), though it doesn't look hopeful.

I guess it's no big deal to take the bearing cap off and put back on again.
__________________
Michael LaFleur

'05 E320 CDI - 86,000 miles
'86 300SDL - 360,000 miles
'85 300SD - 150,000 miles (sold)
'89 190D - 120,000 miles (sold)
'85 300SD - 317,000 miles (sold)
'98 ML320 - 270,000 miles (sold)
'75 300D - 170,000 miles (sold)
'83 Harley Davidson FLTC (Broken again) :-(
'61 Plymouth Valiant - 60k mikes
2004 Papillon (Oliver)
2005 Tzitzu (Griffon)
2009 Welsh Corgi (Buba)

Reply With Quote
  #15
Old 12-29-2004, 07:15 PM
Registered User

Join Date: Dec 2002
Location: RI shore
Posts: 2,937
sounds like you know what you're doing, but here's what happens when you forget to torque the oil pump sprocket bolt. (thought I knew what i was doing until I did this) BTW, the chain for the oil pump should be continuous, without a clip. You can put a continuous chain on without removing the sprocket (I did it last time)
Attached Thumbnails
300SD Broken Timing Chain Repair-hole1.jpg

__________________
'82 300SD - 361K mi - "Blue"

"Good judgement comes from experience. Experience comes from bad judgement."

listen, look, .........and duck.
