I just put in a Stanadyne FM 100 housing with a 3.6" 30 micron filter on my 300SD. I also added a drag point vacuum gauge between the fuel pump and the FM 100. I'm getting 17 inHg after WOT on the way to 75 MPH. This seems a bit high. It can't be the new FM 30 micron... or maybe I got a bad one. Maybe I have a clogged tank screen too. I'm going to bypass the FM 100 and see what I get.

Does anyone know what the vacuum should be in between the tank and the fuel pump?
__________________

__________________
83 300SD (Pepe)
03 Golf TDI (Sandy)
Both running on B100

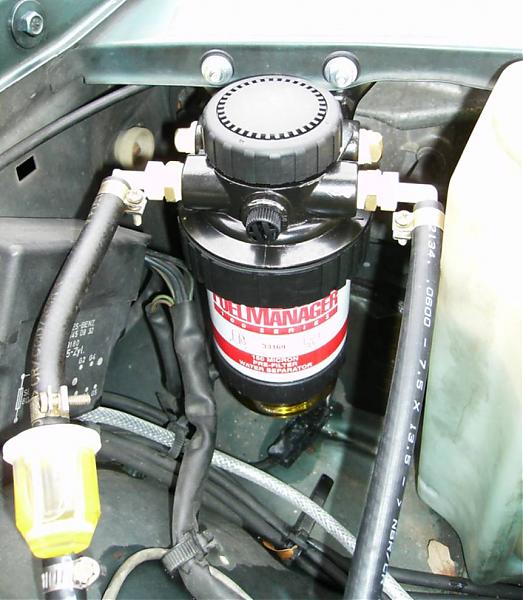

Here's a photo of my FM100 installation completed this morning. Still need to dress the hoses.....

Attached Thumbnails



__________________
Bob
'82 300D Petrol B-G Metallic

I found a source for $37.

http://www.mwfi.com/Stanadyne_Filter/Stanadyne_filters_Head.htm

__________________
Michael LaFleur

'05 E320 CDI - 86,000 miles
'86 300SDL - 360,000 miles
'85 300SD - 150,000 miles (sold)
'89 190D - 120,000 miles (sold)
'85 300SD - 317,000 miles (sold)
'98 ML320 - 270,000 miles (sold)
'75 300D - 170,000 miles (sold)
'83 Harley Davidson FLTC (Broken again) :-(
'61 Plymouth Valiant - 60k mikes
2004 Papillon (Oliver)
2005 Tzitzu (Griffon)
2009 Welsh Corgi (Buba)

There are many who ADD water to their WVO upon injection into the airstream.

They purport that it cleans the valves, pistons/rings.

__________________
Michael LaFleur

'05 E320 CDI - 86,000 miles
'86 300SDL - 360,000 miles
'85 300SD - 150,000 miles (sold)
'89 190D - 120,000 miles (sold)
'85 300SD - 317,000 miles (sold)
'98 ML320 - 270,000 miles (sold)
'75 300D - 170,000 miles (sold)
'83 Harley Davidson FLTC (Broken again) :-(
'61 Plymouth Valiant - 60k mikes
2004 Papillon (Oliver)
2005 Tzitzu (Griffon)
2009 Welsh Corgi (Buba)

Injection into the air stream is completely different than water traveling through the fuel injection system.

I just wanted to double check before I installed my FM100. There are 2 sides with there own in and out.

One side #2-in/#1-out.

the other #3-in/#4-out

I can choose just to use 1 and 2 only and block off the other side?

or I can use #2 on one side and #4 on the other?

__________________
1982 300D Turbo

You can.

How many miles is the Standyne filter good for?

As often as an oil filter?

__________________
1982 300D Turbo

Fuel filter longevity has much more dependent on fuel quality than time in service. One bad load of fuel can clog a filter in short order.

In addition, Stanadyne offers a variety of filters. Asking about "the Stanadyne filter" is a lot like asking "How heavy is a rock?"

The filter I'm using is the 30 Micron.

__________________
1982 300D Turbo

Here is some more fuel filter stuff if you are interested in replacing your 10 micron filter with a 2 micron one or a larger filter with a drain.
Lower Micron Fuel Filter Mod

__________________
84 300D, 82 Volvo 244Gl Diesel

I bought the Water Reservior Option and put it on my filter.

I thought you unscrew the bottom piece to drain water but fuel was coming out. What am I doing wrong? Does the water just collect in the bowl and stay there until you change the filter?

__________________
1982 300D Turbo

Yes. If no water drains out then your fuel does not have any water (that is a good thing).

If you are getting water in the bowl then you should buy your fuel from a different source.

I installed a FM 100 several years ago. I have never gotten more than a trace of water out of it. Which is a good thing.

Thanks Guys.

Like most Mercedes owners with the 300D, I lack visual sight of the water bowl. The filter is crammed in a corner.

But in general for future service I should open the screw and let it drain for a few seconds?
