help identify sensors 617

i got a parts w123 car from which i have pulled the engine, the car is a 78 and the engine aperently is a 79 from a 126 it has been wired very hmmmm (how would i put it...

.. anyway) and i was just wondering what are these sensors and what the use of them i the obvious will be the one on the heat one, the rest .. well thats why im posting here, thanks o yeah and is the waste gate corectly conected on the turbo?

Attached Thumbnails

Click image for larger version

Name: 1.jpg
Views: 103
Size: 51.1 KB
ID: 43979

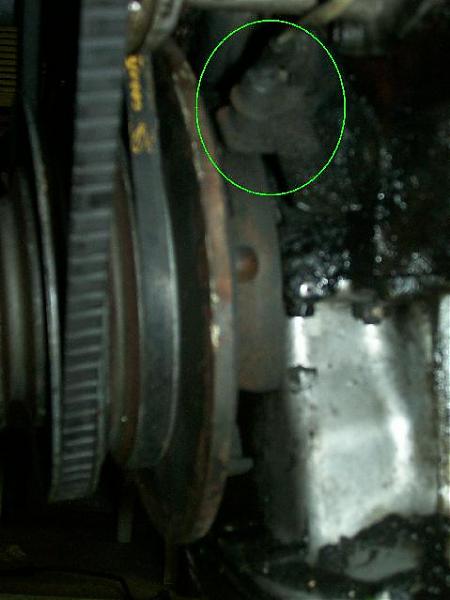

Click image for larger version

Name: 2.jpg
Views: 117
Size: 29.3 KB
ID: 43980

Click image for larger version

Name: 3.jpg
Views: 100
Size: 34.7 KB
ID: 43981

Click image for larger version

Name: 4.jpg
Views: 126
Size: 42.8 KB
ID: 43982

Click image for larger version

Name: 5.jpg
Views: 123
Size: 56.1 KB
ID: 43983
