#1
|
||||
|
||||
Turbo working or not?
I am wondering if my turbo is working on my 300td. I never hear any noise coming from the engine that sounds like a whining like I have heard on trucks.
How does one know if the turbo is working? The car is running well and has lots of power. My mechanic once told me that you will never hear the turbo because it is so well engineered. Can any one hear the turbo on their 300td? |
#2
|
||||
|
||||
It is normal to not be able to hear the turbos on these cars. If you want to check the turbo remove the U tube between the air filter and the turbo compressor inlet (engine off). The turbo wheel should spin freely and have barely any play side to side or in and out. If you really want to make sure the turbo is working there is a line running from the back of the intake manifold to a switch on the firewall, then to the ALDA on the injection pump. Disconnect this line (and clean all the black goo from it while you are at it, search for "cleaning banjo bolt"). Test drive the car with the line disconnected. Low on power? The turbo is working fine.
__________________
1979 240D- 316K miles - VGT Turbo, Intercooler, Stick Shift, Many Other Mods - Daily Driver 1982 300SD - 232K miles - Wife's Daily Driver 1986 560SL - Wife's red speed machine |
#3
|
|||
|
|||
On these cars, if you can hear the turbo there is a problem.
If your 0-60mph time is 14-16 seconds your turbo is working normally. If its 18-20 seconds its either not working or something else is causing it not to perform. |
#4
|
||||
|
||||
Yeah if the car takes 20+ seconds to 60 and feels like it has no power or pickup....then its not working.
Very very rarely do the turbo's fail.
__________________
-diesel is not just a fuel, its a way of life- '15 GLK250 Bluetec 118k - mine - (OC-123,800) '17 Metris(VITO!) - 37k - wifes (OC-41k) '09 Sprinter 3500 Winnebago View - 62k (OC - 67k) '13 ML350 Bluetec - 95k - dad's (OC-98k) '01 SL500 - 103k(km) - dad's (OC-110,000km) '16 E400 4matic Sedan - 148k - Brothers (OC-155k) |
#5
|
||||
|
||||
I can hear the whine of the turbo on my wagon. It's not loud, but I can hear that it's working. Before I put my new hood pad in, I could really hear it. I like the sound of it.
__________________
" We have nothing to fear but the main stream media itself . . . ."- Adapted from Franklin D Roosevelt for the 21st century OBK #55 1998 Lincoln Continental - Sold Max 1984 300TD 285,000 miles - Sold The Dee8gonator 1987 560SEC 196,000 miles - Sold Orgasmatron - 2006 CLS500 90,000 miles 2002 C320 Wagon 122,000 miles 2016 AMG GTS 12,000 miles |
#6
|
||||
|
||||
I can hear my turbo whistle at about 2800 rpm and up. It has been like that since I bought it in 2006 w/216,000 miles. Same turbo noise at 258,000. Ther is no end to end play that I can feel, and very little side to side play on a cold engine. Shaft spins easily.
__________________
RRGrassi 70's Southern Pacific #5608 Fairmont A-4 MOW car 13 VW JSW 2.0 TDI 193K, Tuned with DPF and EGR Delete. 91 W124 300D Turbo replaced, Pressure W/G actuator installed. 210K 90 Dodge D250 5.9 Cummins/5 speed. 400K |
#7
|
||||
|
||||
I was able to hear the turbo on the 300SD.
I could not hear the turbo on the SDL until I changed the breather tube and the foam surrounding it disintegrated. Now I can hear it when going up a hill.
__________________
"I have no convictions ... I blow with the wind, and the prevailing wind happens to be from Vichy" Current Monika '74 450 SL BrownHilda '79 280SL FoxyCleopatra '99 Chevy Suburban Scarlett 2014 Jeep Cherokee Krystal 2004 Volvo S60 Gone '74 Jeep CJ5 '97 Jeep ZJ Laredo Rudolf ‘86 300SDL Bruno '81 300SD Fritzi '84 BMW '92 Subaru '96 Impala SS '71 Buick GS conv '67 GTO conv '63 Corvair conv '57 Nomad |
#8
|
||||
|
||||
I will try the speed tests today. My 300TD is the famous 1985 model with the crap oxidizer that was a recall because it would trap too much crap and clog. I had the exhaust manifold replaced and the turbo to and earlier pre-trap oxidizer version. That made a world of difference in the acceleration and power. Also I was worried the trap oxidizer could have damaged the turbo because I have heard stories about the ceramic element sand blasting the turbo as it breaks down with age.
Thanks for the replies |
#9
|
||||
|
||||
Well now I am wondering if it is working properly because getting on the freeway from a dead stop today took more like 20 sec. not 14. I may have to take off the U-tube and see what is going on. It could also be that the engine is not tuned to optimally. Maybe I should change the air filter which I haven't looked at in 6 months. It can get gunked up with oil. I haven't changed the fuel filters for a couple of years either. Weakest link theory.
|
#10
|
|||
|
|||
Turbo boost gauge
The 617 turbo diesels have a port at the rear of the intake to check boost pressure. I think the thread is M10x1.0 or M10x1.25. Someone please correct me if I'm wrong on the size. The wastegate is factory set to open around .7 bar give or take

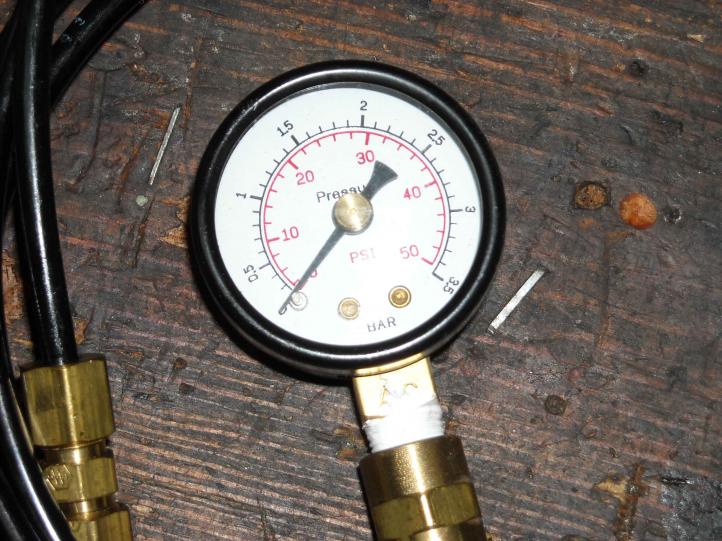

Here is an edited listing of materials to make a test gauge for turboboost. I made a test gauge out of the following materials: 8 feet of 3/16" air brake tubing one 90 degree quick connect for air brake tubing one compression fitting for 3/16 brake line one gauge that reads bar and psi short length of 3/16 brake line with metric fittings (8" piece) one coupling to connect quick connect to gauge smigen of JB Weld tubing cutter 1: Attach the quick connect to the coupling 2: Attach the coupling to the gauge 3: Attach the tubing to the quick connect 4: Using the tubing cutter, cut one of the ends off the brake line. Use a smigen of JB weld to seal the fitting to the brake line. This prevents any air leaks. DO NOT seal the flared end. Insert the cut end into the compression fitting and tighten. 5: Insert the other end of the tubing into the remaining compression fitting and tighten. 6: Let the JB Weld dry for several hours. There you have it, a gauge to check boost pressure. See the attached photographs Alan
__________________
DO IT RIGHT THE FIRST TIME, DON'T BE A HACK Political Correctness is NOT part of my vocabulary and finally FIGHT CRIME...SHOOT BACK '82 240D Stick '85 300D Auto Drove my first MB at age 16 1960 300SL W190 Last edited by AMH; 01-16-2009 at 07:44 PM. Reason: Add images, edit materials list |
#11
|
||||
|
||||
Thanks for the plans. I'll give it a try.
If you want it done right you have to do it yourself. Randy |
#12
|
|||
|
|||
Quote:
Find the ALDA on the top of the injection pump. Get a vacuum T and install it in the line to the ALDA. Connect the gauge to the T and route the tubing for the gauge into the cabin so that you can read the gauge while driving. |
#13
|
||||
|
||||
I occassionally hear a high-pitched chirpy bird-like noise, which I think might be the turbo, at the top of the gears range (just before the transmission shifts to the next gear). Turbo? Problem? The car performs fine...lots of power, 0-60 is 14-16 seconds...never really timed it but it seems powerful. Fast enough to pass Prius' on the hwy, etc.
__________________
1982 240 D, 308,000 - 321,127 miles (sold) 1982 300 TD,166,500 - 226,000 miles 1998 E 320, 120,000 - 144,000 miles 2005 C 230 K, 26,000 - 77,000 miles (sold) |
#14
|
|||
|
|||
Quote:
__________________
DO IT RIGHT THE FIRST TIME, DON'T BE A HACK Political Correctness is NOT part of my vocabulary and finally FIGHT CRIME...SHOOT BACK '82 240D Stick '85 300D Auto Drove my first MB at age 16 1960 300SL W190 |
#15
|
|||
|
|||
Most of these fellows need to make one test to confirm or deny the presence of boost. They are not going to use the setup in the future. So, what's the fastest way to get a result..........your approach...........or a simplifed approach that doesn't require any fabrication?
|
