Smile W123 Subframe bushing seating

Ok so I finally got around to changing my rear subframe mounts.
First set back was getting the Passanger side main bolt completely out.
Finally the bolt broke loose after I broke a 1/2" non-Craftsman 15 inch breaker bar.
I purchased a craftsman 18 inch breaker bar. Using it and some pipe the bolt finally started to move slowly. I was afraid I had broke it but was not the case.

So now I have the mount pryed out and the issue now is installing the new mount. I've read what I could find here and using some wood I made a jig so that I could push the mount into the hole using a floor jack. The jib supports the outer ring of the mount not the center portion. Also I used some silcone grease. After all this it still will only go so far and not seat completely.

I'm wondering if I didn't use enough force ( I didn't life the entire car yet)?
I'm wondering if I didn't use enough grease/lube ?

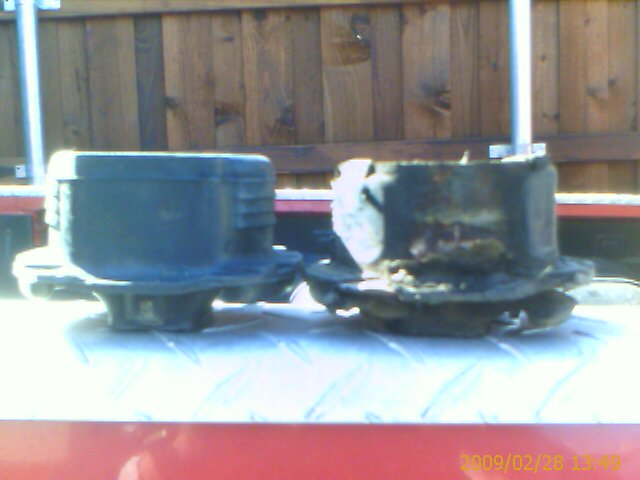

I'm wondering after comparing the old to the new if it would hurt to shave the new mount to allow it to go in ?
I'm also wondering if the 40ish degree weather today is making that new rubbber harder to work with?

I took some photos of where I am so far and maybe some of you that have done this before can give me some answers or ideas.

Attached Thumbnails
W123 Subframe bushing seating-200902281736_00678.jpg   W123 Subframe bushing seating-200902281736_00677.jpg   W123 Subframe bushing seating-200902281736_00676.jpg   W123 Subframe bushing seating-200902281350_00675.jpg   W123 Subframe bushing seating-200902281349_00674.jpg

__________________
--------------------------------
Eric in Plano,Tx
85 300D 277K overall miles
65K on WVO (2 tank)
Rebuilt Transmission at 245k miles.

96 CE LT1
94 Nissian Hardbody
96 F250 XLT PowerStroke (also runs on WVO)

Last edited by first300D; 03-01-2009 at 12:34 PM.
Reply With Quote
  #2
Old 02-28-2009, 07:29 PM
first300D's Avatar
Registered User

Join Date: Mar 2006
Location: Plano,(DFW),Tx
Posts: 161
More Photos.....
Attached Thumbnails
W123 Subframe bushing seating-200902281349_00673.jpg   W123 Subframe bushing seating-200902281348_00672.jpg   W123 Subframe bushing seating-200902281348_00671.jpg   W123 Subframe bushing seating-200902281345_00670.jpg
__________________
--------------------------------
Eric in Plano,Tx
85 300D 277K overall miles
65K on WVO (2 tank)
Rebuilt Transmission at 245k miles.

96 CE LT1
94 Nissian Hardbody
96 F250 XLT PowerStroke (also runs on WVO)
Reply With Quote
  #3
Old 02-28-2009, 09:01 PM
Scott98's Avatar
Registered User

Join Date: Aug 2003
Location: Weston, FL
Posts: 1,254
I put my bushings in the freezer overnight and then coated them with dishwashing liquid before installation. The real trick to getting them in is to use just your long bolt (maybe one washer - I can't remember) and pound the bolt with a hammer until you hear it make contact. Then tighten the bolt which will draw the bushing into place. Then remove the bolt, add all of the washers and whatever else is supposed to be there and re-tighten.

Scott
__________________
Scott
1982 Mercedes 240D, 4 speed, 275,000
1988 Porsche 944 Turbo S (70,000)
1987 Porsche 911 Coupe 109,000 (sold)
1998 Mercedes E300 TurboDiesel 147,000 (sold)
1985 Mercedes 300D 227,000 (totaled by inattentive driver with no insurance!)
1997 Mercedes E300 Diesel 236,000 (sold)
1995 Ducati 900SS (sold)
1987 VW Jetta GLI 157,000 (sold)
1986 Camaro 125,000 (sold - P.O.S.)
1977 Corvette L82 125,000 (sold)
1965 Pontiac GTO 15,000 restored (sold)
Reply With Quote
  #4
Old 03-01-2009, 12:28 PM
first300D's Avatar
Registered User

Join Date: Mar 2006
Location: Plano,(DFW),Tx
Posts: 161
Question

Thanks for the thoughts, but I thought I've heard people say that we should not push up using the center of the mount ?
__________________
--------------------------------
Eric in Plano,Tx
85 300D 277K overall miles
65K on WVO (2 tank)
Rebuilt Transmission at 245k miles.

96 CE LT1
94 Nissian Hardbody
96 F250 XLT PowerStroke (also runs on WVO)
Reply With Quote
  #5
Old 03-01-2009, 06:57 PM
first300D's Avatar
Registered User

Join Date: Mar 2006
Location: Plano,(DFW),Tx
Posts: 161
Bump !!
__________________
--------------------------------
Eric in Plano,Tx
85 300D 277K overall miles
65K on WVO (2 tank)
Rebuilt Transmission at 245k miles.

96 CE LT1
94 Nissian Hardbody
96 F250 XLT PowerStroke (also runs on WVO)
Reply With Quote
  #6
Old 03-01-2009, 10:01 PM
dagumol's Avatar
First time 'Cedes owner

Join Date: Mar 2009
Location: P-Ville, TX
Posts: 6
Is that a bolt you pulled out or a .50 cal bullet??!!
__________________
"They're made in Germany and you know Germans alwasy make good stuff."
Reply With Quote
  #7
Old 03-01-2009, 10:03 PM
first300D's Avatar
Registered User

Join Date: Mar 2006
Location: Plano,(DFW),Tx
Posts: 161
Its the Bolt for the subframe mounts. One on each side of car.
__________________
--------------------------------
Eric in Plano,Tx
85 300D 277K overall miles
65K on WVO (2 tank)
Rebuilt Transmission at 245k miles.

96 CE LT1
94 Nissian Hardbody
96 F250 XLT PowerStroke (also runs on WVO)
Reply With Quote
  #8
Old 03-02-2009, 03:16 AM
Registered User

Join Date: May 2007
Location: Out in the Boonies of Hot, Dry, Dusty, Windy Nevada
Posts: 9,652
There was a good write up I think by WHUNTER on a w126, doing his bushings, couldn`t find it.

here is a good list to look at.

www.peachparts.com/shopforum/showthread.php?t=142397

Charlie
__________________
there were three HP ratings on the OM616...

1) Not much power
2) Even less power
3) Not nearly enough power!! 240D w/auto

Anyone that thinks a 240D is slow drives too fast.

80 240D Naturally Exasperated, 4-Spd 388k DD 150mph spedo 3:58 Diff

We are advised to NOT judge ALL Muslims by the actions of a few lunatics, but we are encouraged to judge ALL gun owners by the actions of a few lunatics. Funny how that works
Reply With Quote
  #9
Old 03-03-2009, 09:12 PM
first300D's Avatar
Registered User

Join Date: Mar 2006
Location: Plano,(DFW),Tx
Posts: 161
Smile success!!!!!!!! well I think of it that way..

Well a little 1/2" threaded rod and some bolts metal and washers and I was able to force the bushings in. Passenger side still didn't go all the way in but I figured I'll watch it and give it some tightening.

The Drivers side was so fast I'm still wondering if I missed something. It appeared to go all the way in.
__________________
--------------------------------
Eric in Plano,Tx
85 300D 277K overall miles
65K on WVO (2 tank)
Rebuilt Transmission at 245k miles.

96 CE LT1
94 Nissian Hardbody
96 F250 XLT PowerStroke (also runs on WVO)
Reply With Quote
  #10
Old 05-16-2020, 07:50 PM
JHZR2's Avatar
Registered User

Join Date: Jan 2002
Location: New Jersey
Posts: 5,265
I had a very easy time with one meyle mount. The second one would not seat no matter what. Finally got the bolt in but there was a decent (1/4”) gap. After 80 miles of driving it’s more like 1/8”.

Mine was the same, D/S was much easier than P/S.

__________________
Current Diesels:
1981 240D (73K)
1982 300CD (169k)
1985 190D (169k)
1991 350SD (113k)
1991 350SD (206k)
1991 300D (228k)
1993 300SD (291k)
1993 300D 2.5T (338k)
1996 Dodge Ram CTD (442k)
1996 Dodge Ram CTD (265k)

Past Diesels:
1983 300D (228K)
1985 300D (233K)
