#1
|
|||
|
|||
300sdl leaky transmission
I have a leak in my transmission. It is leaking from the circular part as shown in the diagram. It is on the right hand side of the transmission. The circular disk can turn in both directions. What is it? How can I take it out and fix the leak?
__________________
Not MBZ nor A/C trained professional but a die-hard DIY and green engineer. Use the info at your own peril. Picked up 2 Infractions because of disagreements. NOW reversed. W124 Keyless remote, PM for details. http://www.peachparts.com/shopforum/mercedes-used-parts-sale-wanted/334620-fs-w124-chasis-keyless-remote-%2450-shipped.html 1 X 2006 CDI 1 x 87 300SDL 1 x 87 300D 1 x 87 300TDT wagon 1 x 83 300D 1 x 84 190D ( 5 sp ) - All R134 converted + keyless entry. |
#2
|
||||
|
||||
It looks like your B2 piston. Might need to get a reseal kit. search for B2 in the forum.
__________________
All it takes for evil to prevail is for good men to stand by and do nothing. Too many people tip toe through life, never attempting or doing anything great, hoping to make it safely to death... Bob Proctor '95 S320 LWB '87 300SDL '04 E500 wagon 4matic |
#3
|
||||
|
||||
X2, You'll just need a rubber o-ring for that cover. If your transmission shifts funny you might want to replace the piston/bushing while you're down there. Removing the cover is a bit tricky, there is a circular spring that retains it, you have to pry it off.
__________________
TC Current stable: - 2004 Mazda RALLYWANKEL - 2007 Saturn sky redline - 2004 Explorer...under surgery. Past: 135i, GTI, 300E, 300SD, 300SD, Stealth |
#4
|
|||
|
|||
Quote:
Thanks for the info.
__________________
Not MBZ nor A/C trained professional but a die-hard DIY and green engineer. Use the info at your own peril. Picked up 2 Infractions because of disagreements. NOW reversed. W124 Keyless remote, PM for details. http://www.peachparts.com/shopforum/mercedes-used-parts-sale-wanted/334620-fs-w124-chasis-keyless-remote-%2450-shipped.html 1 X 2006 CDI 1 x 87 300SDL 1 x 87 300D 1 x 87 300TDT wagon 1 x 83 300D 1 x 84 190D ( 5 sp ) - All R134 converted + keyless entry. |
#5
|
||||
|
||||
As long as you're just replacing the O-ring, you can do it on the car without too much trouble. It is tight down there but you don't need too much room to pop the cover off. I ended up cutting a wooden dowel and lodged it in between the cover and the transmission tunnel to keep the cover depressed while prying out the clip.
Visually check the B2 piston while it is in there, as long as it isn't in pieces you're probably okay for now. If it is shifting ok then you are probably fine as well, but can't hurt to take a mirror and peer in there to make sure. If you were to replace this, you'd need to loosen some mounts and the driveshaft support bearing to shift the tranny over a few inches. Dieselgiant has a pretty good explanation of the o-ring replacement process, exactly the same problem that you are experiencing: http://www.dieselgiant.com/Mercedesb2pistonsealreplacementl.htm You won't have to pull the piston out.
__________________
TC Current stable: - 2004 Mazda RALLYWANKEL - 2007 Saturn sky redline - 2004 Explorer...under surgery. Past: 135i, GTI, 300E, 300SD, 300SD, Stealth |
#6
|
||||
|
||||
Dieselgiant's pictorial is pretty good.

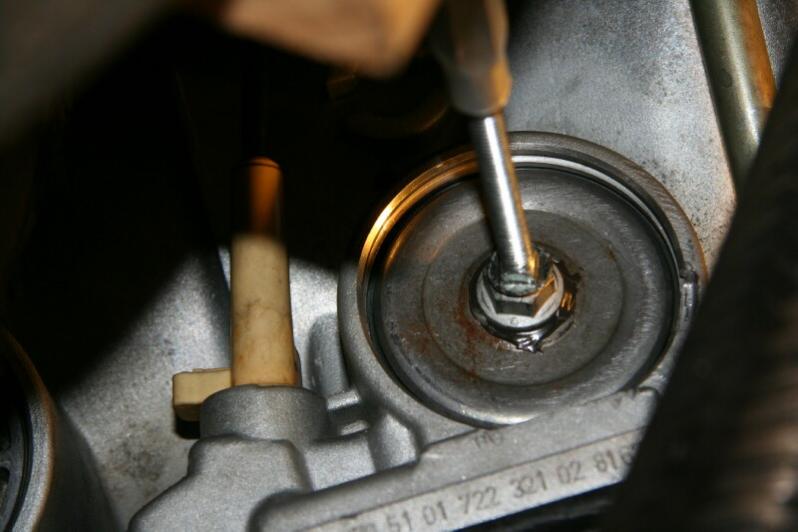

I had to replace the seal on my B1 cover, which is the other one closer to the dipstick tube. The springs behind it exert a LOT of force on the cover. I JB Welded a large nut on the center of the cover and used a turnbuckle with a carriage bolt on one end centered on the nut to get everything back in place again. I hope the B2 springs aren't that bad.
__________________
Michael LaFleur '05 E320 CDI - 86,000 miles '86 300SDL - 360,000 miles '85 300SD - 150,000 miles (sold) '89 190D - 120,000 miles (sold) '85 300SD - 317,000 miles (sold) '98 ML320 - 270,000 miles (sold) '75 300D - 170,000 miles (sold) '83 Harley Davidson FLTC (Broken again) :-( '61 Plymouth Valiant - 60k mikes 2004 Papillon (Oliver) 2005 Tzitzu (Griffon) 2009 Welsh Corgi (Buba) |
#7
|
||||
|
||||
My B2 wasn't too bad, you could definitely push the cover in with just your hand. It was slow though, the closest thing I can think of is pushing air out of an air mattress or pool float, it didn't take a lot of force, but you had to keep it on there for a minute to let it sink back. Lodging the piece of wood in there just allowed me to use 2 hands on the clip.
__________________
TC Current stable: - 2004 Mazda RALLYWANKEL - 2007 Saturn sky redline - 2004 Explorer...under surgery. Past: 135i, GTI, 300E, 300SD, 300SD, Stealth |
#8
|
|||
|
|||
You guys tips and insight is invaluable. Down on my back tonight.
BTW, where can I buy the o-ring off the shelf, from dealership or autoshop like Kragen?
__________________
Not MBZ nor A/C trained professional but a die-hard DIY and green engineer. Use the info at your own peril. Picked up 2 Infractions because of disagreements. NOW reversed. W124 Keyless remote, PM for details. http://www.peachparts.com/shopforum/mercedes-used-parts-sale-wanted/334620-fs-w124-chasis-keyless-remote-%2450-shipped.html 1 X 2006 CDI 1 x 87 300SDL 1 x 87 300D 1 x 87 300TDT wagon 1 x 83 300D 1 x 84 190D ( 5 sp ) - All R134 converted + keyless entry. |
#9
|
||||
|
||||
I bought my B1 O-ring from the dealer. It was $3.
__________________
Michael LaFleur '05 E320 CDI - 86,000 miles '86 300SDL - 360,000 miles '85 300SD - 150,000 miles (sold) '89 190D - 120,000 miles (sold) '85 300SD - 317,000 miles (sold) '98 ML320 - 270,000 miles (sold) '75 300D - 170,000 miles (sold) '83 Harley Davidson FLTC (Broken again) :-( '61 Plymouth Valiant - 60k mikes 2004 Papillon (Oliver) 2005 Tzitzu (Griffon) 2009 Welsh Corgi (Buba) |
#10
|
|||
|
|||
Fixed the transmission leak. Bought the O-ring from dealership but he gave me the wrong one. It was too small. I needed to take the B2 cover plate to the dealership to show them before they came up with the right O-ring.
BTW: the old one must be the original one as it was brittle when I removed it. Thanks for the experts in this forum.
__________________
Not MBZ nor A/C trained professional but a die-hard DIY and green engineer. Use the info at your own peril. Picked up 2 Infractions because of disagreements. NOW reversed. W124 Keyless remote, PM for details. http://www.peachparts.com/shopforum/mercedes-used-parts-sale-wanted/334620-fs-w124-chasis-keyless-remote-%2450-shipped.html 1 X 2006 CDI 1 x 87 300SDL 1 x 87 300D 1 x 87 300TDT wagon 1 x 83 300D 1 x 84 190D ( 5 sp ) - All R134 converted + keyless entry. |
#11
|
||||
|
||||
Good to hear! Though I would not consider myself an expert by any means
__________________
TC Current stable: - 2004 Mazda RALLYWANKEL - 2007 Saturn sky redline - 2004 Explorer...under surgery. Past: 135i, GTI, 300E, 300SD, 300SD, Stealth |
#12
|
||||
|
||||
Quote:
