Someone made a mistake when adjusting the valves? Why did you do the compression check? Was it missing or running poorly?

__________________
1977 300d 70k--sold 08
1985 300TD 185k+
1984 307d 126k--sold 8/03
1985 409d 65k--sold 06
1984 300SD 315k--daughter's car
1979 300SD 122k--sold 2/11
1999 Fuso FG Expedition Camper
1993 GMC Sierra 6.5 TD 4x4
1982 Bluebird Wanderlodge CAT 3208--Sold 2/13

If sure he didn't mean that you can take the pistons out the bottom!

Head's off..

I'm happy. Pistons look pretty good, cylinders show no signs of wear. As in, I can still see honing marks in the cylinders.

Intake looked pretty clogged.. lots of crud, particularly at the end of the manifold around #5.

Pictures in the morning, then the head goes to the shop Monday.

__________________
'82 300SD 351k

Are you deliberately avoiding any statement about visible evidence of valve problems?

__________________
1977 300d 70k--sold 08
1985 300TD 185k+
1984 307d 126k--sold 8/03
1985 409d 65k--sold 06
1984 300SD 315k--daughter's car
1979 300SD 122k--sold 2/11
1999 Fuso FG Expedition Camper
1993 GMC Sierra 6.5 TD 4x4
1982 Bluebird Wanderlodge CAT 3208--Sold 2/13

Not particularly - my wife called me late for dinner as I was posting that.

It was about an hour after sunset by the time I got the head off, but I did get the valves out of #5.

Exhaust valve looked ok, but there was thick carbon all around the back side of the intake valve. I'll post up pictures in the morning, my camera does very poorly in low light.

__________________
'82 300SD 351k

Sounds like a tight valve.

__________________
[SIGPIC] Diesel loving autocrossing grandpa Architect. 08 Dodge 3/4 ton with Cummins & six speed; I have had about 35 benzes. I have a 39 Studebaker Coupe Express pickup in which I have had installed a 617 turbo and a five speed manual.[SIGPIC]

..I also have a 427 Cobra replica with an aluminum chassis.

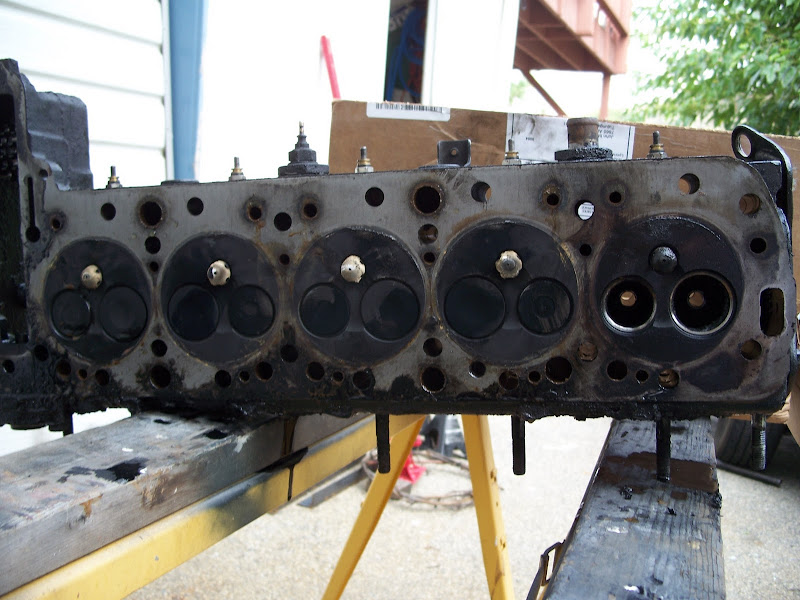

Pictures are up, full gallery is on picasa here:
Benz Head Removal

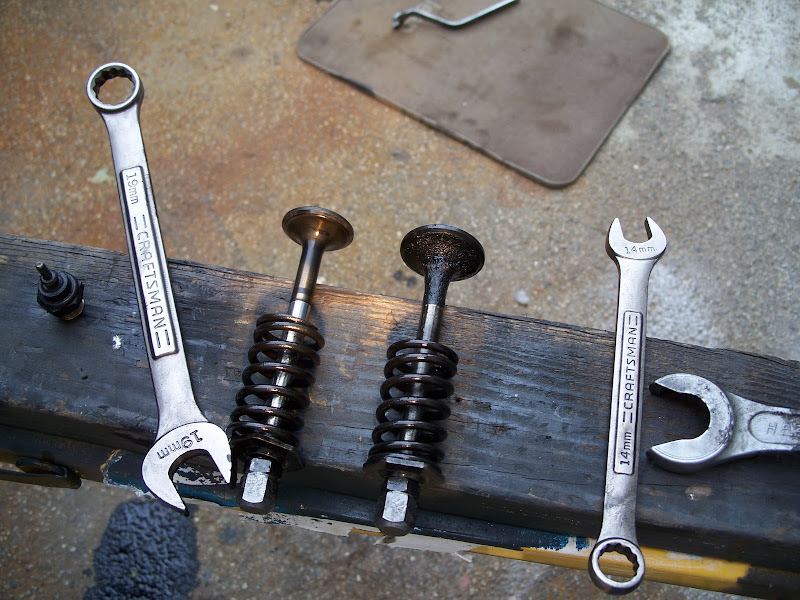

So, I've never seen a burnt exhaust valve, but I don't think this valve was burnt.



The intake valve, however.. had some large chunks of carbon which fell out when I removed it.

Hard to see in the pictures, but cylinders #2 & 3 still showed honing marks. I couldn't figure out a way to safely rotate the engine off TDC, so all I can see is the top third of the #5 cylinder, and none of #1. But I've seen scored cylinders, and these look pretty good.

I haven't a lot of experience with internal engine work. The only other time I had a head off a 617 was on a motor with a blown piston (#5 coincidently) that I was breaking up for pieces.

__________________
'82 300SD 351k

I'm thinking there may have been a possible head gasket leak to the oil gallery.

__________________
'82 300SD 351k

You're right. Something looks awry with the headgasket. Not sure how that would have shown up in a leakdown test.

__________________
1977 300d 70k--sold 08
1985 300TD 185k+
1984 307d 126k--sold 8/03
1985 409d 65k--sold 06
1984 300SD 315k--daughter's car
1979 300SD 122k--sold 2/11
1999 Fuso FG Expedition Camper
1993 GMC Sierra 6.5 TD 4x4
1982 Bluebird Wanderlodge CAT 3208--Sold 2/13

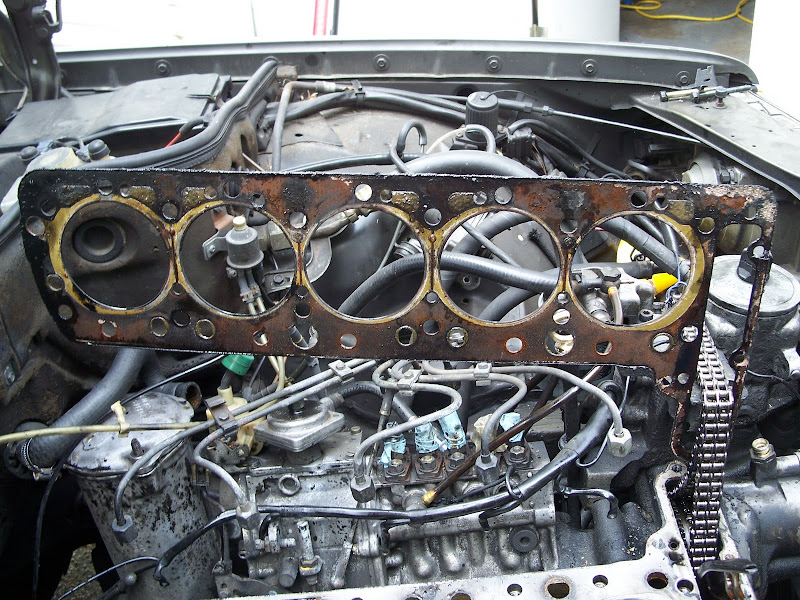

Pic 13, looks like it has been blowing at 6 o clock and 7 o clock
