87 300TD and a 2pc fan shroud question
Ok, so I have a 1pc fan shroud on my 87 300TD, its a PITA to do anything on the front of the engine with a 1pc shroud. I went ahead and bought a 2pc shroud... tried to install it WITH the fan in place... and it seems there is NO WAY I am able to fit the SHROUD in there without removing the FAN, which defeats the purpose of having a 2pc shroud... and yeah... I did remove the "ring" part of the shroud... and even that I couldn't get between the fan and the radiator...SO... is there a different FAN that comes with the 2pc shroud? i'm guessing not all 124 fans are the same.
__________________
85 190E 2.3(SOLD) 86 230E (-->300D) sold 87 300D (-->300TD) sold 68 250S w/ a 615 and manual tranny (RIP) 87 300TD (SOLD) 95 S280 "The KRAKEN" (Turbo 2.9 602 transplant) traded 86 190E 2.3... current project |
#2
|
||||
|
||||
I read in another thread that there are plastic versions/updates of the aluminum fan/clutch combo... what are the differences dimensionally? I'm interested about fan blade to radiator clearance. And if ever there's clearance difference, is it the fan OR the clutch that's responsible? I'd like to be able to install the 2pc shroud... but i need clearance badly. PITA to change the serp belt with the 1pc shroud.
__________________
85 190E 2.3(SOLD) 86 230E (-->300D) sold 87 300D (-->300TD) sold 68 250S w/ a 615 and manual tranny (RIP) 87 300TD (SOLD) 95 S280 "The KRAKEN" (Turbo 2.9 602 transplant) traded 86 190E 2.3... current project |
#3
|
||||
|
||||
I have that 2-piece shroud on my '87 TD also.
It is beneficial, you can remove the ring (relocate rearward and leave hanging on the fan) and easily get to the bolt on the front of the fan to remove the fan, where the 1-piece makes this much more difficult. Also check to be sure that your car hasn't hit a parking block and bent the bottom radiator mount upward/rearward even slightly, it doesn't take much to upset tolerances and even prevent the radiator from tucking neatly under the upper brace.
__________________
Gone to the dark side - Jeff |
#4
|
||||
|
||||
what he said.
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread "as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do! My drivers: 1987 190D 2.5Turbo 1987 190D 2.5Turbo 1987 190D 2.5-5SPEED!!! 1987 300TD 1987 300TD 1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere! |
#5
|
||||
|
||||
Also, I have never needed to remove any part of the fan or shroud to swap the serp-belt on a 124 300D/300TD. It should slip neatly between the fan and shroud, the easiest belt to replace of any car I've owned (except possibly '87 190Dt).
__________________
Gone to the dark side - Jeff |
#6
|
|||
|
|||
The plastic fan is WORSE!
Don't go there! Buy the super-stubby socket from MB. You can use it to break the bolt loose, then clamp it in a pair of vise-grips to spin the bolt the rest of the way out. Nasty job. Not much worse, overall, than R+I on the fan for the OM617, though!
Jay.
__________________
On the road, currently: '83 300D (German spec.) 168k mi. - - Wolfgang (tucked snugly away for the winter!) '87 300D 375k mi. - finally went over to "The Dark Side" '87 300TD 225k mi. Cannondale 66cm CAAD5 w/Campy/Jamis Aurora Hujsak Custom Fixie/Landshark Track Shark Custom/Ahearne Custom 29'er |
#7
|
||||
|
||||
Why bother? I simply use a standard L-shaped allen wrench (short side), with a 10mm slipped over the long end for additional leverage, ... a little push and it pops loose.
If you're worried about bending radiator fins with your knuckles, stick a piece of cardboard in there to protect it. I really don't see this operation as complicated nor difficult.
__________________
Gone to the dark side - Jeff |
#8
|
||||
|
||||
so the 2pc shroud can be used on the aluminum fan on an 87300TD? it seems impossible to do at the moment...
__________________
85 190E 2.3(SOLD) 86 230E (-->300D) sold 87 300D (-->300TD) sold 68 250S w/ a 615 and manual tranny (RIP) 87 300TD (SOLD) 95 S280 "The KRAKEN" (Turbo 2.9 602 transplant) traded 86 190E 2.3... current project |
#9
|
||||
|
||||
Plastic fan is worse? Quantify...
__________________
Cheers! Scott McPhee 1987 300D |
#10
|
||||
|
||||
look at the aluminum fan... notice the engine side blade tips they are all trimmed. the plastic fan does not have those tips trimmed, it will hit the air intake horn where it passes through the bulkhead and enters the air filter box.
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread "as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do! My drivers: 1987 190D 2.5Turbo 1987 190D 2.5Turbo 1987 190D 2.5-5SPEED!!! 1987 300TD 1987 300TD 1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere! |
#11
|
||||
|
||||
all three of my 87's now have the 2 piece shroud, and they all also have the aluminum fan. no issues at all.
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread "as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do! My drivers: 1987 190D 2.5Turbo 1987 190D 2.5Turbo 1987 190D 2.5-5SPEED!!! 1987 300TD 1987 300TD 1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere! |
#12
|
||||
|
||||
Mine too.
__________________
Gone to the dark side - Jeff |
#13
|
||||
|
||||
Shroud to fan clearance question
I have the 2-piece shroud with the 606-style plastic fan and clutch on my '87 300D Turbo (W124, OM603). Removal of the shroud is trivially easy and makes access to everything at the front of the engine so much nicer. The plastic fan doesn't even come close to hitting the air tube; I wonder if the original 603 clutch is thinner than the replacement 606 clutch? That would set the fan back and might cause the reported interference problem.

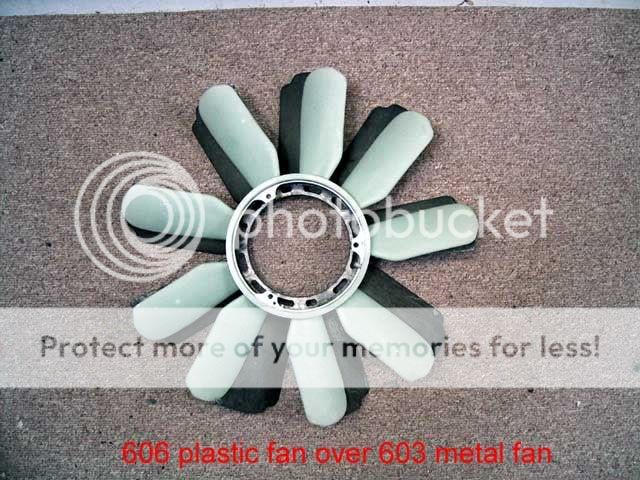

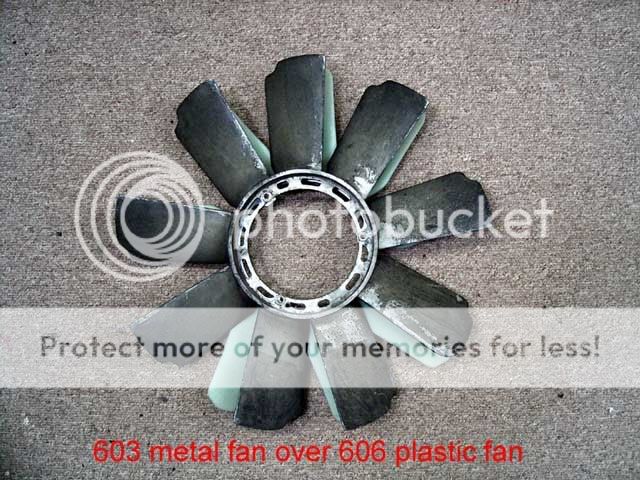

Edit: I'm now at the point in the new-to-me head installation process where I can photograph and measure the gap between the plastic fan and the accordion air tube. It measures 18 mm minimum or about three-quarters of an inch. I don't see how that can possibly be a problem. There must be some other factor affecting the clearance in the engine of the OP regarding this problem. Jeremy
__________________
"Buster" in the '95 Our all-Diesel family 1996 E300D (W210) . .338,000 miles Wife's car 2005 E320 CDI . . 113,000 miles My car Santa Rosa population 176,762 (2022) Total. . . . . . . . . . . . 627,762 "Oh lord won't you buy me a Mercedes Benz." -- Janis Joplin, October 1, 1970 Last edited by Jeremy5848; 04-28-2011 at 08:50 PM. Reason: Add photo |
#14
|
||||
|
||||
Fans
Quote:
In fact, I noticed no change in cooling -- neither better nor worse -- when I changed my '87 to the 606-style plastic fan and clutch. The major difference is in the weight -- the metal 603 fan weighs a couple of pounds, the 606 plastic fan only a few ounces. The clutches look identical, I don't know why the 603 clutch is so much more expensive; maybe Mercedes is running out of 603 clutches and knows it has the buyers by the short hairs. Jeremy
__________________
"Buster" in the '95 Our all-Diesel family 1996 E300D (W210) . .338,000 miles Wife's car 2005 E320 CDI . . 113,000 miles My car Santa Rosa population 176,762 (2022) Total. . . . . . . . . . . . 627,762 "Oh lord won't you buy me a Mercedes Benz." -- Janis Joplin, October 1, 1970 |
#15
|
||||
|
||||
Wonder why blades aren't evenly spaced, and spacing seems different b/w metal and plastic fans?
__________________
Cheers! Scott McPhee 1987 300D |
