#61
|
|||
|
|||
I should clarify one issue I misstated earlier. The TD tank is not really a two compartment tank except insofar as there is a little 'tank' around the column in the tank into which the strainer screws. This column stand up about 3/4" maybe and the fuel feed line comes from the front of the tank and inserts into the side of the column. So fuel comes into the strainer about 3/4" or so off the tank floor, and flows down into a little area in the column at the base of the strainer and the outlet hose sucks from there. If I can get a good picture, I'll post it.
__________________
1977 300d 70k--sold 08 1985 300TD 185k+ 1984 307d 126k--sold 8/03 1985 409d 65k--sold 06 1984 300SD 315k--daughter's car 1979 300SD 122k--sold 2/11 1999 Fuso FG Expedition Camper 1993 GMC Sierra 6.5 TD 4x4 1982 Bluebird Wanderlodge CAT 3208--Sold 2/13 |
#62
|
|||
|
|||
Picture of the TD strainer/pickup system:
__________________
1977 300d 70k--sold 08 1985 300TD 185k+ 1984 307d 126k--sold 8/03 1985 409d 65k--sold 06 1984 300SD 315k--daughter's car 1979 300SD 122k--sold 2/11 1999 Fuso FG Expedition Camper 1993 GMC Sierra 6.5 TD 4x4 1982 Bluebird Wanderlodge CAT 3208--Sold 2/13 |
#63
|
|||
|
|||
Since I now know that all the liquid crap is out of the tank, I may try adding a gallon or so of diesel, suck it through the hoses and see what it looks like before deciding whether to do more extensive cleaning and flushing.
__________________
1977 300d 70k--sold 08 1985 300TD 185k+ 1984 307d 126k--sold 8/03 1985 409d 65k--sold 06 1984 300SD 315k--daughter's car 1979 300SD 122k--sold 2/11 1999 Fuso FG Expedition Camper 1993 GMC Sierra 6.5 TD 4x4 1982 Bluebird Wanderlodge CAT 3208--Sold 2/13 |
#64
|
|||
|
|||

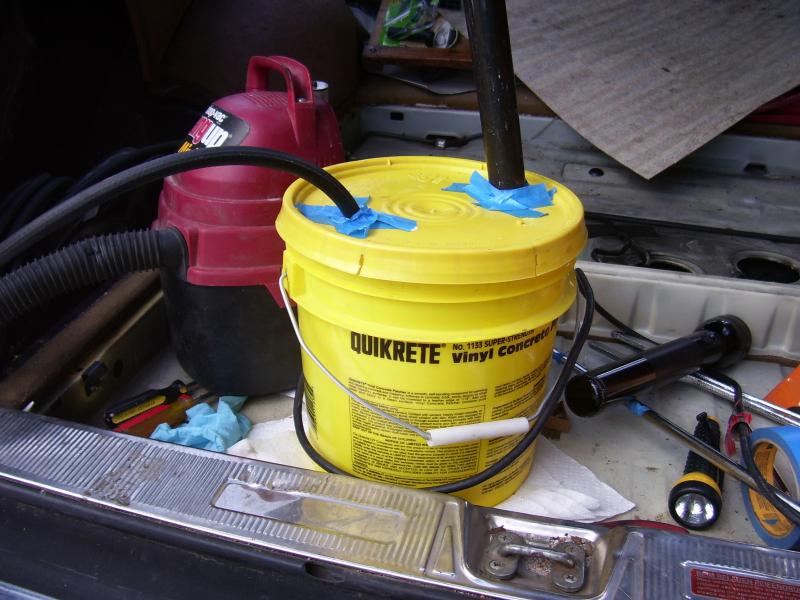

Pictures of the vacuum tool:
__________________
1977 300d 70k--sold 08 1985 300TD 185k+ 1984 307d 126k--sold 8/03 1985 409d 65k--sold 06 1984 300SD 315k--daughter's car 1979 300SD 122k--sold 2/11 1999 Fuso FG Expedition Camper 1993 GMC Sierra 6.5 TD 4x4 1982 Bluebird Wanderlodge CAT 3208--Sold 2/13 |
#65
|
|||
|
|||
Pictures of various containers of crap I've taken from the tank. The clear bottle to the far right is just diesel I poured into the bottle for comparison. The wine bottle I what I pulled from tank and lines today. Most of those bottles were just gray foamy stuff and the diesel rose to the top overnight.
__________________
1977 300d 70k--sold 08 1985 300TD 185k+ 1984 307d 126k--sold 8/03 1985 409d 65k--sold 06 1984 300SD 315k--daughter's car 1979 300SD 122k--sold 2/11 1999 Fuso FG Expedition Camper 1993 GMC Sierra 6.5 TD 4x4 1982 Bluebird Wanderlodge CAT 3208--Sold 2/13 |
#66
|
||||
|
||||
Transporting an unknown corrisive in a diesel can with no labelling. If that is the way his company operates then it might get ugly if OSHA or some other regulatory group ever visits.
__________________
Greg Schwall 1983 300SD - 465,000 miles |
#67
|
|||
|
|||
SInce the tank looked pretty decent, I put the strainer back in, added about 4 gallons of fuel and sucked a half gallon or so thru the feed and return lines. It looked like good diesel apart from little black flecks which I think are just junk from the tank/lines as a result of being disturbed so much. I hooked the feed and return lines back up and it seems to be running ok. I imagine I'm going to be changing a bunch of filters over the next few weeks but all signs of the contaminated **** are gone. The engine was running very smoothly, like it typically does on purge. Either it still had some purge in there, or that **** cleaned out the injectors and took away the slight nailing it had at idle
I'll change the oil tomorrow, add some more fresh diesel and see how it runs on the highway.
__________________
1977 300d 70k--sold 08 1985 300TD 185k+ 1984 307d 126k--sold 8/03 1985 409d 65k--sold 06 1984 300SD 315k--daughter's car 1979 300SD 122k--sold 2/11 1999 Fuso FG Expedition Camper 1993 GMC Sierra 6.5 TD 4x4 1982 Bluebird Wanderlodge CAT 3208--Sold 2/13 |
#68
|
||||
|
||||
kerry,
Have you managed to get the c##p to dissolve in anything? It looks like a water in oil emulsion. A bit like mayonnaise. That is a oil primary phase with microscopic drops of water dispersed through it. A little unleaded gas may dissolve the oil part & break the emulsion. You really need to be able to some how dissolve/dilute it & not just try & flush it as there is likely to be dead pockets holding some.
__________________
Grumpy Old Diesel Owners Club group I no longer question authority, I annoy authority. More effect, less effort.... 1967 230-6 auto parts car. rust bucket. 1980 300D now parts car 800k miles 1984 300D 500k miles 1987 250td 160k miles English import 2001 jeep turbo diesel 130k miles 1998 jeep tdi ~ followed me home. Needs a turbo. 1968 Ford F750 truck. 6-354 diesel conversion. Other toys ~J.D.,Cat & GM ~ mainly earth moving |
#69
|
||||
|
||||
Quote:
__________________
85 300D turbo pristine w 157k when purchased 161K now 83 300 D turbo 297K runs great. SOLD! 83 240D 4 spd manual- parted out then junked |
#70
|
|||
|
|||
Quote:
There was no liquid left in the tank (or lines?) when I got done cleaning them out. I had a good look at the bottom of the tank. There may have been some residual stuff in the secondary filter but I had pumped a lot of purge thru that so it couldn't have been much. When I was pumping, foamy **** came out for a while before it was replaced by purge. The neighbor suggested another possible chemical it could be after talking to another company employee. It might be an electrolyte used as a laxative!! They were experimenting with it at one time at the company.
__________________
1977 300d 70k--sold 08 1985 300TD 185k+ 1984 307d 126k--sold 8/03 1985 409d 65k--sold 06 1984 300SD 315k--daughter's car 1979 300SD 122k--sold 2/11 1999 Fuso FG Expedition Camper 1993 GMC Sierra 6.5 TD 4x4 1982 Bluebird Wanderlodge CAT 3208--Sold 2/13 |
#71
|
|||
|
|||
"With the injection line nuts loosened there is white foamy **** coming out around the injectors. Battery is getting dead from repeated cranking so I'm going to have to let it charge for a while."
Quote:
We are all rooting for you, Kerry! This is an amazing story... And it appears you are getting some good advice from the chemical guys in this forum. I wish I could be of some help, but this is out of my league. However, I do have my fingers crossed that you can somehow dodge the bullet on this one! Good luck!
__________________
[SIGPIC] Tom SE Connecticut 1975 W115 300D visit my blog: http://mercedesdieselrebuildingdiederich.blogspot.com/ |
#72
|
||||
|
||||
Quote:
On a serious note, it makes sense, often an oil (normally vegetable) of some description would work as a laxative. They could have added water with minerals (electrolyte) to the oil & emulsified it. The emulsion part appears to be very stable & you are only getting the diesel that has mixed up with it out. Emulsions can be hard to break, mixing with ULP may lower the viscosity of the oil in the emulsion and allow it to break. You only need a teaspoon of both mixed to see if it works, if it does its quite dramatic. Suddenly you will have a water phase & & oil phase. In off shore oil drilling they often need to break water in oil emulsions, they use all sorts of exotic compounds to do it.
__________________
Grumpy Old Diesel Owners Club group I no longer question authority, I annoy authority. More effect, less effort.... 1967 230-6 auto parts car. rust bucket. 1980 300D now parts car 800k miles 1984 300D 500k miles 1987 250td 160k miles English import 2001 jeep turbo diesel 130k miles 1998 jeep tdi ~ followed me home. Needs a turbo. 1968 Ford F750 truck. 6-354 diesel conversion. Other toys ~J.D.,Cat & GM ~ mainly earth moving |
#73
|
|||
|
|||
Been driving it on short trips around the neighborhood the last couple of days. Seems to be fine. Keeping my fingers crossed.
__________________
1977 300d 70k--sold 08 1985 300TD 185k+ 1984 307d 126k--sold 8/03 1985 409d 65k--sold 06 1984 300SD 315k--daughter's car 1979 300SD 122k--sold 2/11 1999 Fuso FG Expedition Camper 1993 GMC Sierra 6.5 TD 4x4 1982 Bluebird Wanderlodge CAT 3208--Sold 2/13 |
#74
|
|||
|
|||
No reason it should not continue to do well. You got rid of the contamination. Although since the chemical is heavier by weight than diesel fuel some may be still sitting in the secondary filter.
I might change that filter if not done already.Or al least remove it and drain it out possibly flushing it a couple of times with diesel fuel. Your friend must feel pretty bad about this. |
#75
|
|||
|
|||
You're right about the secondary filter. I will change it tomorrow. My friend feels really bad about it. It's a weird situation. This happened at a time when he was finally coming to realize what I've been telling him for a long time--that the company he works for and is invested in, is a scam/sham operation. He's completely broke, otherwise I think he would have had me take the car to a shop.
__________________
1977 300d 70k--sold 08 1985 300TD 185k+ 1984 307d 126k--sold 8/03 1985 409d 65k--sold 06 1984 300SD 315k--daughter's car 1979 300SD 122k--sold 2/11 1999 Fuso FG Expedition Camper 1993 GMC Sierra 6.5 TD 4x4 1982 Bluebird Wanderlodge CAT 3208--Sold 2/13 |
