Question What Are These Guide Rod Parts?

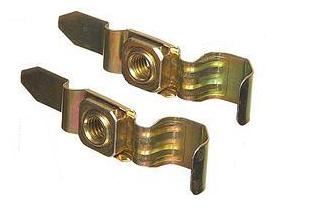

I got my parts to replace the guide rod mounts and the bushings. I'm trying to figure where these finger-like pieces get bolted to.
I can't find a post with photos of these pieces mounted on the bracket.


www.peachparts.com/shopforum/attachments/diesel-discussion/38053d1163497485-diy-bearing-bracket-guide-rod-mount

__________________
1984 MB 300SD Turbo
Reply With Quote
  #2
Old 11-04-2011, 04:19 PM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: Eastern TN
Posts: 20,841
They're nut plates. You slip them through the frame so there's a fresh nut to receive the bolt. Difficult to describe where they go without a picture and I don't have a picture. It'll make sense as you remove the old parts.

Sixto
87 300D
Reply With Quote
  #3
Old 11-04-2011, 04:26 PM
Ryan Z's Avatar
Registered User

Join Date: Jun 2007
Location: Eastern Pa
Posts: 264
OK. Thanks.
By the way, I think the guide mount shoud have a better seal. Looks too open for dirt and water to get in.
__________________
1984 MB 300SD Turbo
Reply With Quote
  #4
Old 11-04-2011, 04:34 PM
Chad300tdt's Avatar
Benzless Scoutmaster

Join Date: May 2007
Location: North Wales, PA
Posts: 4,001
DIY - w126 Guide Rod Mounts, Bushings and Susp. Bushings

The third pic in the thread shows me removing the bolt from that piece.

__________________
Chad
2006 Nissan Pathfinder LE
1998 Acura 3.0 CL
OBK#44
"Pleasure in the job puts perfection in the work." - Aristotle (384-322 B.C.)

SOLD
1985 300TD - Red Dragon
1986 300SDL - Coda
1991 - 300TE
1995 - E320
1985 300CD - Gladys
