  #1
Old 06-19-2012, 01:36 AM
Registered User

Join Date: Oct 2006
Posts: 18
Worn Out Hub?

I had a cyclical noise on my 83 300sd coming from the front drivers side wheel. The brakes looked good, so I have been focusing on the wheel bearings.

On beginning to work on removing the inner race, I noticed that the race could spin free in the hub. It still had to be punched out, but when seated against the hub it was loose enough to rotate.

I cooled the new race in the freezer, and used the old one to pound it in. It went in too easy, just a few taps around. The new one not only rotates but wiggles. It got a little more snug when it warmed up, but it still spins and has some play.

I assume this means the hub has been ground out by the old race, and that I need to get a new/used hub. I figured before I did that, I'd check here to verify that this is abnormal, and that there wasn't some simple fix, that I was ignorant of.

Any Advice?
Reply With Quote
  #2
Old 06-19-2012, 03:23 AM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 21,962
Abnormal. Some People have even had trouble tapping the Races out of the Hub due to them being tight.
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #3
Old 07-30-2012, 10:17 PM
t walgamuth's Avatar
dieselarchitect

Join Date: Apr 2005
Location: Lafayette Indiana
Posts: 31,206

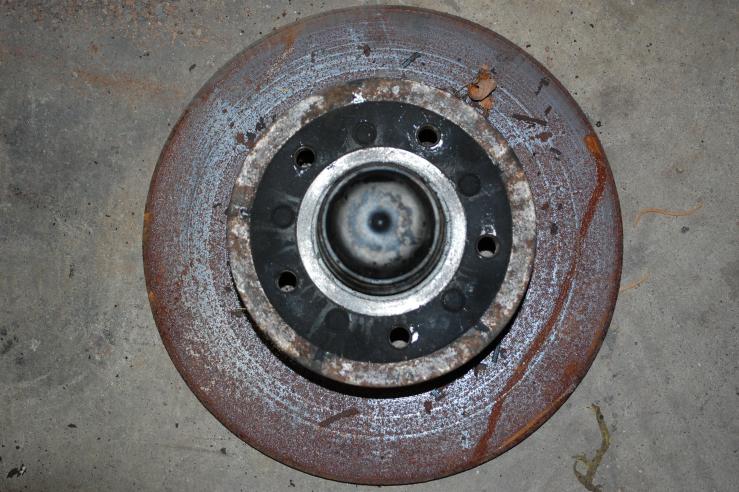

Here is a pic of a hub.
Attached Thumbnails
Worn Out Hub?-dsc_3196.jpg
__________________
Diesel loving autocrossing grandpa Architect. 08 Dodge 3/4 ton with Cummins& six speed; I have had about 35 benzes. I am finishing a 39 Studebaker Coupe Express pickup in which I have had installed a 617 turbo and a five speed manual....I also have a Lotus 7 replica autocrosser with a modified K20 Acura engine.
Reply With Quote
  #4
Old 07-31-2012, 01:54 PM
Registered User

Join Date: May 2007
Location: Out in the Boonies of Hot, Dry, Dusty, Windy Nevada
Posts: 9,585
I would say your Hub is now in the junk catagory.

If you have a PNP type yard, pull one off a wreck, I believe the 123 hubs are the same also.

You might luck out and find a set of (126) new Rotors to go along with the Hub. see new one`s every once in a while.

Note: Noticed you have a 83 126, the rotors to 85 would be the same. 86 to 91 they use a larger rotor, so would need to use a 15 inch or larger wheel. the Hubs should be the same.

Charlie
__________________
there were three HP ratings on the OM616...

1) Not much power
2) Even less power
3) Not nearly enough power!! 240D w/auto

http://i30.photobucket.com/albums/c3...ilys/boobs.gif


Anyone that thinks a 240D is slow drives too fast.

80 240D Naturally Exasperated, 4-Spd 388k DD 150mph spedo 3:58 Diff

We are advised to NOT judge ALL Muslims by the actions of a few lunatics, but we are encouraged to judge ALL gun owners by the actions of a few lunatics. Funny how that works
