How to test the washer level switch
This seemed like a fairly simple issue to me, but...

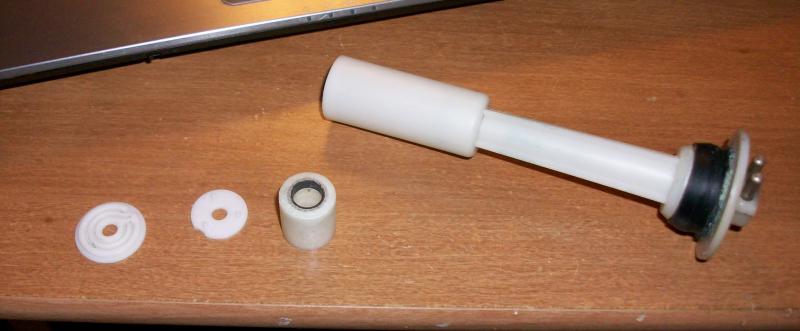

I want to test the windshield washer fluid level switch from my 86 300SDL. I have the switch out of the tank. It has two connections on top. When you turn it upside down, there is a clunk. I know from disassembling one that there is a float inside. I assumed that when the float drops to the bottom, there should be connectivity across the two connectors at the top, and when the float floated up, the connectivity was broken. I now have another used switch. Both my disassembled one and my "new" used one never show connectivity, whether right-side up or up-side down. Do I now have two failed switches? Or do I not understand how these work? Help appreciated. Just for fun, I have attached a photo of the disassembled switch. From left to right, the parts are 1) bottom plate, 2) fluid drain regulator, 3) float, 4) switch body. The float has what appears to be a ferrous-magnetic ring at the top which I assume causes the electrical field change necessary to signal low fluid level. The "fluid drain regulator" (my terminology) has a small circuitous channel to slow the fluid drain rate from the switch, much like what you find in the bottom of the fuel sender unit.
__________________
Mike Frederick 1986 300SDL, 240K+ miles 1985 300D KaliKar, 270K+ miles Last edited by mikeyfev1; 09-09-2014 at 11:41 AM. Reason: Grammar, as usual... |
#2
|
|||
|
|||
Good question I'm not certain if its a simple open close contact or other type of sensing unit. When I had replaced mine I believed I checked for open close contacts on the new one and could not see it functioning on the bench but once installed it worked just fine. It's been a number of years and my memory of that event is somewhat sketchy. Perhaps a wiring diagram may shed some light on the subject.
|
#3
|
|||
|
|||
Any other input?
Does anyone know how to test these short of putting it back in the tank, reconnecting the wires, filling the tank and looking at the idiot light?
__________________
Mike Frederick 1986 300SDL, 240K+ miles 1985 300D KaliKar, 270K+ miles |
#4
|
||||
|
||||
Switch in the air in its normal orientation - continuity, light on.
Switch in the air upside down - no continuity, light off. These do fail pretty regularly and are not that expensive (~$25). Hella is the OEM manufacturer. I would just get a new one. Note to all who follow who have a W210: They did a really interesting trick (?) with the coolant and washer tank sensors. Both sensors are wired in series to one analog input point on the front SAM module. There are series and shunt resistors inside each switch. The SAM reads the resistance of the chain of switches and resistors and can determine the various states of the system (i.e. normal, low coolant, low washer, or both). If one of the sensors has failed internally or is disconnected, the resistance value will be wrong and it will show "Display Defective" on the screen. The upshot of this point is that you cannot test a W210 sensor with a meter unless you know what the resistance values (both full and empty) are for a good switch.
