I'm getting mixed reports here, I can't figure out if it does or not. I am attempting to do the drain tube gaskets, pan gasket replacement in an effort to cut leaks and if this sucker is bad, I need to do it at the same time. Thing is, I can't seem to find them available either, so as suggested, I will have to buy a vacuum pump rebuild kit too.

Any thoughts here? TIA

err, turbo drain valve? There is no such part on the OM617 engines. Why would you need a vacpump rebuild kit? For the pump to block gasket? I was able to buy on separately if that's what you are after....

__________________
2004 F150 4.6L -My Daily
2007 Volvo XC70 -Wife's Daily
1998 Ford F150 -Rear ended
1989 J-spec 420SEL -passed onto its new keeper
1982 BMW 733i -fixed and traded for the 420SEL
2003 Volvo V70 5 Speed -scrapped
1997 E290 Turbo Diesel Wagon -traded for above
1992 BMW 525i -traded in
1990 Silver 300TE -hated the M103
1985 Grey 380SE Diesel Conversion, 2.47 rear end, ABS -Sold, really should have kept this one
1979 Silver 300D "The Silver Slug" -Sold

The kit includes a check valve that fits the turbo oil drain. There is supposed to be a check valve there - in the pan. AFAIK, the valve is not available by itself.

__________________
1991 F250 super-cab 7.3 IDI. (rebuilt by me) Banks Sidewinder turbo, hydroboost brakes, new IP and injectors.
2003 S430 - 107K
1983 300SD - Tanoshii - mostly restored ~400K+.
1983 300SD - Good interior. Engine finally tamed ~250K.
Monark Nozzle Install Video - http://tinyurl.com/ptd2tge

Crap. My vac pump is fine, seems crappy you have to buy that to get the check valve.

http://www.pelicanparts.com/cgi-bin/smart/more_info.cgi?pn=000-586-17-23-M22&catalog_description=

This looks like what I need; I see it has three check valves, and that there are only two needed for the pump.

Yeah. That is the only way I have heard of short from salvage parts.

__________________
1991 F250 super-cab 7.3 IDI. (rebuilt by me) Banks Sidewinder turbo, hydroboost brakes, new IP and injectors.
2003 S430 - 107K
1983 300SD - Tanoshii - mostly restored ~400K+.
1983 300SD - Good interior. Engine finally tamed ~250K.
Monark Nozzle Install Video - http://tinyurl.com/ptd2tge

The Check Valve on mine is for the Breather Drain not the Turbo Drain.

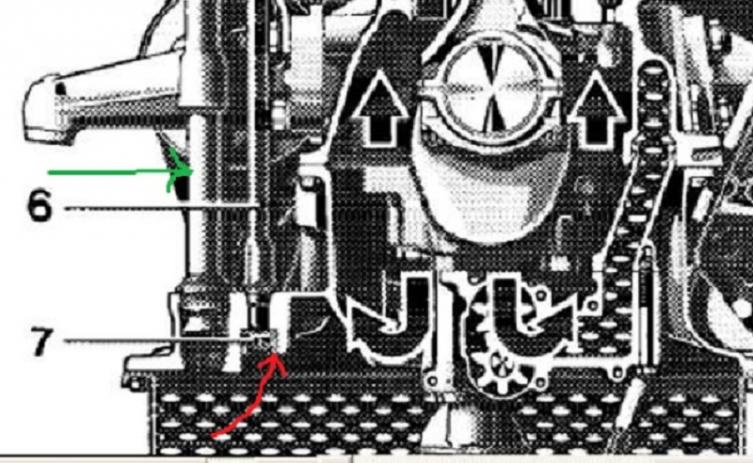

In the pic #7 points to the Check Valve at the bottom of the Breather Drain.

Earlier years don't have the Breather Drain at all.

Attached Thumbnails



__________________
84 300D, 82 Volvo 244Gl Diesel

I think you are right. Not sure why I got the two confused. The TURBO drain does not have a check valve. It is just a PITA to seal up.

Sorry for the confusion.

__________________
1991 F250 super-cab 7.3 IDI. (rebuilt by me) Banks Sidewinder turbo, hydroboost brakes, new IP and injectors.
2003 S430 - 107K
1983 300SD - Tanoshii - mostly restored ~400K+.
1983 300SD - Good interior. Engine finally tamed ~250K.
Monark Nozzle Install Video - http://tinyurl.com/ptd2tge

I think I got confused when he said drain tubes and went into thinking both were to be refurbished.

__________________
1991 F250 super-cab 7.3 IDI. (rebuilt by me) Banks Sidewinder turbo, hydroboost brakes, new IP and injectors.
2003 S430 - 107K
1983 300SD - Tanoshii - mostly restored ~400K+.
1983 300SD - Good interior. Engine finally tamed ~250K.
Monark Nozzle Install Video - http://tinyurl.com/ptd2tge

While you guys were posting I added a Picture.

__________________
84 300D, 82 Volvo 244Gl Diesel

Okay, so now I am confused... Is this something I should worry about since I will be in the vicinity? What parts are there in the breather assembly that might worsen leaking if I don't tend to them?

I appreciate your help, still learning about this car, and this engine.

The breather is sealed with an o-ring I believe that should be changed. I wouldn't bother with the check valve though.

__________________
2004 F150 4.6L -My Daily
2007 Volvo XC70 -Wife's Daily
1998 Ford F150 -Rear ended
1989 J-spec 420SEL -passed onto its new keeper
1982 BMW 733i -fixed and traded for the 420SEL
2003 Volvo V70 5 Speed -scrapped
1997 E290 Turbo Diesel Wagon -traded for above
1992 BMW 525i -traded in
1990 Silver 300TE -hated the M103
1985 Grey 380SE Diesel Conversion, 2.47 rear end, ABS -Sold, really should have kept this one
1979 Silver 300D "The Silver Slug" -Sold

Does anyone happen to have a part number? I -really- need to get my EPC running.
