Thats One Ugly OM603 #18 Head

Out of a '93 300SD. All the intake valves had been making slight contact with the pistons. #1 intake valve had made enough contact to scar the top of the piston. Amazingly enough, none of the valves are bent (according to the "spin them in a drill test). I'm waiting for a good deal on a complete, older OM603 engine. This is fun when it's just a project and not a necessity.

Attached Thumbnails
Thats One Ugly OM603 #18 Head-img_2115.jpg
Reply With Quote
  #2
Old 11-20-2016, 08:02 PM
Registered User

Join Date: Jan 2003
Location: Gastonia, NC
Posts: 1,354

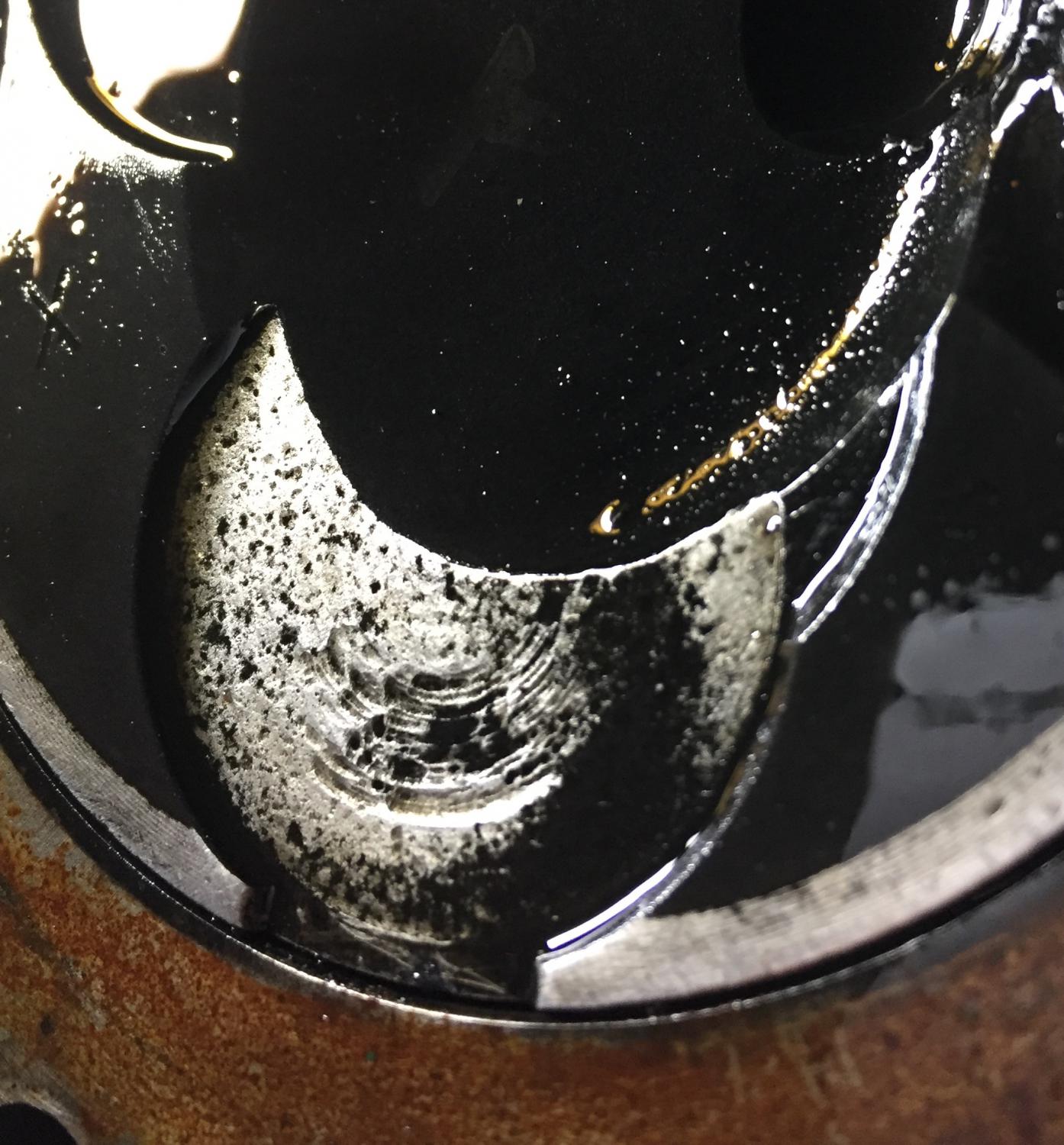

Pic of the #1 piston

Still haven't figured out how to post multiple pics in one post. Sorry.
Attached Thumbnails
Thats One Ugly OM603 #18 Head-img_2121.jpg
Reply With Quote
  #3
Old 11-20-2016, 08:28 PM
Registered User

Join Date: Dec 2006
Posts: 3,941
Why? Was the head shaved? Block decked?
Reply With Quote
  #4
Old 11-20-2016, 10:15 PM
Registered User

Join Date: Jan 2003
Location: Gastonia, NC
Posts: 1,354
Timing issue

At some point the timing had been tampered with. There were "homemade" timing marks made into the #1 cam bearing cap. There must have been some issue and a genius decided this was the way to fix it. The cam sprocket mark lined up with the homemade marks on the cam bearing cap. The cam sprocket was so worn that the teeth were just finely sharpened points. This is the second cam sprocket I've seen like that. The other was on an OM602 Turbo.

This engine ran. It ran smoothly with an occasional miss. It just had a metallic rattle. The smoke was very strong raw diesel and it was intermittent. Because of the smoke and a miss every so often, I put a dial gauge on the deck and measured the piston protrusion on #1 and I did detect a slight difference from the front of the piston to the back.

I'll just keep working on my other project Mercedes ('87 190D Turbo) and be on the lookout for an engine for the SD. My wife hit a deer with my '95 E300 so it's in the body shop at the moment, but the '93 300D is running smooth and sweet.
Reply With Quote
  #5
Old 11-23-2016, 03:02 PM
Hit Man X's Avatar
I LOVE BRUNETTES

Join Date: Sep 2004
Location: FUNKYTOWN
Posts: 9,087
Thumbs up

I have not seen anyone with an 18 in years. I had one for a long time, came into a fully rebuilt 17 for the right price... so I sold my 18.
__________________
I'm not a doctor, but I'll have a look.

'85 300SD 245k
'87 300SDL 251k
'90 300SEL 326k

Six others from BMW, GM, and Ford.

Liberty will not descend to a people; a people must raise themselves to liberty.
[/IMG]
Reply With Quote
  #6
Old 11-23-2016, 05:28 PM
bsmuwk's Avatar
124.051

Join Date: Jan 2009
Location: IL / WI
Posts: 1,013
This is why I'll usually have an upcharge if someone has "been in there before".

Usually a pain in my rear fixing what people "fixed".

__________________
Allen Kroliczek
Oak Grove Autosport | Oak Grove Autosport
01 G500, 82 300TD, quite a few more.....
